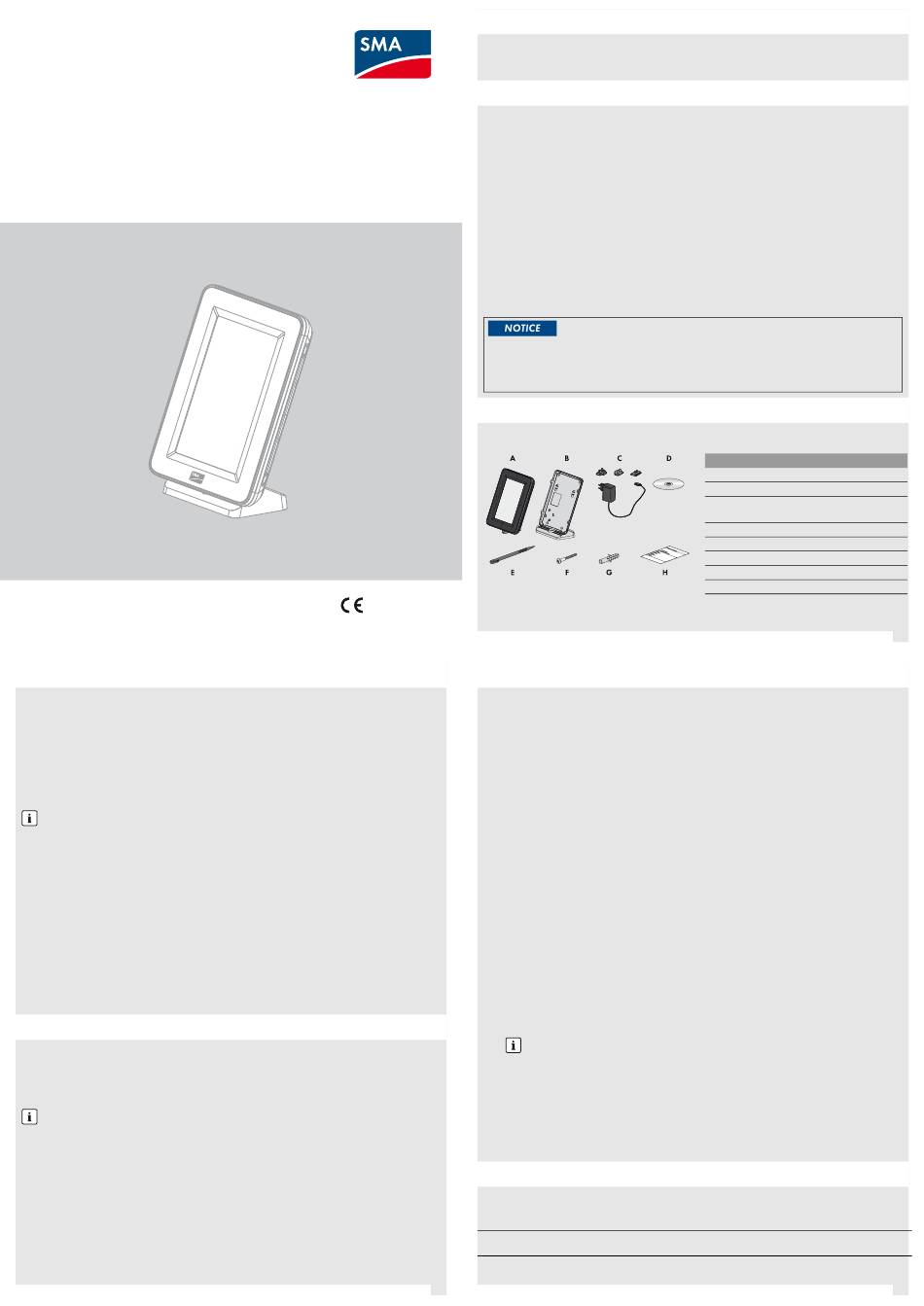

SMA SUNNY VIEW Guide Rapide

Quick Reference Guide
SUNNY VIEW
SunnyView-IS-en-fr-12 | A30851-X3151-A103-2-X143 | Version 1.2
4 MOUNTING
Requirements for the Mounting Location
☐ The mounting location must be indoors.
☐ The ambient temperature must be between 0°C (+32°F) and +40°C (+104°F).
☐ The mounting location must be protected against dust, moisture and corrosive substances.
☐ Devices that use the 2.4 GHz radio spectrum (e.g. microwave ovens) must be kept at a minimum distance
of 1 m (39.4 in.). This will prevent reduced connection quality and decreased data transfer rate.
☐ The distance between Sunny View and the devices that use SMA Bluetooth
be too great. In free-field conditions, the maximum range is 100 m (328 ft.). Depending on the ambient
conditions, this range may decrease.
Radio range indoors
The radio range indoors depends on absorbent materials (e.g. walls) between the devices with SMA
Bluetooth. In free-field conditions (i.e. without any obstacles), a radio range of up to 100 m (328 ft.) can
be achieved, whereas indoors it may be reduced to a few meters only. It is therefore not possible to
specify the indoor radio range precisely. Tip: To improve the radio range, use one or more SMA
Bluetooth Repeater devices as required.
Installing Sunny View
1. Push the tabletop stand onto the back of Sunny View.
2. Install Sunny View at a suitable mounting location.
Mounting Sunny View on the Wall
1. Select the location taking into consideration the requirements for the mounting location.
2. Mark and drill two drill holes (horizontal distance between the drill holes: 56 mm (2.2 in.), diameter of the
drill holes: 6 mm (0.2 in.)).
3. Place screw anchors in the drill holes and tighten the screws in the screw anchors.
4. Hang Sunny View onto the screws.
5 DETERMINING A FREE NETID
The NetID serves to distinguish PV plants with SMA Bluetooth that are in close proximity to each another. All
devices in a PV plant must have the same NetID. The NetID can be a number from 1 to 9 or a letter from A to F.
NetID 0 deactivates the Bluetooth function. NetID 1 enables a Bluetooth connection with one device. For PV
plants in Japan that are connected to an SMA CT Meter, you must select NetID 2 or higher.
A free NetID is a NetID that is used by no other PV plant with SMA Bluetooth in your vicinity.
Target Group
This task must only be performed by a qualified person.
Requirement:
☐ Devices in your PV plant with SMA Bluetooth must be turned off.
Procedure:
1. Commission Sunny View at the location of each device with SMA Bluetooth (see Section 6).
☑ During commissioning, Sunny View will search for all PV plants with SMA Bluetooth and display the
assigned NetIDs.
2. Select a free NetID and set it on all devices with SMA Bluetooth (see installation manual of the device).
1 INFORMATION ON THIS DOCUMENT
Validity and Target Group
This document is valid for device type "VIEW-10.GR1" (Sunny View). For type designation, see type label.
This document is intended for end users and qualified persons.
2 SAFETY
Intended Use
Sunny View is a communication product that receives, displays and stores data from up to twelve SMA inverters.
Sunny View is only suitable for indoor use.
For safety reasons, it is not permitted to modify the product or install components that are not explicitly
recommended or distributed by SMA* for the product. Unauthorized modifications and installations are forbidden
and will void all warranty claims. Any use of the product other than described in the Intended Use section does
not qualify as appropriate. The type label must remain permanently attached to the product. The data collected
by Sunny View on the amount of power generated by your PV plant may deviate from the energy meter data. The
data of Sunny View must not be used for billing purposes. Use Sunny View only in accordance with the enclosed
documentation and with the local standards and directives. Any other application can cause personal injury or
property damage.
•
Before installing or using the product, read and observe all instructions, safety precautions and
warning messages in this document and in the product documentation on the enclosed CD-ROM.
Safety Precaution
Preventing unauthorized access
Upon delivery, the PV plant uses the default password 0000. This means that unauthorized persons can gain
access to the data of the PV plant.
L
3 SCOPE OF DELIVERY
Check the delivery for completeness and any visible external damage. Contact your distributor if the scope of
delivery is incomplete or damaged.
ENGLISH
6 COMMISSIONING
Requirements:
☐ The same NetID must be set for all devices.
☐ All devices of the PV plant must be ready for operation.
☐ The PV plant must consist of a maximum of twelve inverters.
Procedure:
1. Connect the plug-in power supply to the grid connection of Sunny View.
®
Wireless Technology must not
2. Connect the plug-in power supply to the outlet.
3. Select the desired language and country.
4. Select [Next].
5. Select [Search].
6. If the NetID of your PV plant is not displayed, select [Repeat search].
7. Select the NetID of your PV plant and select [Next].
8. Enter the password of the PV plant for the user group User. Tip: The default password is 0000.
9. Select [Next].
10. For time display in 24-hour format, select the checkbox [24-hour format].
11. For automatic time synchronization with the Internet, select the checkbox [Automatic].
12. Set the time zone, date format and time and select [Next].
13. Select the checkboxes of the slides you want to display. Tip: Select the Info symbol to view additional
14. Select [Next].
7 CONTACT
If you have technical problems concerning our products, contact the SMA Service Line.
United States/Estados Unidos
Canada/Canadá
* toll free for USA, Canada and Puerto Rico / Llamada gratuita en EE. UU., Canadá y Puerto Rico
** international / internacional
*** toll free for Canada / gratuit pour le Canada
3
Sunny View is only to be operated using the supplied plug-in power supply and in the intended voltage
range (see user manual).
• Change the default password of the PV plant promptly (see user manual).
* SMA = SMA Solar Technology AG, SMA America LLC, SMA Solar Technology Canada Inc.
☑ The SMA logo appears.
☑ The following message appears Would you like to search for a new PV plant?
☑ Sunny View searches for all PV plants with SMA Bluetooth in its vicinity. All NetIDs found will be
displayed after the search.
☑ Sunny View displays the desired NetID.
✖ Does Sunny View not display the desired NetID?
• Reduce the distance between Sunny View and the device.
• Check the NetID setting of the devices.
☑ Sunny View connects with the PV plant and the password prompt appears.
☑ Sunny View connects with the PV plant.
WLAN connection required for automatic time synchronization
If you use automatic time synchronization with the Internet, you must set up a WLAN connection
after commissioning (see user manual).
☑ A list of slides is displayed.
information on the slide.
☑ The home slides appear.
SMA America, LLC
Rocklin, CA
SMA Canada, Inc.
Toronto
Position Quantity Designation
A 1 Sunny View
B 1 Tabletop stand
C 1 Plug-in power supply
with adapter
D 1 User manual CD
E 1 Stylus pen
F 2 Screw
G 2 Screw anchor
H 1 Quick reference guide
+1 877-MY-SMATech (+1 877-697-6283)*
+1 916 625-0870**
+1 877-MY-SMATech (+1 877-697-6283)***
