Controls And Connections; Lcd Display - Velleman CARDVD3 Mode D'emploi

• Keep all wiring away from heat sources.
• Hold the plug when plugging in or pulling out the AC or car adapter ; do not pull the power cord.
• If an adapter or power cord is damaged, take it to your dealer and do not try to repair it yourself.
3. General
• MACROVISION: this product incorporates copyright protection technology that is protected by method claims of
certain US patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright technology must be authorized by Macrovision Corporation and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
• FCC notice: This equipment has been tested and found to comply with the limits for a Class B digital device.,
pursuant with the FCC Rules, Part 15. These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
• FCC caution: To assure continued compliance, (example: use only shielded interface cables when connecting to
computer or peripheral devices), any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
• DOLBY: *manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks
of Dolby Laboratories. Confidential unpublished Works. 1992-1997 Dolby Laboratories, Inc. All rights reserved.

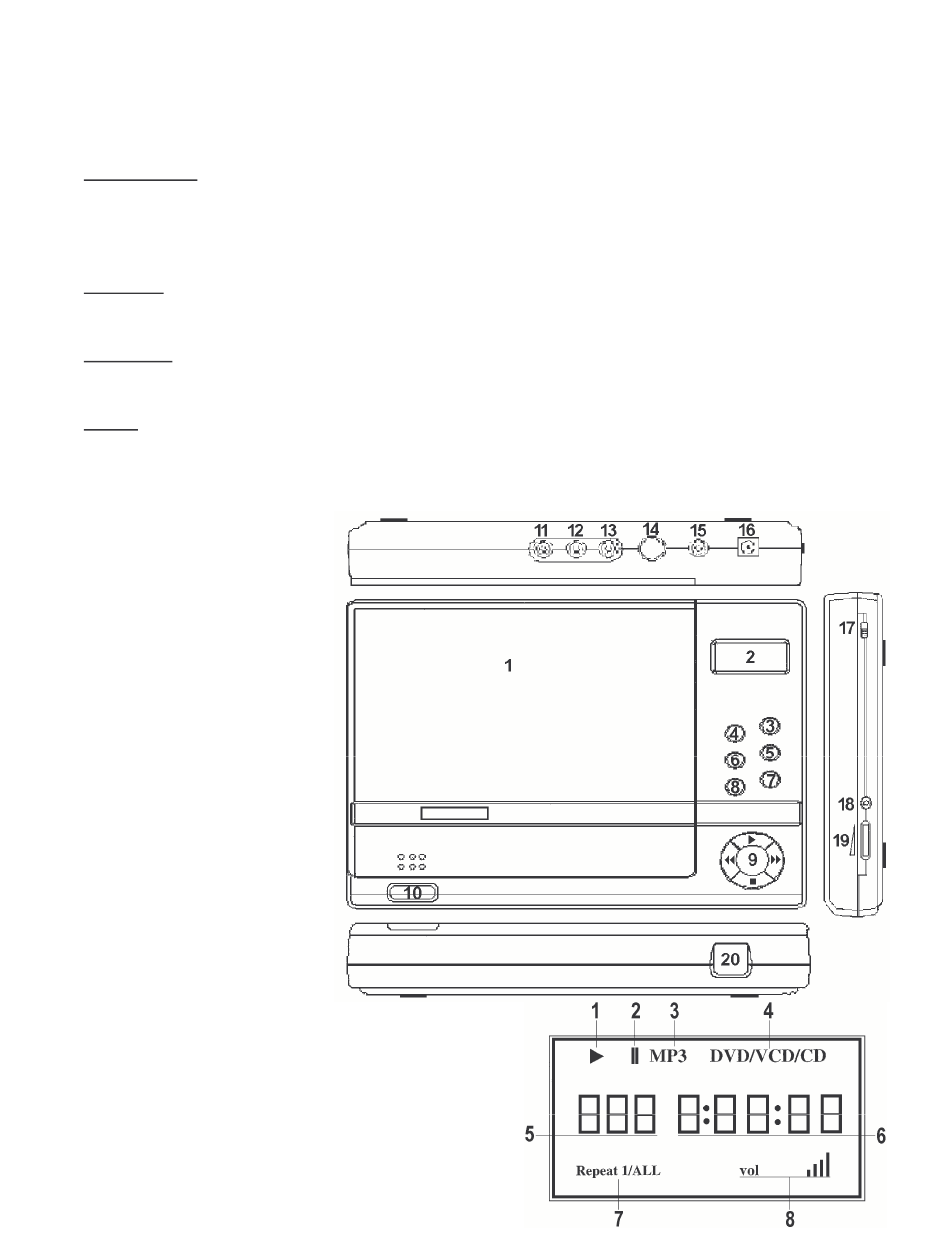

4. Controls and Connections

1. Disc compartment cover

2. LCD display

3. PBC (playback control)
4. Repeat
5. Pause
6. A-B
7. Next
8. Prev(ious)
9. Back / play / forward / stop
10. Open
11. Audio L output
12. Audio R output
13. Video output
14. S-Video output
15. Optical digital output
16. 12Vdc input
17. on/off button
18. Earphone socket
19. Volume control
20. Sensor remote control
5. LCD display
1. disc is playing
2. playback is paused
3. mp3 disc indicator
4. DVD, VCD or regular disc indicator
5. track or title number
6. track / disc playing time
CARDVD3
Fig. 1
Fig. 2
