Silva TIPI Mode D'emploi

FULL VERSION MANUAL
tipi
Art.no 37314-1 (Green)
Art.no 37314-2 (Orange)
3
5
1
0.5 s
2
7
2
4
6
1 s
1 s

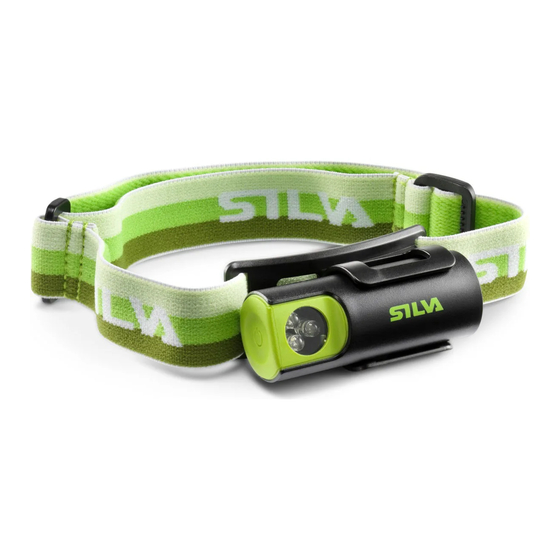

Thank you for choosing Silva Tipi headlamp. This compact
headlamp is designed for camping, hiking and DIY (Do It Yourself)
purposes where a compact and "easy to carry" product is essential.
The Tipi headlamp's special feature – the removable light unit –
makes it a versatile partner as it converts from a headlamp to a
torch (or back) within "a second".
PRODUCT OVERVIEW
The Tipi headlamp consists of the following parts:
• Light unit with battery compartment
• Headband bracket – where the light unit is attached
• Headband
• 3 pcs AAA batteries
• Quick guide
BEFORE USE
INSERT BATTERIES
1. Pull out the light unit from the light body
2. Insert the 3 pcs AAA batteries
3. Assemble by putting back the light unit into the light body
4. Ready!
ADJUST THE HEADBAND
The elastic headband is designed to give a comfortable fit. Adjust
the headband by moving the sliding buckle to fit it onto your head.
DURING USE
SWITCH ON YOUR HEADLAMP
On the side of the headlamp body there is a push button which
controls all light modes.
Each press on the button gives you the following light:
1. Turns the headlamp ON with the LEDs in maximum power.
2. Puts the headlamp in min mode
3. Starts over from 1
To turn OFF the headlamp; press and hold the button for 1 second.
The flash function, which is used to attract attention, is started
from OFF mode by pressing and holding the button for 1 second. To
turn OFF; press and hold the button for 1 second.
AFTER USE
MAINTENANCE
To make sure you get maximum performance from your Tipi head-
lamp, clean it regularly with a damp cloth.
Headband cleaning – wash in washing machine at 40º C.
If stored for a long period the batteries should be removed.
TECHNICAL SPECIFICATIONS
Weight (including batteries): 82g
Battery type: 3 pcs AAA Alkaline
Light distance (Max/Min): 25 m/12m
Lumen: 20
Burn time: (Max/Min/Blink): 40h/80h/120h
Water resistance: IPX4
Operative temperature range: -20 - +60 ºC
PROTECT THE ENVIRONMENT.
Headlamp and batteries should be recycled and must not be thrown
in the regular trash. Dispose these items in accordance with ap-
plicable local regulations.
WARRANTY
Silva warrants that, for a period of two (2) years, your Silva Product
will be substantially free of defects in materials and workmanship
under normal use. Silva's liability under this warranty is limited to
repairing or replacing the product. This limited warranty extends
only to the original purchaser.
If the Product proves defective during the Warranty Period please
contact the original place of purchase. Make sure to have your proof
of purchase on hand when returning the product. Returns cannot
be processed without the original proof of purchase. This warranty
does not apply if the Product has been altered, not been installed,
operated, repaired, or maintained in accordance with instructions
supplied by Silva, or has been subjected to abnormal physical or
electrical stress, misuse, negligence or accident. Neither does the
warranty cover normal wear and tear. Silva is not responsible for
any consequences, direct or indirect, or damage resultant from use
of this product. In no event will Silva's liability exceed the amount
paid by you for the product. Some jurisdictions do not allow the ex-
clusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. This Warranty is
valid and may be processed only in the country of purchase.
For more information please visit www.silva.se
Visit: www.silva/enviroment
for more information about the
Waste Electrical and Electronic
Equipment (WEEE) Directive.
