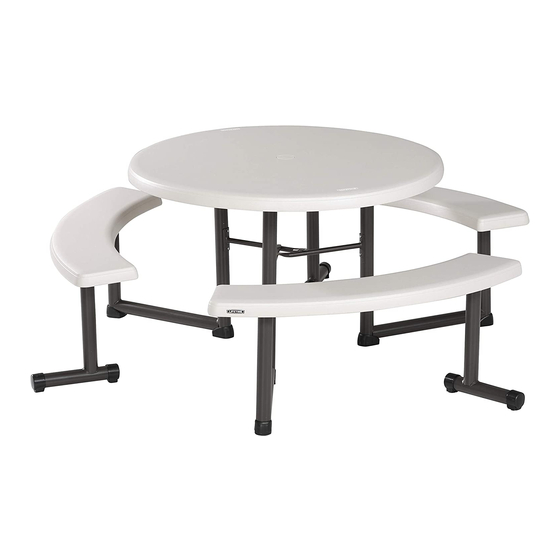

44" (1,12 m) ROUND
PICNIC TABLE
MODEL #60091
MODEL 60205
BEFORE ASSEMBLY:
• Assemble on a level surface
• 2 people are recommended for setup
• Videos and help guides available
Scan the code below to see how it all comes
together.
http://go.lifetime.com/rpicnicplaylist
For Customer Service in mainland Europe:
E-mail: cs@lifetimeproducts.eu
TOOLS REQUIRED
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
Live Chat: www.lifetime.com
(click on "Ask An Expert" tab)
Video Instructions:
www.youtube.com/lifetimeproducts
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
MODEL# AND PRODUCT ID
Model Number: 60205
Product ID:
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Parts Identifi er............................6
Table Top Assembly.....................7
Table Leg Assembly...................16
Bench Assembly.......................25
Additional Warnings..................32
Cleaning & Care........................35
Registration..........................36
Warranty...............................37
(you will need both when contacting us)
