Aritech ATS1840 Manuel D'installation

I
NTRODUCTION
It is an 8-way fuse board to provide for separate fused power supply
outputs. Fuse fail is indicated by a dedicated output that can be
connected directly to any zone on the ATS control panel (or
ATS1201 DGP.)
M L
OUNTING OCATION
The ATS1840 can be mounted into any ATS control panel or
ATS1201 DGP using the spacers provided.
M
OUNTING THE UNIT
Mounting the ATS1840 into the control panel
(ATS2000/3000/400/4500 series) or ATS1201 DGP
1. Place the clips in the square holes (4)(use metal pillars when
available).
2. Mount the ATS1840 using screws.
Connecting the ATS1840
1. Connect (auxiliary) power supply from the control panel or DGP
to +12V and 0V (J3).

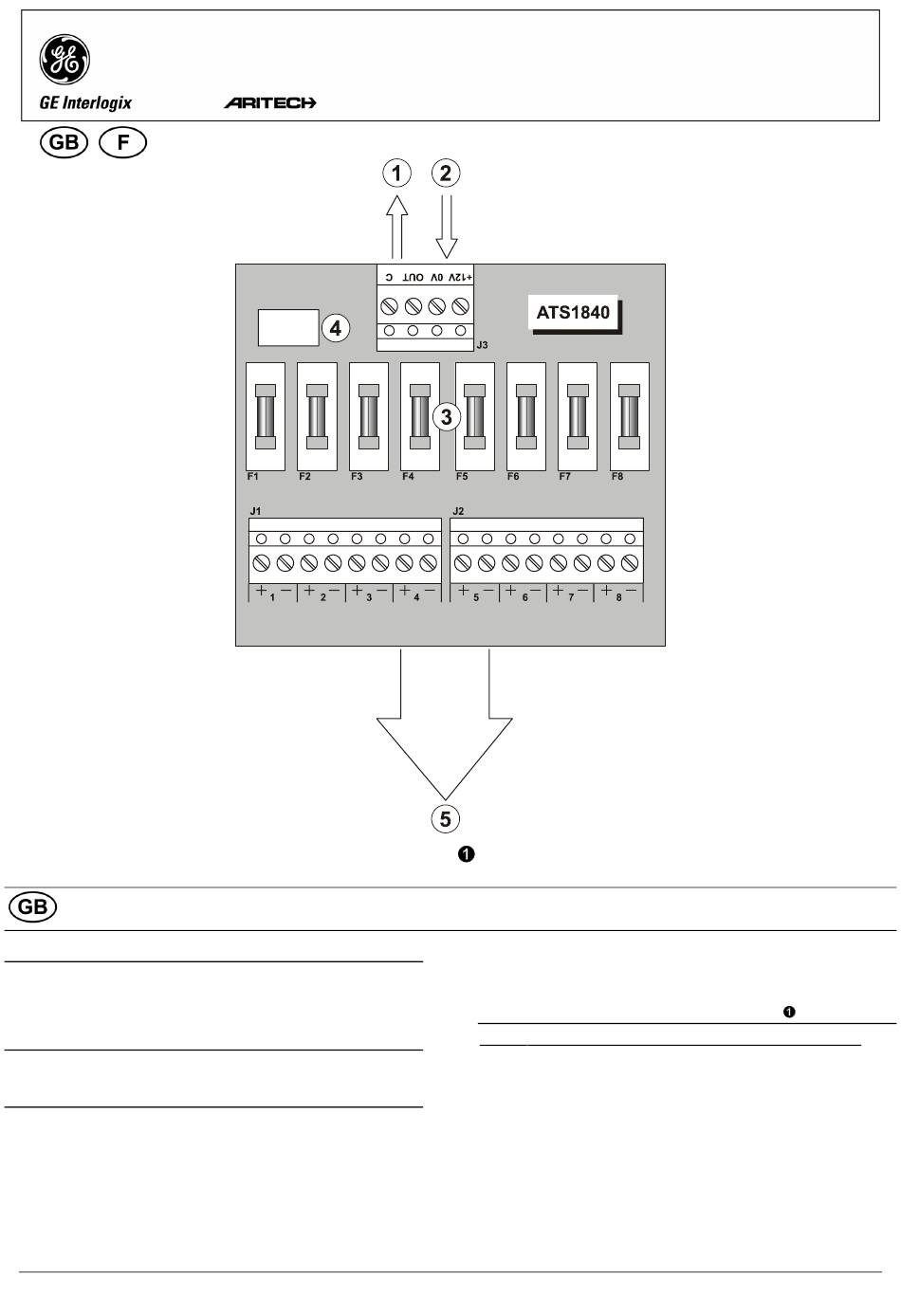

Fig.
2. Connect OUT and C (J3) to a zone input on the control
panel/DGP. C needs to be connected to C of the zone input.
3. Connect required fused power supply to power supply outputs 1
to 8 (J1/J2).
D
ESCRIPTION OF THE
No.
1
2
© 2003 GE Interlogix B.V.
All rights reserved
P (R
RODUCT
Description Function
Mains fail detection Connected to zone input on
control panel or DGP.
When no fuse fail present
output equals standard end-
of-line resistor value (4.7
kOhm)
In case of fuse fail present
output equals double end-of-
line resistor value (9.4
kOhm)
Power supply input. Connected to (auxilliary)
power output from control
panel or DGP.
ATS1840
Fuse Board
Fuse Board
. . )
EF TO FIG
1039577
07/2003
