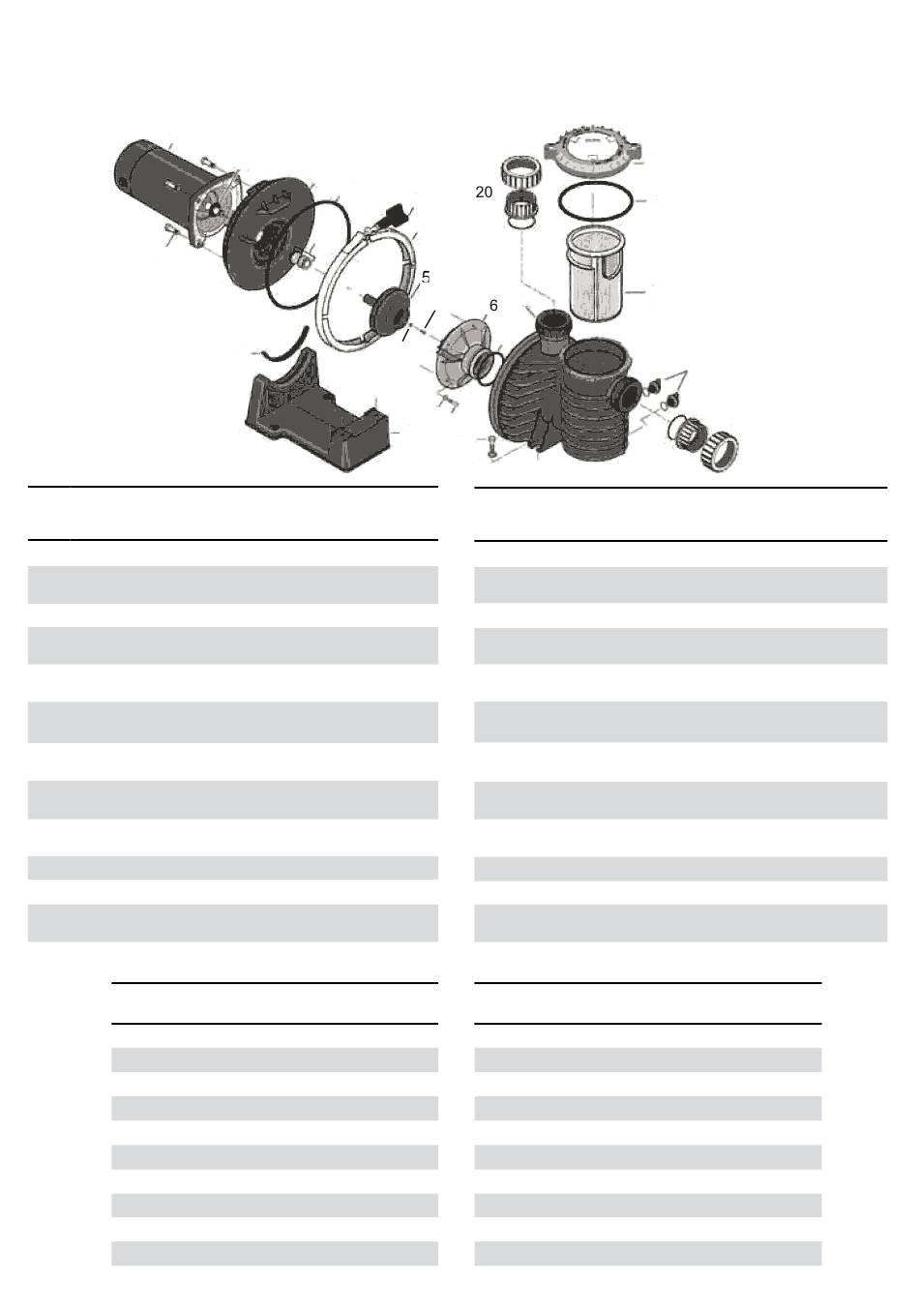

TECHNICAL DATA – TECHNISCHE DATEN - TECHNISCHE GEGEVENS
DONNÉES TECHNIQUES – DATOS TÉCNICOS – DATI TECNICI – Технические характеристики
(SW)5P6R
1
19
No.
Qty.
Ref. 5P6R / SW5P6R
1
1
see table below
2
1
C103-194PG /
C103-193PSSG
3
1
P-39006000
4
1
37400-0027S / U9-358SW
5a
1
see table below
5b
1
37337-6080
5c
1
35505-1426
6
1
C1 - 271P / C1 - 271PSS
7
1
U9-374
8a
1
C19-37A
8b
1
WC36-22
9
1
17307-0110W
10
1
17307-0111S
Model
No.
5P6RD-1
B0-55KW-1P4
5P6RD-3
B0-55KW-3P4
5P6RE-1
B0-75KW-1P4
5P6RE-3
B0-75KW-3P4
5P6RF-1
B1-10KW-1P4
5P6RF-3
B1-10KW-3P4
5P6RG-1
B1-50KW-1P4
5P6RG-3
B1-50KW-3P4
5P6RH-1
B2-20KW-1P4
5P6RH-3
B2-20KW-3P4
2
3
4
5c
16
Description
Motor IP55
Seal Plate
O-Ring
Mechanical Seal
Impeller
Impeller screw ONLY for
3-phase
Impeller screw O-ring
ONLY for 3-phase
Diffuser
O-Ring Diffuser
Clamp
Clamp Knob
Pump Body Assembly
(incl. 10, 11,12 and 13)
Trap Cover
Motor
Impeller
(1)
(5a)
C105-238PFM
C105-238PFAM
C105-238PGM
C105-238PGAM
C105-238PECAM
C105-238PECAM
C105-238PLBAM
C105-238PLBAM
C105-238PHAM
C105-238PHAM
8b
8a
a
9
5b
7
18
17
14
15
No.
Qty.
Ref. 5P6R / SW5P6R Description
11
1
35505-1440
12
1
C8-58P
13
2
U178-920P
14
1
C4-78P
14
1
C4-79P
15
2
U30-918SS
16
1
C35-43
16
1
C35-25D
16
1
C35-44
17
5
U30-922SS
18
5
U43-21SS
19
4
U30-74SS
20
1
PKG 188W
Model
SW5P6RD-1 B0-55KW-1P4
SW5P6RD-3 B0-55KW-3P4
SW5P6RE-1 B0-75KW-1P4
SW5P6RE-3 B0-75KW-3P4
SW5P6RF-1 B1-10KW-1P4
SW5P6RF-3 B1-10KW-3P4
SW5P6RG-1 B1-50KW-1P4
SW5P6RG-3 B1-50KW-3P4
SW5P6RH-1 B2-20KW-1P4
SW5P6RH-3 B2-20KW-3P4
10
11
12
13
20
O-Ring Cover
Trap Basket
Drain plug with o-ring
Pump base 0.55kW
Pump base 0,75kW ->
2,20kW
Screw
Motor Base Support 0.55kW
Motor Base Support 0.75kW
- 1,10kW
Motor Base Support 1,50kW
- 2,20kW
Screw
Lockwasher
Capscrew
Union Set 2" (63mm)
Motor
Impeller
(1)
(5a)
C105-238PFS
C105-238PFAS
C105-238PGS
C105-238PGAS
C105-238PECAS
C105-238PECAS
C105-238PLBAS
C105-238PLBAS
C105-238PHAS
C105-238PHAS
25
