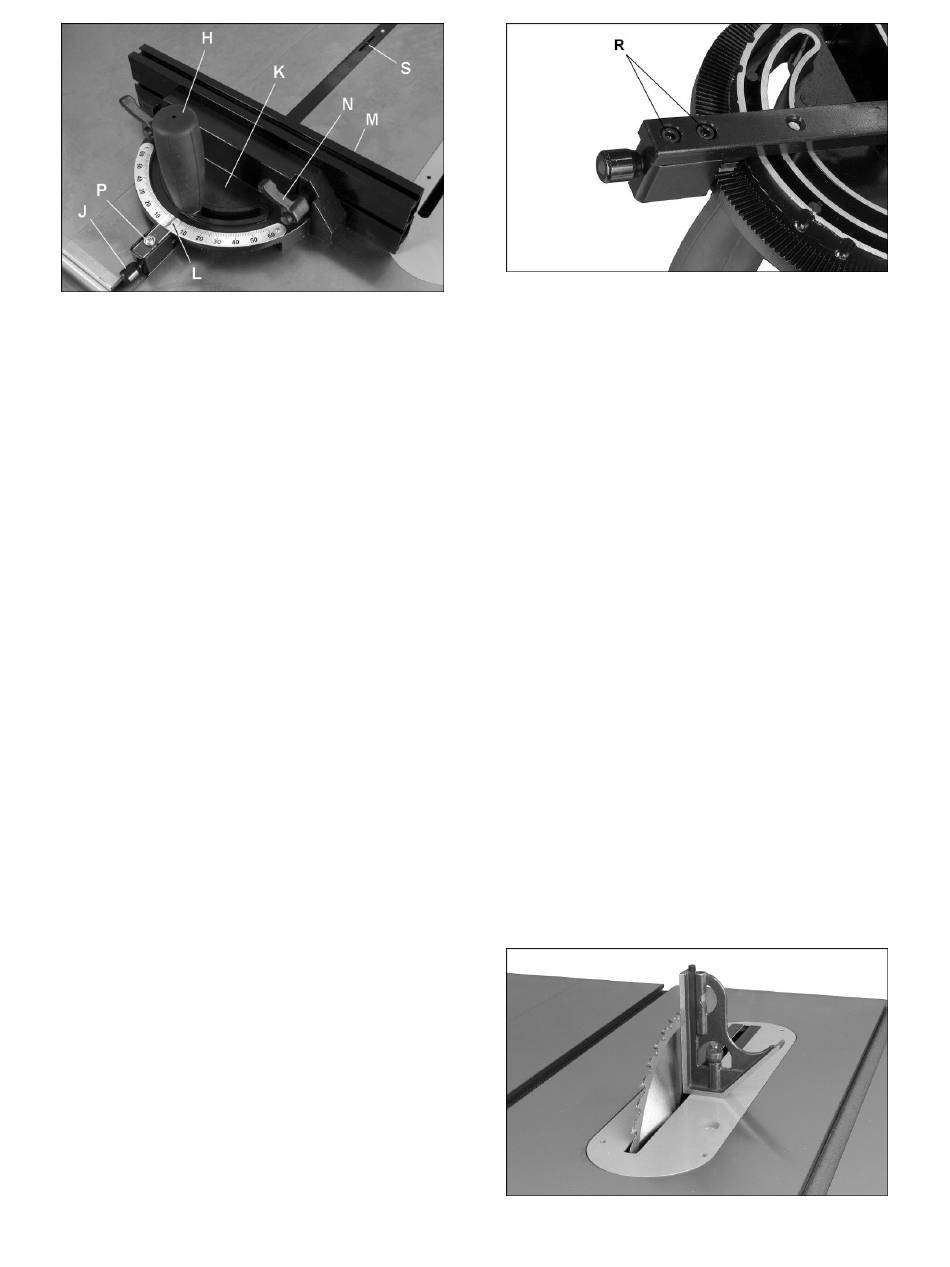

Figure 8-2
8.5.3 Miter gauge fence
The miter gauge fence (M, Figure 8-2) can be
adjusted by sliding to right or left, or removed
entirely.
To adjust, loosen two lock handles (N), slide fence
and retighten lock handles. Make sure end of
fence is not in blade path.
NOTE: The lock handles (N) are adjustable. Pull
out on handle, rotate it to different position, then
release, making sure it seats itself upon the pin.
To remove miter gauge fence, slide it completely
off and remove lock handles (N) and mounting
hardware.
8.5.4 Miter gauge calibration
1. Place miter gauge into table slot.
2. Set miter gauge at 90º to blade (0º setting on
scale) by loosening lock handle (H, Figure 8-
2), then pulling out spring-loaded knob (J) and
turning body (K) until 0º is indicated on scale.
3. Measure accuracy of miter gauge against slot
with a square.
If adjustment is needed:
4. Adjust body (K) until it is square (90º) to miter
slot.
5. Tighten lock handle (H).
6. Verify that scale indicator (L) reads 0º. If it
does not, loosen screw (P) and adjust
indicator (L) until it reads 0º. Retighten screw
(P).
7. If the above procedure does not satisfactorily
align the miter gauge, loosen two screws (R,
Figure 8-3) beneath mounting block and shift
block as needed. Retighten screws when
finished.
NOTE: The miter gauge bar has two slots with set
screws (S, Figure 8-2). Adjust these set screws to
eliminate any play between bar and miter slot.

8.6 Blade tilt stop adjustment

The stops for 90°, 45° blade tilt, and elevation
settings have all been factory set, and should
require no immediate adjustment. The settings
should be confirmed by the operator, however, and
especially if cuts become inaccurate. Both tilt stops
are located on the trunnion.
8.6.1 Tilt stop 90°
1. Disconnect machine from power source.
2. Make sure table insert has been leveled with
table surface (sect. 6.8).
3. Raise blade to highest position, and place a
square on table and against blade (Figure 8-
4). Make sure that a blade tooth does not
obstruct the actual reading.
4. Tilt blade with handwheel until square and
blade are flush.
5. If adjustment is required, loosen nut on 90°
stop screw (Figure 8-5) with 13mm wrench,
and turn screw to proper height. Verify setting
and retighten nut against trunnion.
6. Check pointer position on scale (Figure 8-5). If
needed, loosen screw and adjust pointer to
zero. Retighten screw.
