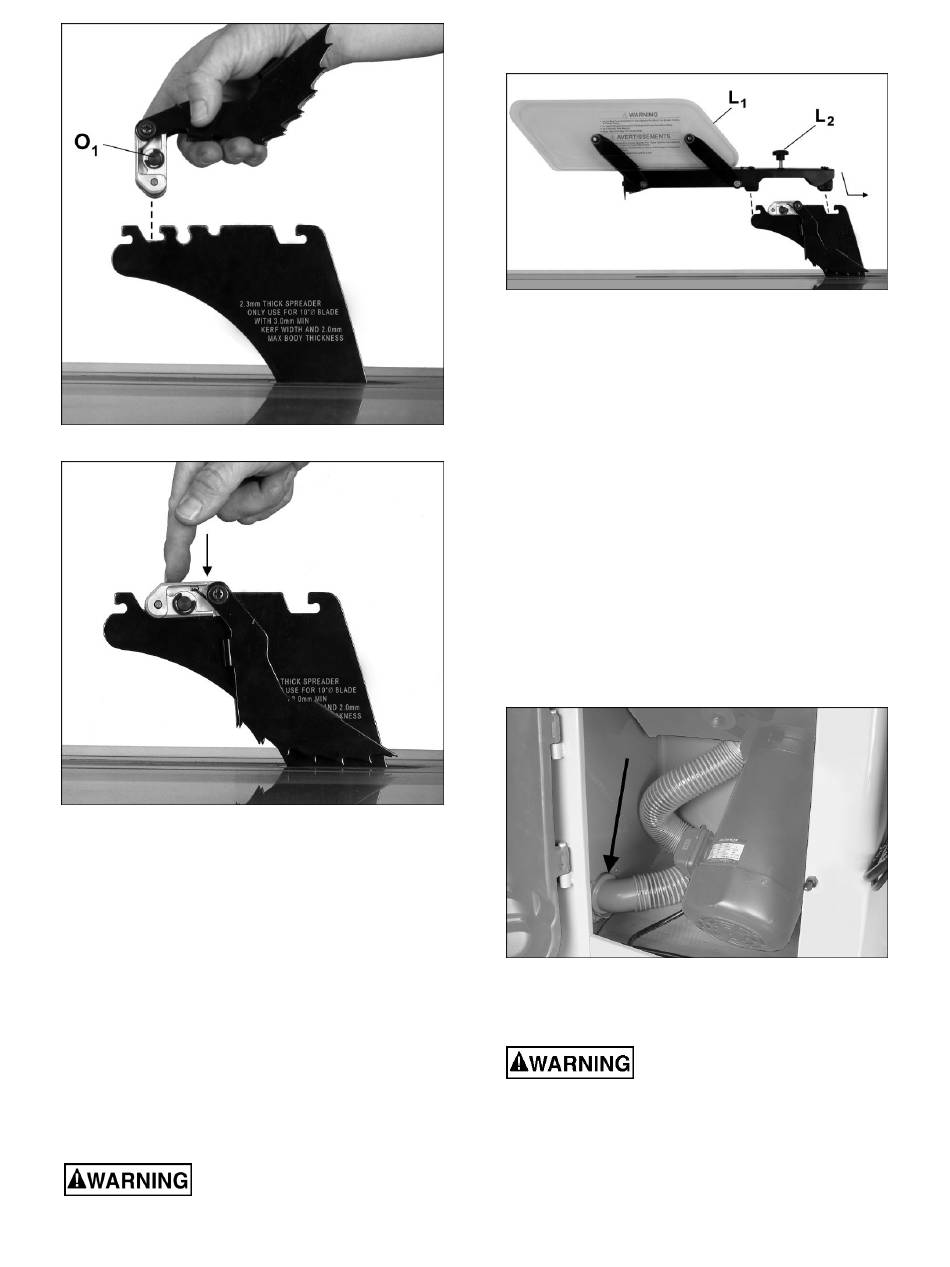

Figure 6-11
Figure 6-12

6.10.3 Blade guard

See Figure 6-13.
1. Push up guard leaves (E, Figure 6-12) until
they catch and hold on the peg (F).
2. Lower blade guard assembly onto riving knife
and push it backward to seat it.
3. Tighten knob (G).
4. Pull down guard leaves (E) and allow them to
drop to the table.
5. Reverse procedure to remove guard.
IMPORTANT: Knob (G) must be tightened before
operating saw with guard in place.
Guard, riving knife, and pawl
assemblies must be securely installed, and
leaves must be in contact with table, before
beginning any through-cutting operation.
The riving knife clamping base is adjusted by the
manufacturer and no further adjustment of blade
guard and riving knife assembly should be
necessary. However, proper alignment is very
important. Before operating table saw, read sect.
8.7, Riving knife alignment, to verify and follow
adjustment procedure if necessary.

6.11 Dust port

Use of a dust collection system (not provided) is
strongly recommended during table saw operation.
It will help keep the shop clean, as well as prevent
potential health issues due to dust inhalation.
Make sure internal hose is pushed into external
dust port (Figure 6-14). Attach hose from your dust
collection system to the 4-inch dust port at base of
saw, and secure with wire hose clamp (not
provided).

7.0 Electrical connections

Electrical connections must be
made by a qualified electrician in compliance
with all relevant codes. This machine must be
properly grounded to help prevent electrical
shock and possible fatal injury.
A power plug is not provided with the PM2000B.
You may either connect the proper UL/CSA listed
plug or "hardwire" the machine directly to your
14
Figure 6-13
Figure 6-14
