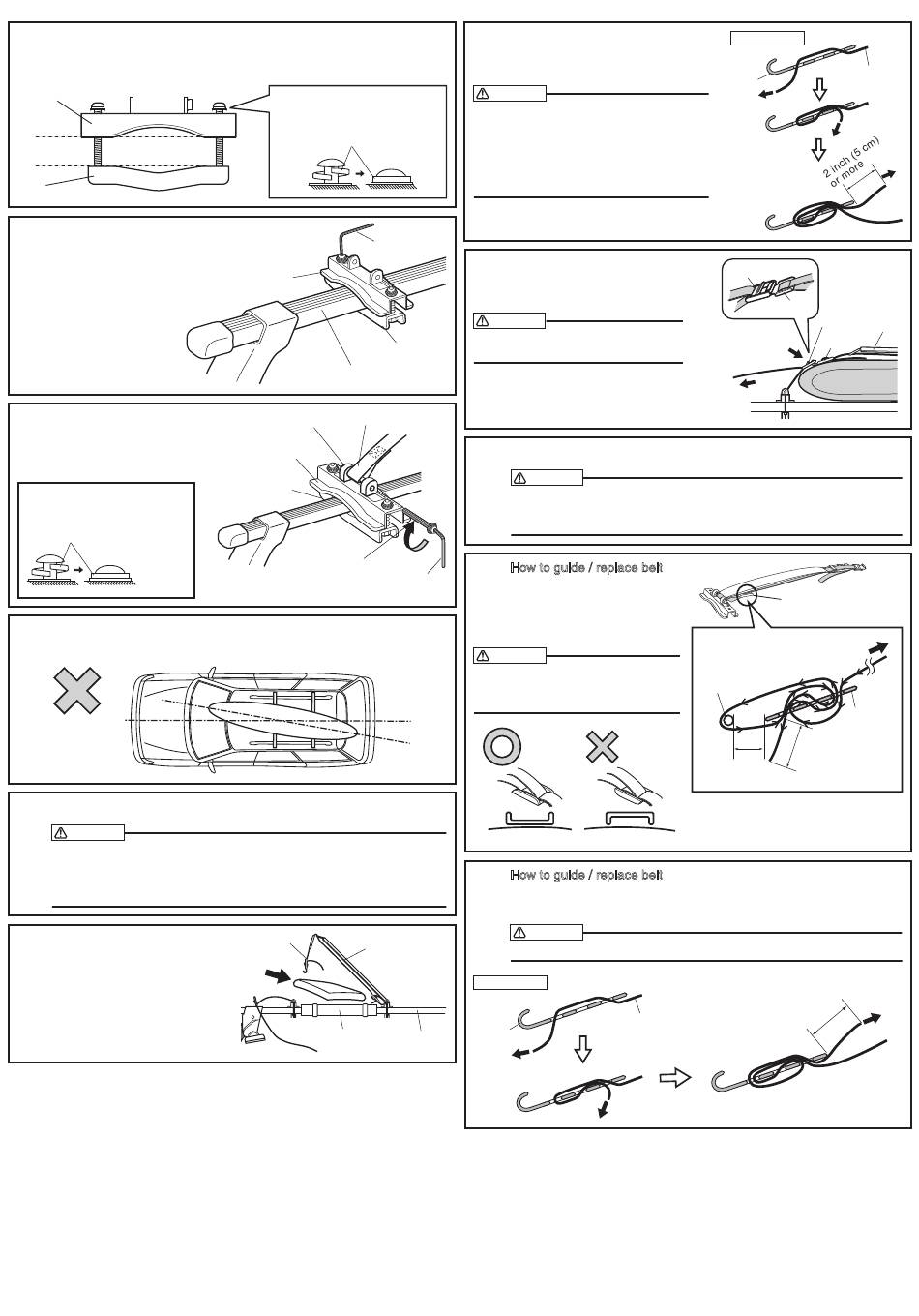

4
Tighten the bolts on each side evenly in order to parallel the Upper
plate and Lower plate.
Upper plate
Parallel
Lower plate
5
Install belt holder / lower plate at
position appropriate for board size.
Tighten same as the crane side.
6
Guide spacer through folded
end of belt and securely
tighten to belt holder with hex
bolt using hex wrench.
Tighten hex bolt further until
spring washer flattens.
Spring washer
7
Line up with the front rack when mounting the rear rack so that the
surfboard will be parallel to the vehicle when loaded.
8
Carry up to 3 short boards or 2 long boards / windsurf boards.
CAUTION
Maximum loading capacities may differ from OEM to after market
crossbars. Before installing, please confirm load capacities with the
owner's manual for OEM crossbars or Fit Guide for the after market
crossbars.
9
Load board.
Set INNO board protector
or other cushion material
on bar and place board
on top.
US
Tighten hex bolt further until
spring washer flattens.
Spring washer
Hex wrench
Belt holder
Lower plate
Bar
Folded end of belt
Spacer
Belt holder
Lower plate
Hex bolt
Hex wrench
Hook
Crane
Board
Board
protector
10
Adjust length of crane belt
according to board width and
number of boards to be loaded.
CAUTION
– Allow belt end to project 2" (5 cm) or
more from hook. If end section is short,
belt may come off and board may drop.
– Guide belt correctly by referring to
illustrations, in order to prevent board
from dropping
11
Attach buckle to hook and secure
board by pulling belt. Hold board
while belt is being pulled.
CAUTION
Do not overtension belts, since surf /
sail board may crack or deform.
12
Shake board to confirm it is held securely.
CAUTION
Before driving the vehicle, rock the attachment in the forward, back,
right and left directions to ensure that there is no looseness in any of
the 10 mounting Hex bolt. Retighten any loose screw.
13
How to guide / replace belt
Prepare new belt set. Pass belt
on crane side through adjuster
and guide it around rivet at
base of crane.
CAUTION
Pay attention to adjuster orientation.
Installing the adjuster upside down,
this will cause damage to surfboard.
Board
14
How to guide / replace belt
Guide longer belt end through crane tip and through hook. Follow
adjustment procedure of belt length.
CAUTION
Board may drop if belt is guided incorrectly.
Hook section
Hook
Bar
- 2 -
Hook section
Hook
Buckle
Hook
Hold board
Pull
Adjuster
Rivet at base
of crane
Set as close
as possible
Board
2 inch (5 cm)
or more
Belt
Belt
Buckle
Crane
Hook
Board
To crane tip
Adjuster
Approx. 2 to 4 inch
(5 to 10 cm)
