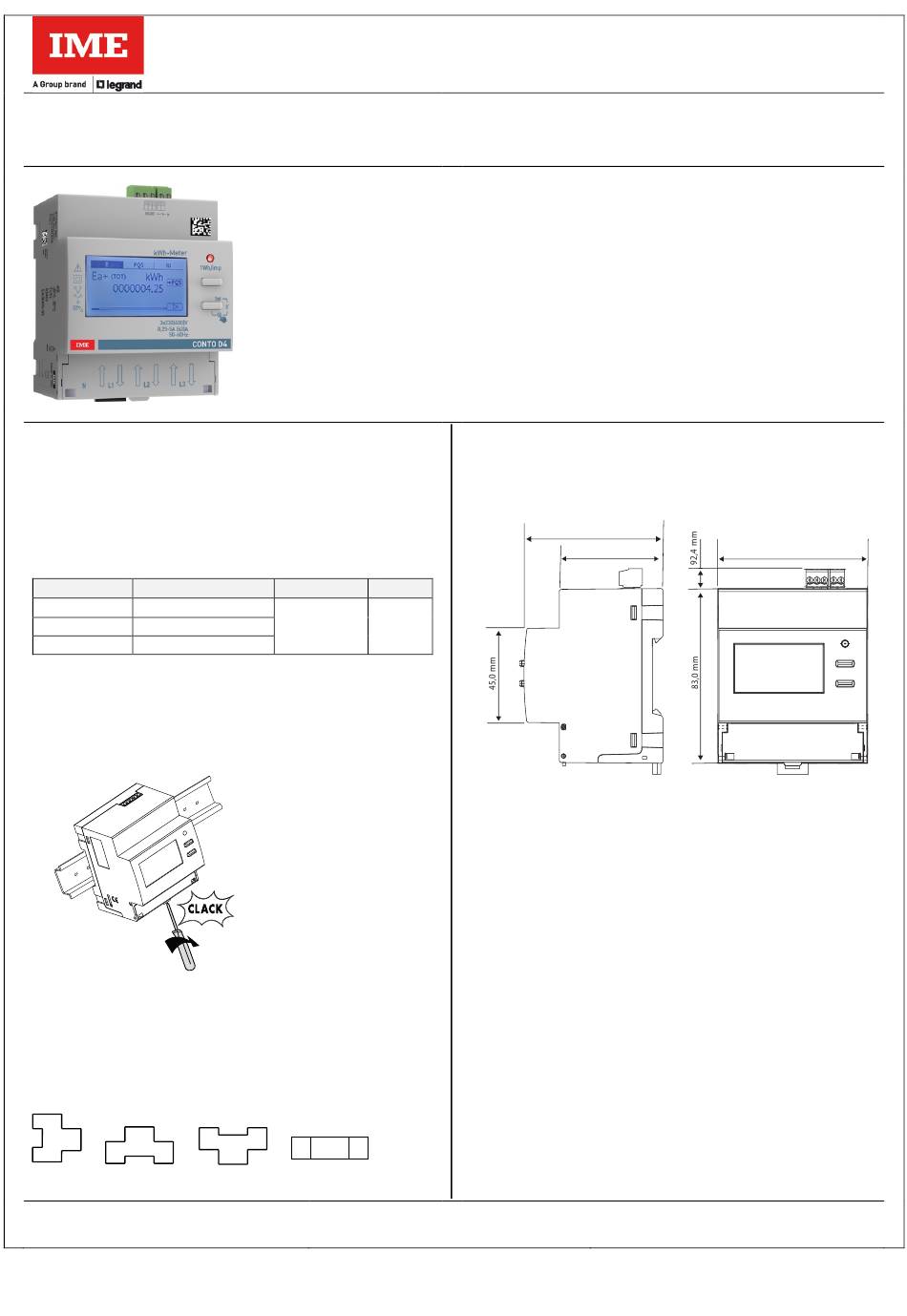

63A energy meter,
direct connection

1. USE

Three-phase active and reactive energy meter with direct
connection. The device, in 4 DIN modules, is self-powered and is
equipped with ModBus or MBus communication or pulse output and
double tariff input.

2. RANGE

Code Art. Model
CE4DF30PCL1 Pulse
CE4DF3DTCL1 Double tariff ModBus
CE4DF3MTCL1 Double tariff MBus

3. INSTALLATION

Fixing:
On EN/IEC 60715 symmetric rail or DIN 35 rail.
Necessary tools:
For fastening the device on the DIN rail: 5.5 mm flat screwdriver
(from 4 to 6 mm).
Operating position:
Vertical, Horizontal, Upside down,
Technical data sheet: IDP000189EN_03
Connection Weight
Screw terminals 0,210Kg
On the side
Updated: 07/01/2020
BTicino
SpA
Viale Borri 231, 21100 Varese - Italia
www.imeitaly.com
Codes: CE4DF30PCL1 - CE4DF3DTCL1 - CE4DF3MTCL1
Model: CONTO D4-Pd
Contents
1. Use ..................................................................... 1
2. Range ................................................................. 1
3. Installation .......................................................... 1

4. Dimensions......................................................... 1

5. Connections ....................................................... 2
6. Operating data.................................................... 2
7. General features ................................................ 3
8. Conformity and certifications .............................. 6
9. Communication .................................................. 7
4. DIMENSIONS
Housing:
4 DIN43880 modules
66,0 mm
49,2 mm
Pages
71,2 mm
Created: 15/03/2019
1 | 7
