Samoa 151 100 Mode D'emploi

GB
High pressure grease pump to be mounted onto original grease
kegs. All steel construction pump with carrying handle. Unit
includes keg cover, follower disc and 1.5 m hose with outlet
tube and hydraulic grease connector.
E
Bomba de engrase de alta presión para acoplamiento sobre
bidones originales de grasa. La bomba está construida en acero
con empuñadura de transporte. Incluye tapa, disco seguidor y
manguera de 1.5 metros con acoplamiento rígido y boquilla
hidráulica.
F
Pompe à graisse à haute-pression pour fixation directe sur
seau d'origine. Pompe en acier avec anse de transport. Inclut
un couvercle, un plateau suiveur ainsi qu'un flexible longueur
1.50 m avec allonge rigide et agrafe hydraulique.
GB
Part number 151 100 (for 12 kg keg) See figure 2.
Tighten the pump to the cover with the embracer (a). Insert
the suction tube through the central hole of the follower plate
(b) and fix the cover (c) on the keg, tightening the knobs (d).
Connect the hose to the pump outlet.
Part number 151 102 (for 20 kg keg) See figure 3.
Tighten the pump to the cover with the bung adaptor (a).
Insert the suction tube through the central hole of the follower
plate (b) and fix the cover (c) on the keg, tightening the knobs
(d). Connect the hose to the pump outlet.
NOTE: The pump must not reach the bottom of the keg, it
may cause damages to the shovel or rod.
Samoa Industrial, S.A. · Box 103 Alto Pumarín · 33211 Gijón - Asturias Spain · Tel.: +34 985 381 488 · Fax.: + 34 985 384 163
HIGH PRESSURE HAND OPERATED GREASE PUMP
BOMBA DE ALTA PRESIÓN PARA BIDÓN DE GRASA
DISTRIBUTEURS MANUELS À GRAISSE ADAPTABLES SUR SEAUX
Parts and technical service guide
Guía de servicio técnico y recambio
Guide d'instructions et pièces de rechange
Description / Descripción / Description
Installation / Instalación / Installation
Ref.: 151 100, 151 102
R.02/02 815 805

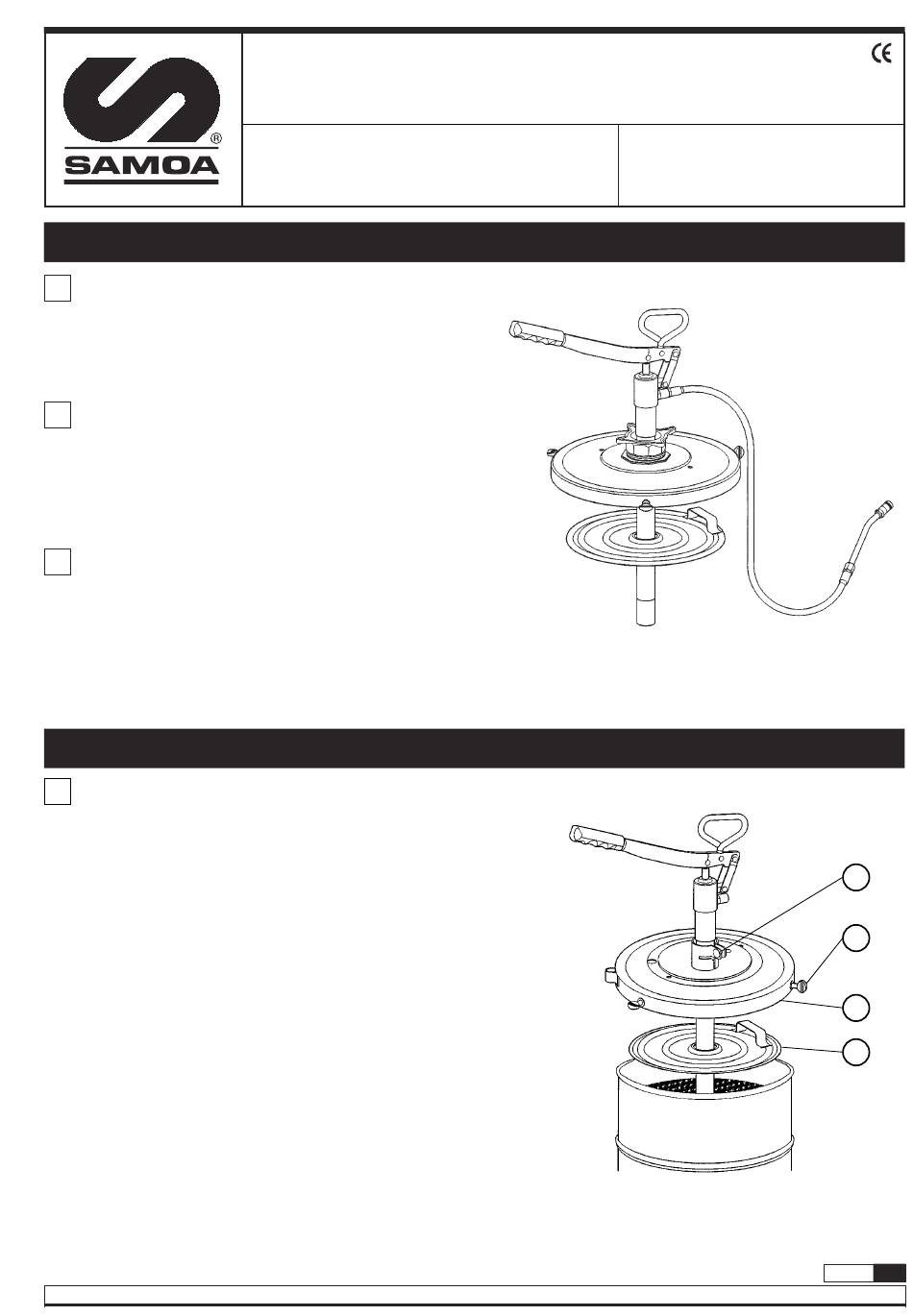

Fig. 1
