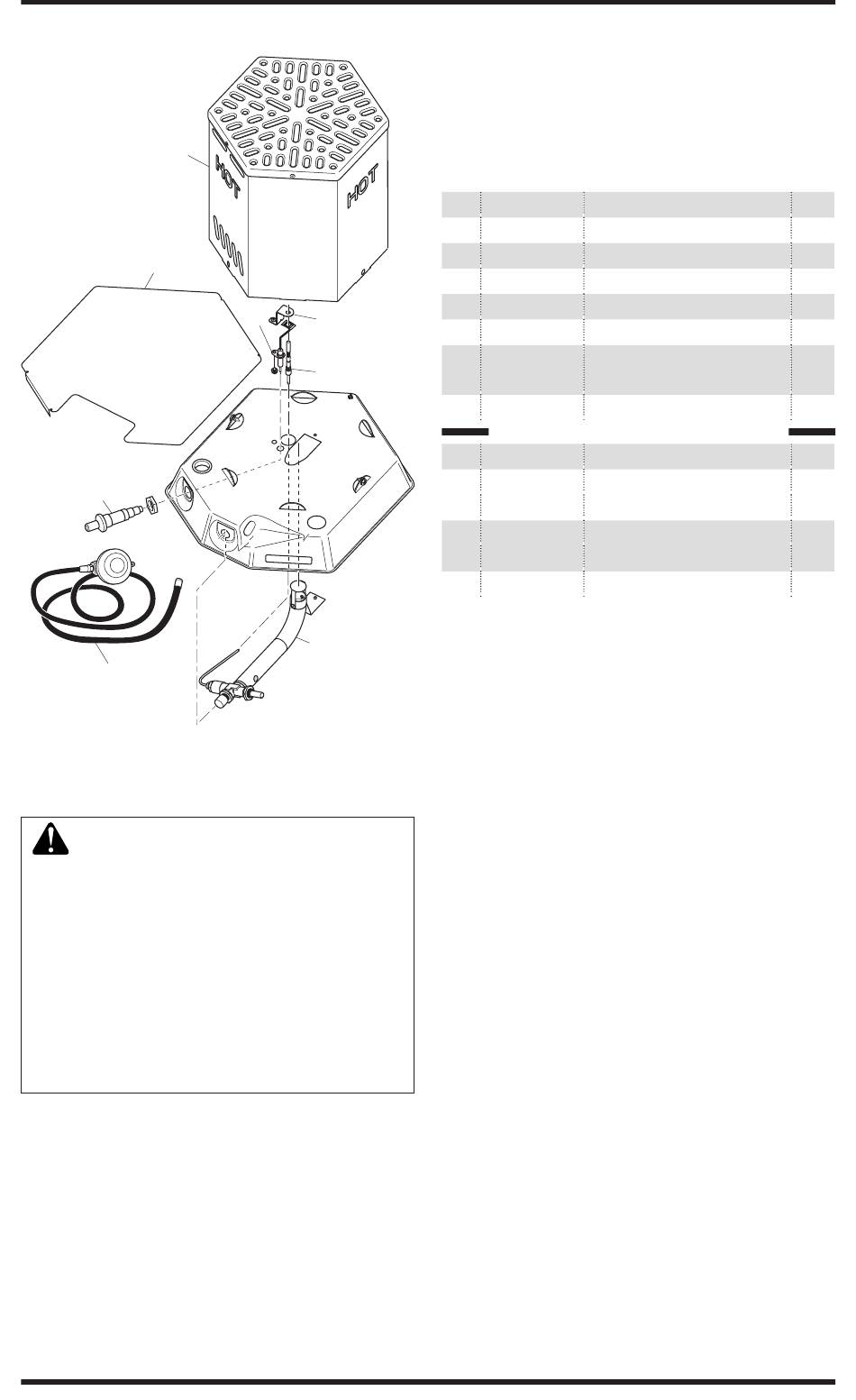

ILLUSTRATEd PARTS bREAkdOWN ANd PARTS LIST

MODELS
RCCP25
TC101
TC102
1
TC103
TC104
TC105
8
3
7

REPLACEMENT PARTS

WARNING: Use only original
replacement parts. This heater
must use design-specific parts.
Do not substitute or use generic
parts. Improper replacement
parts could cause serious or fa-
tal injuries. This will also protect
your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they
can't supply original replacement part(s), either
contact your nearest Parts Central or call DESA
Heating Products (US) at 1-866-672-6040 or
DESA Industries (CAN) at 1-905-826-8010.
112396-01C
5 4
6
2
www.desatech.com
This list contains replaceable parts used in your
heater. When ordering parts, follow the instructions
listed under Replacement Parts of this manual.
KEY
NO. PART NO. DESCRIPTION
1 101880-01 Shell Assembly
2 101864-01 Burner Assembly Kit
3 102445-01 Piezo Ignitor w/ Nut
4 103933-01 Thermocouple Bracket
5 101878-01 Electrode Ignitor
6 099236-01 Thermocouple Kit
7 LPA3025 Hose and Regulator
Assembly
8 112392-01 Base Shield
PARTS AVAILABLE - NOT SHOWN
117069-04 Tradename Decal
111348-04 Warning Tag
111348-06 Warning Tag
111348-05 Operation Tag
111348-07 Operation Tag
112398-04 Rating Label
When calling DESA, have ready
• your name and address
• how heater was malfunctioning
• purchase date
• model and serial numbers of your heater
In most cases, we will ask you to return the part
to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If
they can't supply original replacement part(s),
either contact your nearest Parts Central listed in
the Authorized Service Center booklet supplied
with heater or call DESA Heating Products (US)
at 1-866-672-6040 or DESA Industries (CAN) at
1-905-826-8010 for referral information.
When calling DESA, have ready
• model number of your heater
• the replacement part number
QTY
1
1
1
1
1
1
1
1
1
1
1
1
1
1
7
