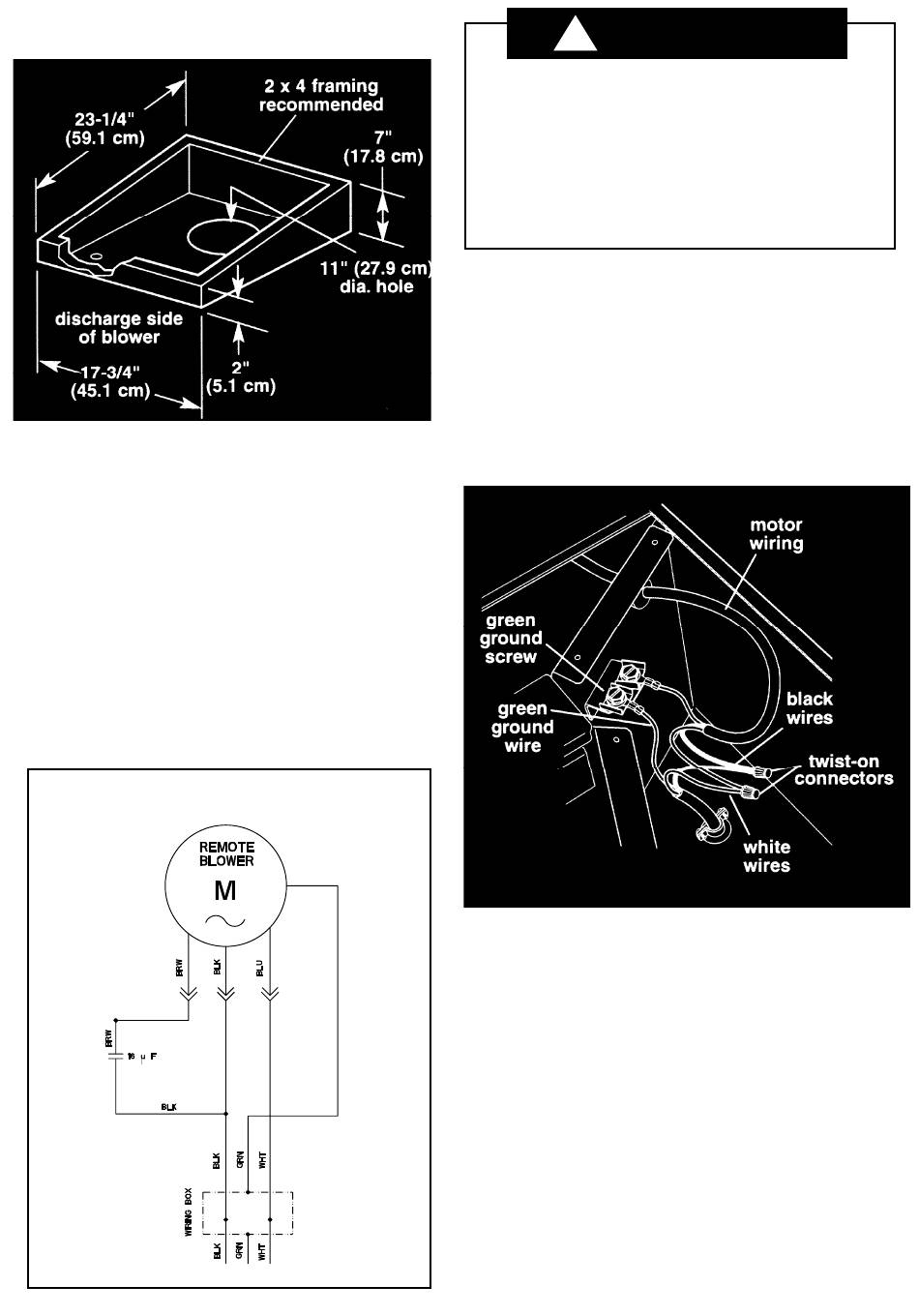

Figure 3 - Flat roof installations
Flat roof installations
1. Locate the 11" (27.9 cm) dia. hole between rafters.
2. Build a sloping base that will mount the remote blower at a
minimum pitch of 2-1/2" (6.4 cm).
3. Weatherproof the base as required.
4. Locate the base so that the remote blower's vent aligns with the
11" (27.9 cm) dia. hole and the blower sits evenly on the base with
no gaps. Note: Make sure that the discharge end of the remote
blower faces away from the direction of prevailing winds.
5. Use dimensions from either FIGURE 1 or 2 to locate the 1-1/4"
(3.0 cm) dia. wiring hole. CONTINUE WITH POINT 6 UNDER
ROOF INSTALLATIONS ON PAGE 3.
wiring diagram
WARNING
!
You can be killed or seriously injured if you don't follow
instructions.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
• Disconnect power before making electrical connection.
• Connect the ground wire to green ground screw in wiring box.
Failure to do so can result in death or electrical shock.
Make the duct & electrical connections
1. Remove the cover from the remote blower. Then remove the
wiring box cover.
2. Pull electrical wiring through the hole in the blower base and
secure it according to local codes.
3. Make the electrical connections. Connect the white and black
wires of the power supply cable wire to the white and black wires
in the wiring box with twist-on connector. Connect the green power
supply ground wire to the green ground screw.
Figure 4 - Electrical connections
4. Replace the wiring box cover and screws taking care not to pinch
the wiring under the wiring box cover.
5. Turn on power (See Installation Instructions that came with your
vent hood system). Check operation of blower and make sure damper
is opening freely.
6. Reinstall remote blower housing.
Warranty & Service
All Faber products are warranteed against any defect in materials or work-
manship for the original purchaser for a period of 1 year from the date of
original purchase. This warranty covers labor and replacement parts. The
warranty does not cover consumable parts such as filters and light bulbs.
This warranty does not apply if this product has been subjected to faulty
installation, misuse, or neglect. This warranty excludes any consequential
expense or damage resulting from any use or malfunction of the product.
All implied warranties are limited to the duration of this warranty.
To obtain warranty service, contact the dealer from whom you purchased
the rangehood, or the local Faber distributor. If you cannot identify a local
Faber distributor, contact us at (508) 358-5353 for the name of a distributor
in your area.
Version 11/10 - Page 4
