LAN NETWORK CONNECTIONS AND POWER WIRING

The keypad can be connected to the lares 4.0 platform in two ways:
• if PoE powered, simply connect the network cable from switch to the RJ45 Eth port
of keypad;
• if not PoE powered, in addition to what has been described above, connect the
power supply: the [+] terminal of the jack adapter must be connected to the [+P]
terminal coming from the panel and the [-] terminal of the jack adapter to the negative
power supply of the panel (see table below):

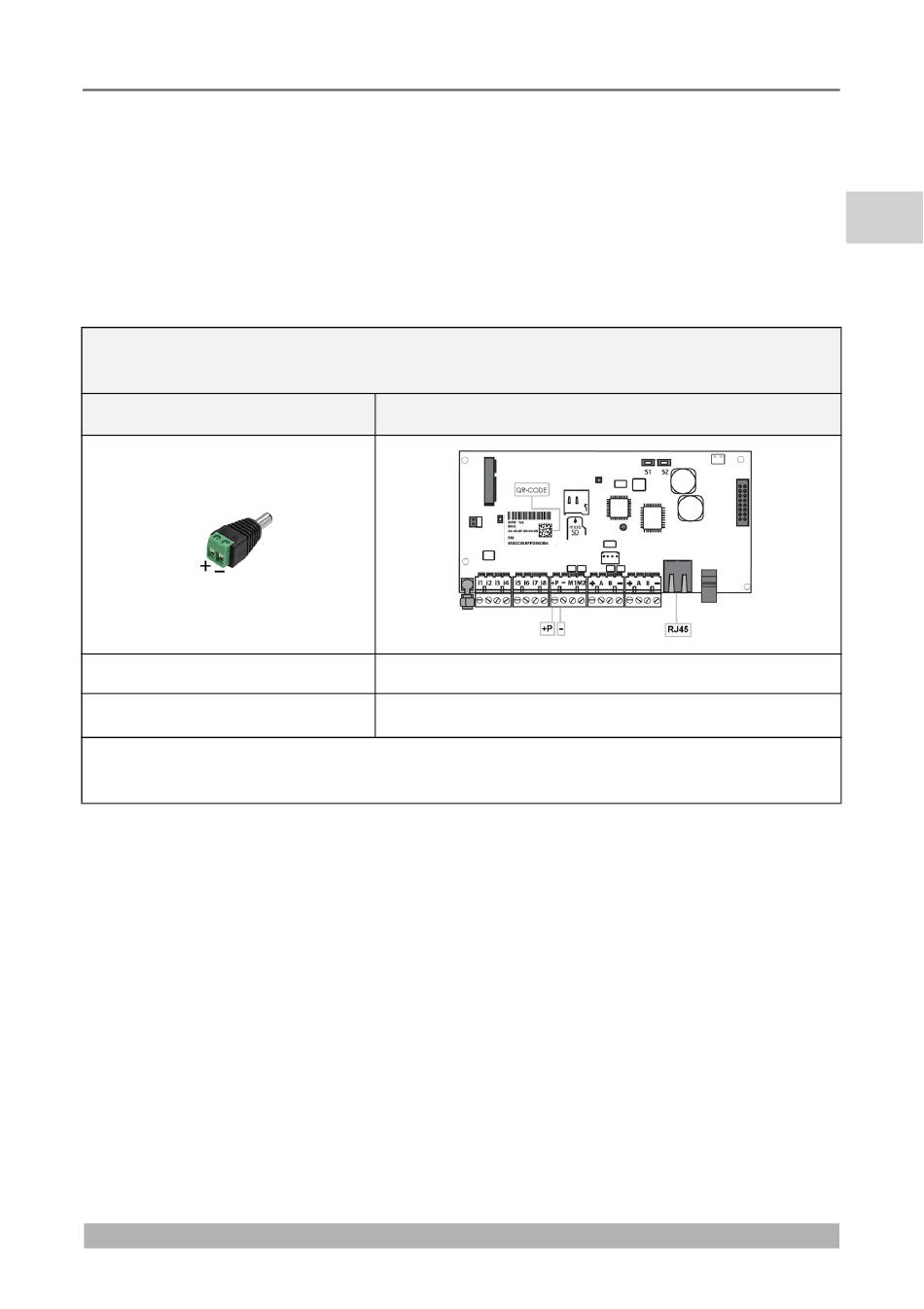

If the keypad is NOT PoE powered, execute the power wiring of jack adapter
terminals.
Jack adapter
+
-
WARNING! For connecting the jack to the keypad DC-IN, it is necessary to unscrew
or move sideways the ground connector that partially block the entrance, if present.
lares 4.0
+P
-
13
