Receiver - Micro Appliance Modules
INTRODUCTION
The Micro Receiver allows the remote control of incandescent,
halogen, low-voltage, energy-saving or LED lights.
• The Micro Receiver is inconspicuously concealed at the light fixture (overhead
light, wall lamp, etc.) or behind a power socket.
• It installs in just minutes.
• It's compatible with all ebode radio home automation devices. Visit the site
www.ebodeelectronics.eu.
DESCRIPTION
LED indicator
(PROG) for programming or (RESET)

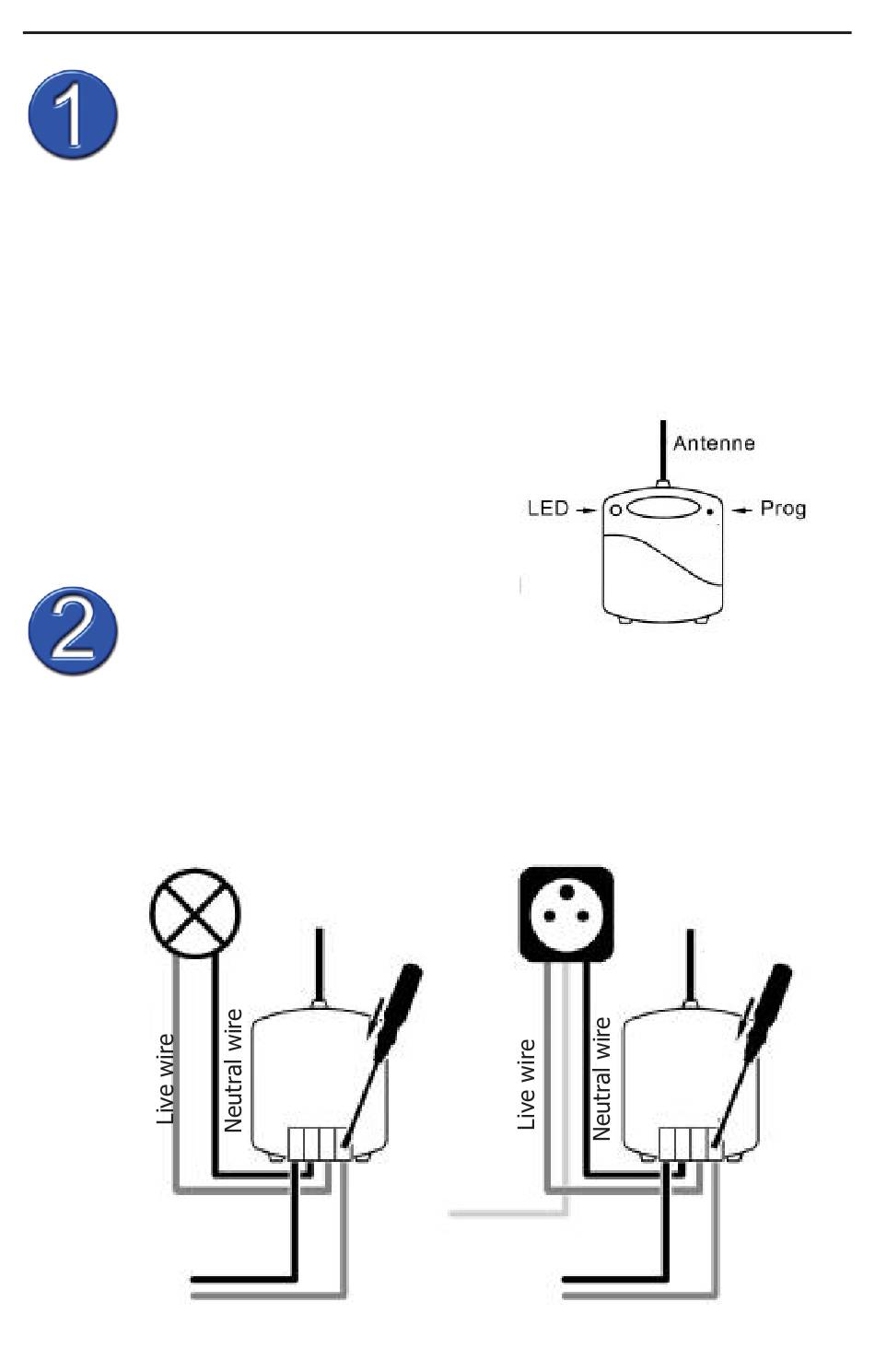

INSTALLATION
- The LIVE and the NEUTRAL wires are essential.
- For a remote-controlled socket verify the thickness of the back of the socket,
add 25 mm in order to define the minimum depth of the wall box.
Connect only one light to the socket without using multi-socket converters to avoid
a cumulative power drain.
Neutral 230V ~ 50 Hz
Live 230V ~ 50 Hz
July 2009
Lighting
Antenna
N N L L
Ground wire
Neutral 230V ~ 50 Hz
Live 230V ~ 50 Hz
page 6
Ref : RMML
Power socket
Antenna
N N L L
RMML
