Rolling screen installation and operation manual
WARNING: When installing the screen use plugs and screws suitable for the screen's weight and for the type of wall or ceiling on which the mount brackets are to be fixed, based on the
following criteria
Screen width up to cm
Overall weight

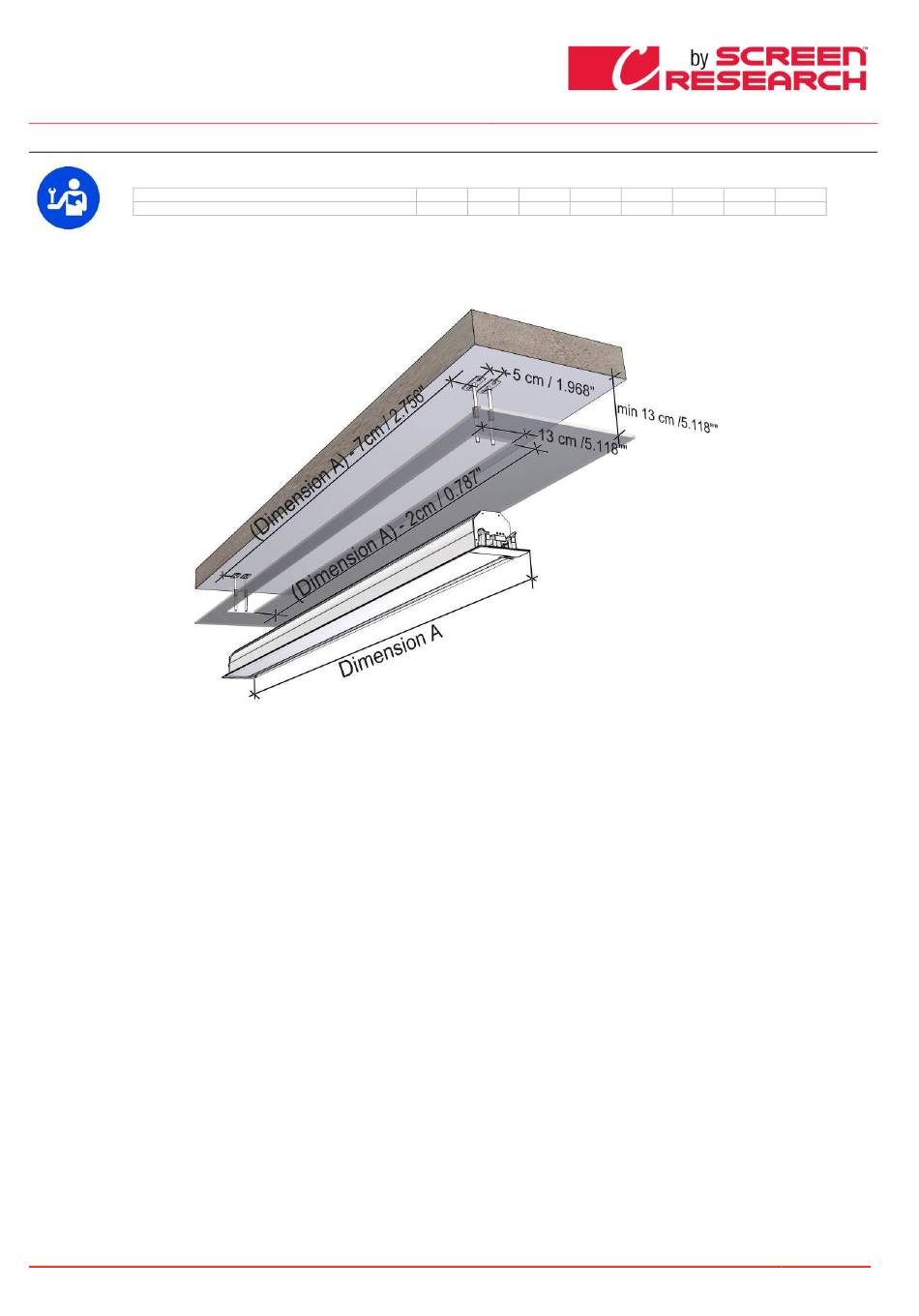

1. Prepare a hole for the screen as described in Fig. 1.
2. Install brackets as described in Fig. 2, adhering to distances given in Fig. 1.
3. Install screen as described in Fig. 3 to 7 of next page.
5. Finish installation by applying plugs as per Fig. 10 and 11.
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: CLIC Installation Manual rev2 | 01.01.2018

07 INSTALLATION INSTRUCTIONS

160 200 250
Kg 20 Kg 25 Kg 30
300 360 410 520
Kg 35 Kg 45 Kg 50 Kg 100
ENGLISH
620
Kg 150
Page 9
