PA620-04-xxx
PA635-04-01E

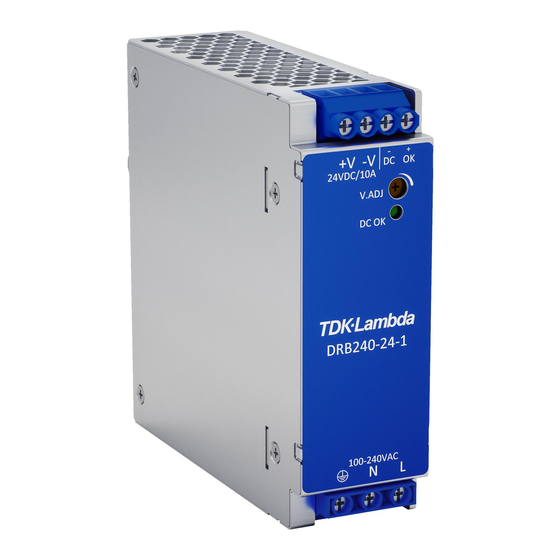

DRB240 Series Instruction Manual
General Safety Instructions:
READ SAFETY INSTRUCTIONS
Servicing:
These products are not customer serviceable TDK-Lambda UK LTD and their authorised agents only are permitted to carry out
repairs.
Critical Components:
These products are not authorised for use as critical components in nuclear control systems, life support systems or equipment
for use in hazardous environments without the express written approval of the Managing Director of TDK-Lambda EMEA.
Product Usage:
These products are designed for use within a host equipment which restricts access to authorised competent personnel.
This product is a component power supply considered apparatus and is only to be installed by qualified persons within other
equipment and must not be operated as a stand-alone product.
This product is for sale to business to business customers and can be obtained via distribution channels.
It is not intended for sale to end users.
This product is considered to be apparatus and complies with the EMC directive. Compliance with the EMC directive must be
considered in the final installation. Please contact your local TDK-Lambda office
Environmental:
These products are IPX0, and therefore chemicals/solvents, cleaning agents and other liquids must not be used.
Environment:
This power supply is a switch mode power supply for use in applications within a Pollution Degree 2, overvoltage category II
environment. Material Group IIIb PCB's are used within it.
Output Loading:
The output power taken from the power supply must not exceed the rating stated on the power supply label, except as stated in
the product limitations in this handbook.
Input Parameters:
This product must be operated within the input parameters stated in the product limitations in this handbook.
End of Life Disposal:
The unit contains components that require special disposal. Make sure that the unit is properly disposed of at the end of its
service life and in accordance with local regulations
TDK-Lambda
DRB240 Series
INSTRUCTION MANUAL
ENGLISH
Publicité
Table des Matières
Manuels Connexes pour TDK-Lambda DRB240 Série
Sommaire des Matières pour TDK-Lambda DRB240 Série
- Page 1 General Safety Instructions: READ SAFETY INSTRUCTIONS Servicing: These products are not customer serviceable TDK-Lambda UK LTD and their authorised agents only are permitted to carry out repairs. Critical Components: These products are not authorised for use as critical components in nuclear control systems, life support systems or equipment for use in hazardous environments without the express written approval of the Managing Director of TDK-Lambda EMEA.
-
Page 2: Risk Of Electric Shock
TDK-Lambda PA620-04-xxx PA635-04-01E DRB240 Series INSTRUCTION MANUAL RISK OF ELECTRIC SHOCK High Voltage Warning: Dangerous voltages are present within the power supply. The professional installer must protect service personnel from inadvertent contact with these dangerous voltages in the end equipment. -
Page 3: Allgemeine Sicherheitsvorschriften
Allgemeine Sicherheitsvorschriften: LESEN SIE DIE SICHERHEITSVORSCHRIFTEN Wartung: Diese Produkte können nicht durch den Kunden gewartet werden. Nur TDK-Lambda UK LTD. und deren zugelassene Vertriebshändler sind zur Durchführung von Reparaturen berechtigt. Kritische Komponenten: Diese Produkte sind nicht für die Verwendung als kritische Komponenten in nuklearen Kontrollsystemen, Lebenserhaltungssystemen oder Geräten in gefährlichen Umgebungen geeignet, sofern dies nicht ausdrücklich und in... -
Page 4: Gefahr Durch Elektrischen Schlag
Eine interne Sicherung schützt das Gerät und darf durch den Benutzer nicht ausgetauscht werden. Im Fall von internen Defekten muss das Gerät an TDK-Lambda UK LTD oder einen der autorisierten Vertriebshändler zurückgeschickt werden. Ein geeignetes mechanisches, elektrisches und brandgeschütztes Gehäuse muss als Schutz vor der Gefahr von mechanischen Risiken, Stromschlägen und Brandschutz in dem Endgerät vorgesehen werden. -
Page 5: Entretien
Consignes générales de sécurité: LIRE LES CONSIGNES DE SECURITE Entretien: Ces produits ne peuvent pas être réparés par l’utilisateur. Seuls, TDK-Lambda UK LTD et ses agents agréés sont autorisés à effectuer des réparations. Composants critiques: Ces produits ne doivent pas être utilisés en tant que composants critiques dans des systèmes de commande nucléaire, dans des systèmes de sauvetage ou dans des équipements utilisés dans des environnements dangereux, sans l'autorisation écrite expresse... -
Page 6: Risque De Choc Electrique
Un fusible interne protège le module et ne doit pas être remplacé par l'utilisateur. En cas de défaut interne, le module doit être renvoyé à TDK-Lambda UK LTD ou l'un de ses agents agréés. Une enceinte appropriée doit être prévue par l'utilisateur final pour assurer la protection contre les chocs mécaniques, les chocs électriques et l'incendie. - Page 7 Questo prodotto non è inteso per la vendita al dettaglio o agli utilizzatori finali. Questo prodotto è da considerarsi come apparato e conforme con la direttiva EMC. Conformità alla direttiva EMC deve essere considerata nell'installazione finale. Gli uffici di TDK-Lambda Sas Succursale Italiana sono a vostra disposizione per ulteriori ragguagli.
- Page 8 Un fusibile interno protegge l'unità e non deve essere sostituito dall'utente. Nell'eventualità di un difetto interno, restituire l'unità a TDK-Lambda UK LTD o a uno dei suoi agenti autorizzati. L'apparecchiatura finale deve includere una recinzione meccanica, elettrica e antincendio per proteggere dai pericoli di natura meccanica, dalle scosse elettriche e dai pericoli di incendio.
-
Page 9: Instrucciones Generales De Seguridad
Instrucciones generales de seguridad: LEA LAS INSTRUCCIONES DE SEGURIDAD Servicio: Estos productos no pueden ser reparados por los clientes. TDK-Lambda UK LTD. y sus agentes autorizados son los únicos que pueden llevar a cabo las reparaciones. Componentes fundamentales: Estos productos no pueden ser utilizados como componentes fundamentales en sistemas de control nuclear, sistemas de soporte vital o equipos a utilizar en entornos peligrosos sin el consentimiento expreso por escrito del Director General de TDK-Lambda EMEA. - Page 10 Un fusible interno protege la unidad y este no debe ser nunca reemplazado por el usuario. En caso de existir algún defecto interno, la unidad debe ser enviada a TDK-Lambda UK LTD o a uno de sus agentes autorizados. El equipo de uso final debe constituir un recinto de protección mecánica, eléctrica y contra incendios de protección mecánica, contra descargas eléctricas y contra el peligro de incendios.
- Page 11 Instruções gerais de segurança: LEIA AS INSTRUÇÕES DE SEGURANÇA Manutenção: Estes produtos não são podem ser submetidos a manutenção por parte do cliente. Apenas a TDK-Lambda UK LTD e os seus agentes autorizados têm permissão para realizar reparações. Componentes essenciais: Não é...
- Page 12 Existe um fusível interno que protege a unidade e que não deve ser substituído pelo utilizador. Em caso de defeito interno, a unidade deve ser devolvida à TDK-Lambda UK LTD ou a um dos seus agentes autorizados. O equipamento de utilização final deve fornecer um bastidor com protecção mecânica, eléctrica e contra incêndios adequada.
-
Page 13: Warning Symbols
TDK-Lambda PA620-04-xxx PA635-04-01E DRB240 Series INSTRUCTION MANUAL BEFORE USING THE POWER SUPPLY UNIT Pay attention to all warnings and cautions before using the unit. Incorrect usage could lead to an electrical shock, damage to the unit or a fire hazard. -
Page 14: Emc Directive
TDK-Lambda PA635-04-01E DRB240 Series INSTRUCTION MANUAL Note: CE MARKING CE Marking, when applied to a product covered by this handbook indicates compliance with the following: Low Voltage Directive in that it is complies with EN60950-1 and EN62368-1. EMC Directive Restriction of the use of certain Hazardous Substances Directive 2. - Page 15 TDK-Lambda PA635-04-01E DRB240 Series INSTRUCTION MANUAL 3. Terminal Connecting Method 4-5. Peak output current Pay attention to the input wiring. If it is connected to wrong The DRB240 can deliver 120% peak current for 10 seconds terminal, the power supply will be damaged.
- Page 16 TDK-Lambda PA635-04-01E DRB240 Series INSTRUCTION MANUAL 4-7. Series Operation 4-9. Withstand Voltage For series operation, either method (A) or (B) is possible. This series is designed to withstand 4243VDC between input and output, 2500VDC between input and (Protective Method ( A )
- Page 17 TDK-Lambda PA635-04-01E DRB240 Series INSTRUCTION MANUAL 4-10. Output Dynamic Load Response 6.1. Power supply mounting on DIN RAIL (TS35 or equivalent) During output dynamic load test (0%-100% load), the output voltage level might experience a higher voltage dip Make sure input and output wire disconnected when of -6% (typ).
-
Page 18: Wiring Method
TDK-Lambda PA635-04-01E DRB240 Series INSTRUCTION MANUAL (3) Press against the bottom front side for locking. 7. Output Derating – DRB240 series Shake the unit slightly to check the locking action. OUTPUT DERATING CURVE DRB240-24-1 Input Details 100-240VAC 2.7A Frequency: 50 / 60Hz Output Details IND.CONT.EQ. - Page 19 7 for derating. 4) For indoor use only. Internal Fuse Live(L) line INPUT Product marking: Fuse TDK-Lambda Singapore Pte. Ltd. 100-240VAC/20A (Sales, Services and R&D) 1008 Toa Payoh North #06-01/08, #07-01/03 Singapore 318996 Telephone: +65 62517211 Facsimile: +65 62509171 WEBSITE: www.sg.lambda.tdk.com 10.
- Page 20 TDK-Lambda PA635-04-01E DRB240 Series INSTRUCTION MANUAL DRB240-24-1 Input Details 100-240VAC 2.7A Frequency: 50 / 60Hz Output Details IND.CONT.EQ. DC 24-28V/10-8.6A E483168 Maximum power: 240W Caution: For use in a controlled environment, refer to manual for conditions. Attention: Pour une utilisation dans un environnement contrôlé,reportez-vous...
