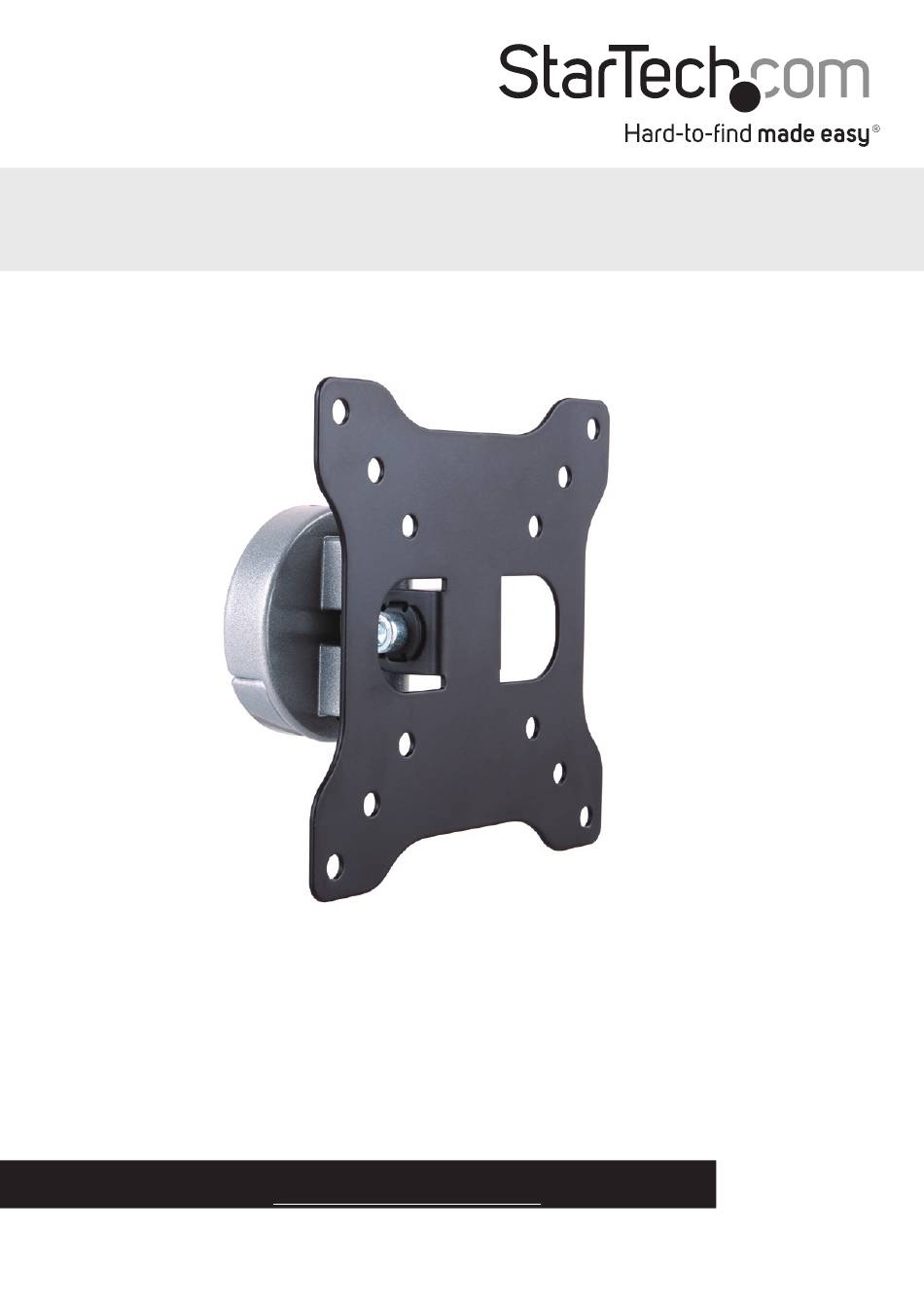

Monitor Wall Mount - Aluminum
ARMWALL
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
For the latest information, technical specifications, and support for
this product, please visit www.StarTech.com/ARMWALL.
Manual Revision: 12/24/2019
*actual product may vary from photos
Publicité
Table des Matières
Manuels Connexes pour StarTech ARMWALL
Sommaire des Matières pour StarTech ARMWALL
- Page 1 Monitor Wall Mount - Aluminum ARMWALL *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMWALL.
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
- Page 3 Warning statements Mensagens de aviso Make sure to assemble this product according to the instructions. Failure to do so might result in personal Certifique-se de que monta este produto de acordo com as instruções. O incumprimento pode resultar injury or property damage. em ferimentos pessoais ou danos de propriedade.
-
Page 4: Table Des Matières
Table of Contents Warnings ..............................i Introduction ....................1 Product diagram ............................1 Technical specifications .......................... 2 Package contents ............................3 Requirements ............................. 4 Installation ....................5 Attach the display mount to a wall ..................... 5 Attach a monitor to the display mount..................... 6 Adjust the tilt tension .......................... -
Page 5: Introduction
Introduction Product diagram Display mount Mounting plate 90° +45° -45° Instruction manual... -
Page 6: Technical Specifications
Technical specifications Type of measurement Measurement VESA mounting hole pattern 50x50 75x75 100x100 Rated load Up to 15 kg (33 lb.) Tilt +450 to -450 Screen size Between 330 mm and 863.6 mm (13 in. and 34 in.) Swivel +450 to -450 Instruction manual... -
Page 7: Package Contents
Package contents Display mount Hex key Qty: One Qty: One Wrench M4x14 mm screws Qty: One Qty: Four M5x14 mm screws Washers Qty: Four Qty: Four Instruction manual... -
Page 8: Requirements
Instuction manual Qty: One Requirements • A monitor or display that is compatible with one of the VESA mounting hole patterns that ARMWALL supports • A Phillips screwdriver Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMWALL. -
Page 9: Installation
Warning! The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall that you are using, contact a construction professional to install the ARMWALL or to provide specific mounting instructions for your wall structure. -
Page 10: Attach A Monitor To The Display Mount
Mounting plate Attach a monitor to the display mount To accommodate different monitor sizes, the ARMWALL comes with two sets of screws that are different lengths and diameters. To select the appropriate screws for the type of monitor that you’re using, complete the following: •... - Page 11 4. Use a Phillips screwdriver to tighten the screws.(figure 3) Warning! Do not over-tighten the screws. If you encounter resistance while you’re tightening the screws, stop tightening. Failure to do so could result in damage to the monitor. figure 3 Washer Display mount M4x14 mm screw...
-
Page 12: Adjust The Tilt Tension
Adjust the tilt tension 1. Use the hex key to prevent the screw on the display mount from moving as you tighten the nut. 2. Use the wrench to tighten the nut on the side of the display mount. (figure 4) figure 4 Wrench Hex key... -
Page 13: Attach The Display Mount To The Mounting Plate
Attach the display mount to the mounting plate Warning! Attaching the monitor is a two-person job. Do not attempt to complete this task by yourself. 1. Carefully pick up the display mount with the monitor attached and slide it onto the mounting plate. -
Page 14: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
