To reduce the risk of injury, always
WARNING
wear proper eye protection marked
to comply with ANSI Z87.1.
When working in dusty situations, wear appro-
priate respiratory protection or use an OSHA
compliant dust extraction solution.
Follow all instructions and warnings provided
with the core drill and accessories. Only use a
core drill and accessories specifically recom-
mended for this stand. Others may be hazardous.
When drilling through walls or ceilings, protect
persons and the work area on the other side. The
bit may extend through the hole or the core may
fall out on the other side from falling debris/cores.
1. Secure the stand using an expansion-type anchor
or a vacuum system.
2. Install the drill into the stand.
3. Use the four (4) eye bolts to level the stand.
4. Adjust the stand carrier up and install a bit.
5. Adjust the stand to the desired angle.
6. Ensure all adjustments are secure and the center
pointer is retracted.
7. Turn on the machine according to the drill manu-
facturer's instructions.
8. Lower the drill into the workpiece using the feed
handle and continue to drill according to drill and
accessory manufacturers' instructions.
9. When done, use the feed handle to raise the bit
clear of the hole and turn off the drill.
MAINTENANCE
To reduce the risk of injury, always
WARNING
remove the machine and all acces-
sories before performing any maintenance.
Contact a MILWAUKEE service facility for ALL
repairs.
Maintaining Stand
Start a regular maintenance program to keep your
machines in good repair. Inspect your stand for is-
sues such as undue noise, misalignment or binding
of moving parts, breakage of parts, or any other
condition that may affect the operation. Return to a
MILWAUKEE service facility for repair.

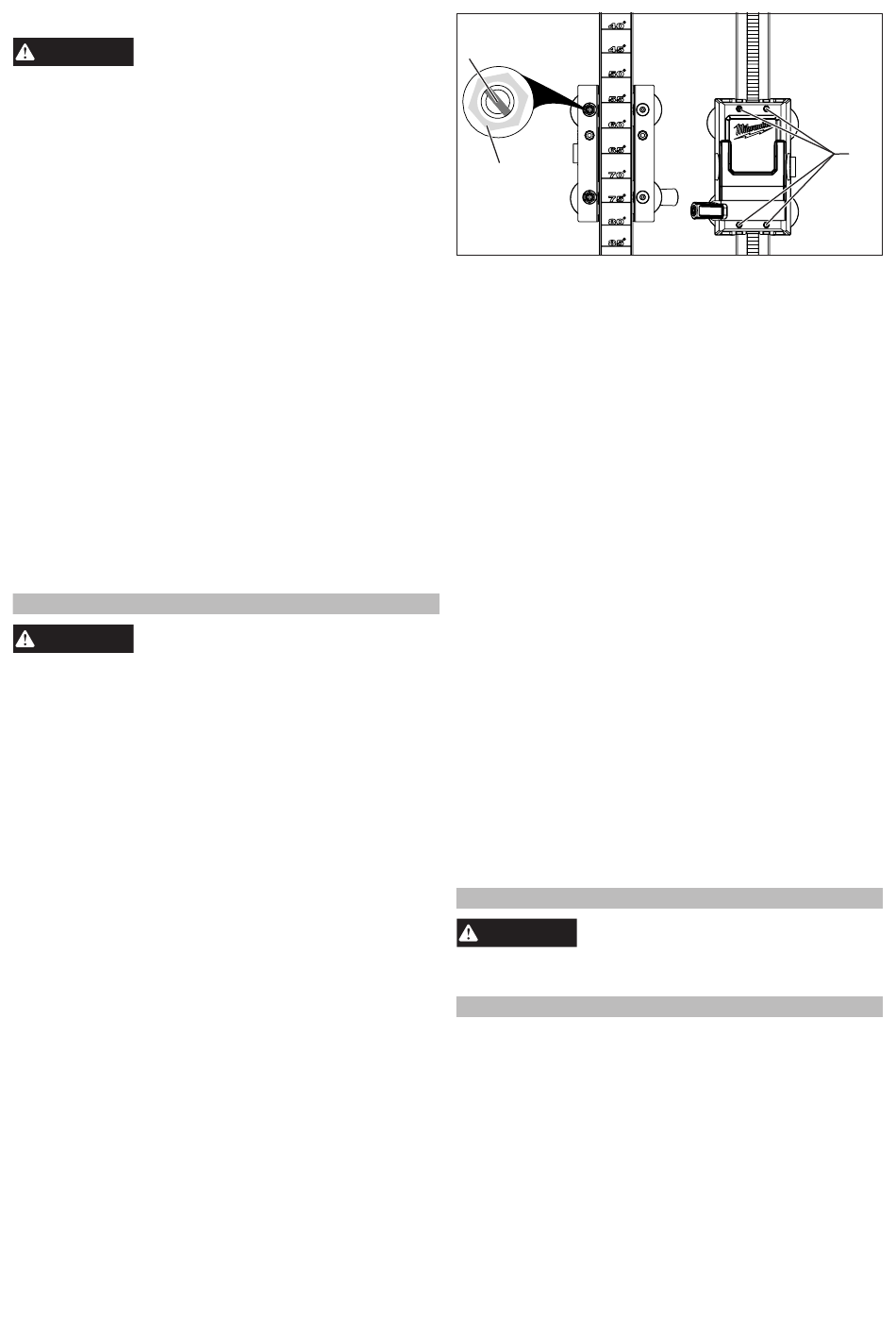

Adjusting Carrier Assembly
Over time carrier assembly may become loose and
need to be tightened.
1. Remove drill and all accessories.
WARNING! Always remove the machine and all
accessories before performing any maintenance.
2. When the carrier is loose from side to side, tighten
the two eccentric shaft/nut assemblies (A).
a. Loosen the outer nut slightly.
b. Hand-tighten the eccentric shaft with a flat
screwdriver to 1 to 5 in-lb.
c. Manually tighten the outer nut to 120 to 130 in-lb.
3. When the carrier is loose from front to back, tighten
the four set pins (B). Use a 4 mm hex wrench to
tighten the pins to 2.5 to 7 in-lb.
NOTE: Over-tightening the assembly will make the
carrier difficult to move up and down.
Coring
A
Eccentric
Shaft
Nut
Lubricating Rack
Maintain a light coat of MILWAUKEE Type "P" or "J"
Grease on the rack to reduce friction and wear when
the carrier is moved up and down.
Replacing Vacuum Gaskets
Through normal use, the rubber gaskets under the base
can become worn, requiring replacement. If the vacu-
um seal cannot hold sufficient pressure, replace seals.
1. Remove drill and all accessories. WARNING!
Always remove the machine and all accessories
before performing any maintenance.
2. Tip the stand on its side.
3. Loosen the (4) eye bolts until the ends are above
the bottom of the surface of the base.
4. Pull the old gaskets from the grooves and discard.
5. Place a new gasket (Cat. No. 43-44-0019) into both
grooves and press firmly in place.
6. Place the stand upright and apply pressure to all
edges to fully seat the gasket into the stand.
Keep handles clean, dry and free of oil or grease.
Use only mild soap and a damp cloth to clean, since
certain cleaning agents and solvents are harmful to
plastics and other insulated parts. Some of these
include gasoline, turpentine, lacquer thinner, paint
thinner, chlorinated cleaning solvents, ammonia
and household detergents containing ammonia.
Never use flammable or combustible solvents around
machines.
For repairs, return the stand to the nearest authorized
service center.

ACCESSORIES

Use only recommended accesso-
WARNING
ries. Others may be hazardous.
For a complete listing of accessories, go online to
www.milwaukeetool.com or contact a distributor.
SERVICE - UNITED STATES
1-800-SAWDUST
Monday-Friday, 7:00 AM - 6:30 PM CST
www.milwaukeetool.com
or visit
Contact Corporate After Sales Service Technical
Support with technical, service/repair, or warranty
questions.
Email: metproductsupport@milwaukeetool.com
