C5S12

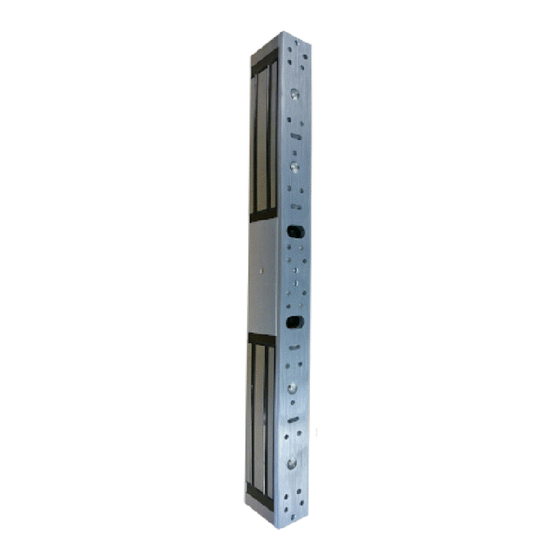

2 x 500Kg Surface Mount Electromagnetic lock
PRODUCT PRESENTATION
NFS 61-937.
Monitored.
Surface mount.
Delivered with armature plates.
Corrosion resistance.
No mechanical wear.
Ease of installation.
Recommended for interior use.
Fail safe (Door unlocked when power off).
Holding force: 2 x 500kg.
No residual magnetism.
Built-in varistor: Built-in electronic
protection to eliminate back EMF.
Dimensions (L x W x D): 539 x 66 x 41mm.
Armature dimensions (L x W x D): 185 x 60 x 12mm.
Power supply: 12/24V dc.
Power absorption (per electromagnetic lock):
- 12 V DC = 550mA,
- 24 V DC = 275mA.
WEEE & RoHS
EC certifi cation
IP42
ELECTRICAL CONNECTIONS
12V dc Default setup
Terminal
Correspondence
block
+ 12 or 24V dc
- - 0 V
N.C NC (Normally closed)
COM COM
N.O NO (Normally open)
The NO/NC signal only switches when
the door is closed with the power to it on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. A wrong position
could damage the lock. This type of damage
is not covered by the warranty.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
The Armature plate must be able to pivot
slightly about its center mounting screw
to compensate for any door misalignment.
All the information contained within this document (photos, drawing, features, specifi cations and dimensions) could be perceptibly different and can be changed without prior notice.
Manufacturing Access Control since 1985
Recommended
power supplies
ARD212 BS602
WITH BUILT-IN PCB BOARD
Voltage selection
jumpers
12V dc
G0301FR0340V01
INSTALLATION
Cap nut
Guide piece
Roll pin
PACKAGE CONTENTS
Surface
Armature Mounting Roll pin Steel
mount
plate plate 5x16 washer
magnet
1 2 1 4
24V dc
Fixing plate
M8
screw
Armature plate
Steel washer
Rubber
washer
Rubber M8x35 Cap Guide
washer screw nut piece
4 4 2 2 2
DIRECT CONNECTION
12V DC
Red
White
Green
Black
24V DC
Red
White
Green
Black
CONTACT
Yellow
Blue
Orange
EN
installation
Manual
1
+
-
+
-
NC
COM
NO
