Getting ready to use the R-1
Inserting and removing a card

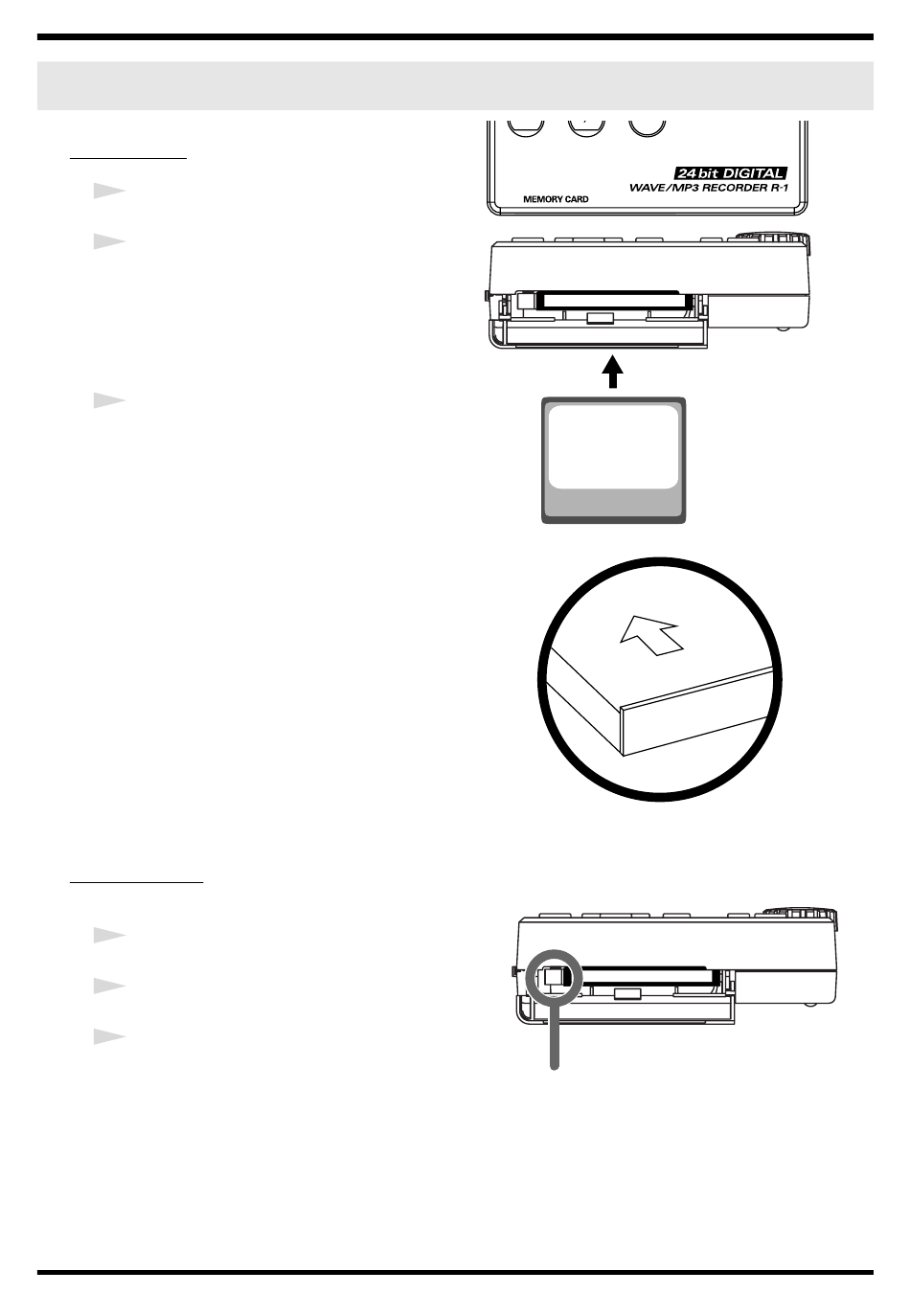

fig.CFslot
Inserting
1
Turn off the power of the R-1.
2
Open the memory card slot cover,
and insert the CompactFlash card with
its back side facing upward.
Push the CompactFlash card all the way
into the slot.
3
Close the memory card slot cover.
* With a CompactFlash card, the reverse side
is the side that has a raised lip when you're
looking at the edge not containing the
terminals.
To insert a CompactFlash card, position it
so its reverse side faces upwards, and gently
push the card into the slot. If you attempt to
forcibly insert the card in the wrong
direction, you may damage the R-1 or the
CompactFlash card. Please use caution.
Removing
fig.CFslot2
1
Turn off the power of the R-1.
2
Open the memory card slot cover.
3
Push the eject button and remove the
CompactFlash card.
26
Insert this way
Push the eject button
With the back of the
CompactFlash card
facing upward, push
it all the way into the
slot
