Jotul F 263 Manuel D'installation page 8

ENGLISH

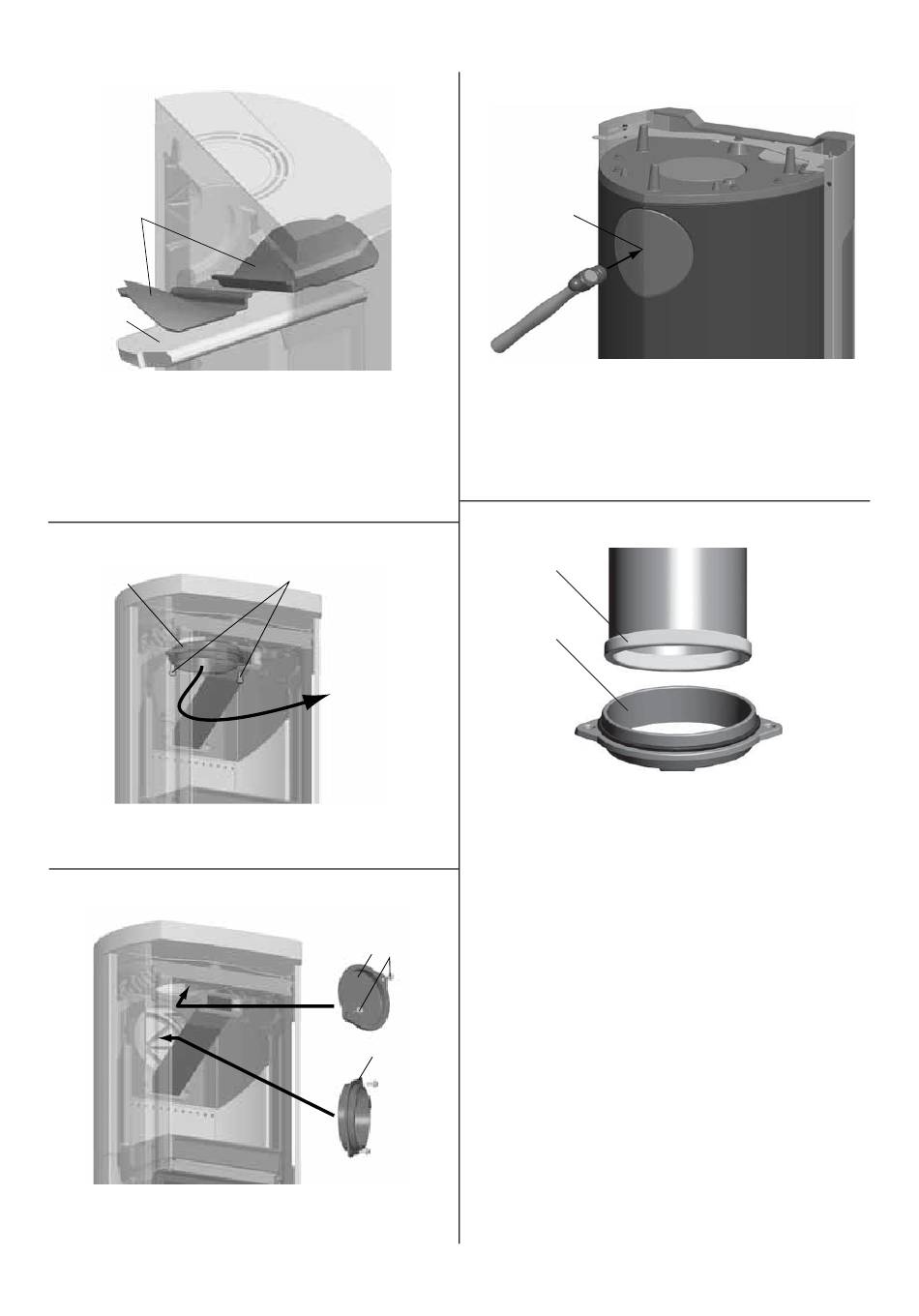

Fig. 5
B
A
Lift the baffle (Fig. 5 A) up carefully.
1.
2. Remove one of the side burn plates by lifting them up a little
and then out. (Be aware if using tools, that vermiculite plates
may be damaged by rough handling).
3. Remove the baffle.
4. Remove the other side burn plate.
Remove the exhaust deflectors (Fig. 5 B).
5.
Fig. 6
B
Unscrew the screws (Fig. 6 A) and remove the smoke outlet
1.
(Fig. 6 B) from the inside of the burn chamber.
Fig. 7
Unscrew the screws (Fig. 7 C) and remove the cover (Fig. 7 B)
1.
from the rear outlet from the inside of the burn chamber.
8
A
B C
A
Fig 8
A
Knock out the removable covers (Fig. 8 A).
1.
Attach the smoke outlet (Fig. 7 A) on the inside of the burn
2.
chamber where the cover was.
Install the cover (Fig. 7 B) where the smoke outlet was.
3.
4. Refit the exhaust deflectors (Fig. 5 B) and the baffle plate
(Fig. 5 A).
Fig. 9
A
B
Place the gasket (Fig. 9 A) from the bag of screws around
1.
the edge of the flue pipe and push it into the smoke outlet
(Fig. 9 B).
