design Ludovica e Roberto Palomba
Istruzioni per l'installazione della rubinetteria
I
Instructions for the installation of the faucets
GB
Instructions pour l'installation de la robinetterie
F
Montageanleitungen zur installation der armaturen
D
Instrucciones para la instalacion de la griferia
E
ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ
RU
Instrukcje instalacji armatury
PL
Publicité
Manuels Connexes pour ZUCCHETTI Jingle ZIN690
Sommaire des Matières pour ZUCCHETTI Jingle ZIN690

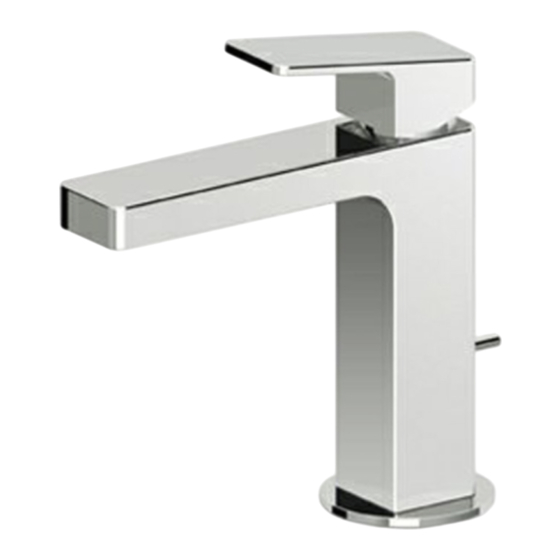

- Page 1 Jingle design Ludovica e Roberto Palomba Istruzioni per l’installazione della rubinetteria Instructions for the installation of the faucets Instructions pour l’installation de la robinetterie Montageanleitungen zur installation der armaturen Instrucciones para la instalacion de la griferia ИНСТРУКЦИИ ПО МОНТАЖУ СМЕСИТЕЛЬНОЙ АРМАТУРЫ Instrukcje instalacji armatury...
- Page 3 Index Jingle collection ZIN690-ZIN693 ZIN311 ZIN692-ZIN695 ZIN691-ZIN694 ZIN634 Z92198 ZIN102 ZIN136 ZIN450 ZIN740 ZIN121 ZIN126...
- Page 4 Installazione - Installation ZIN690-ZIN693-ZIN311-ZIN692-ZIN695-ZIN691-ZIN694 Utensili necessari - Necessary tools CH.37 FORO/HOLE Ø 35 CH.37...
- Page 6 Installazione - Installation ZIN634 - Z92198 Utensili necessari - Necessary tools CH.12 TEFLON CH.2 CH.2,5 NON TAGLIARE DON’T CUT...
- Page 7 CH.12...
- Page 8 CH.2,5 CH.2...
- Page 9 Installazione - Installation ZIN102-ZIN136 Utensili necessari - Necessary tools CH.30 TEFLON CH. 2,5...
- Page 10 CH.30 CH.2,5...
- Page 11 Installazione - Installation ZIN450 Utensili necessari - Necessary tools TEFLON CH.35 CH.2 Ø 48/50 Ø 33/35 Ø 48/50 Ø 33/35 DEVIATORE DIVERTER 100 100 100...
- Page 12 CH.2 CH.35...
- Page 13 FILETTO SINISTRO LEFT THREAD TAPPO / PLUG CH.35...
- Page 14 WATER INLET...
- Page 15 Installazione - Installation ZIN740 Utensili necessari - Necessary tools CH.2,5 CH.5 CH.13 CH.4 CH.5 CH.13 R99676 NOT INCLUDED CH.13...
- Page 16 CH.4 CH.5 CH.4 L=100x100...
- Page 17 CH. 2 CH.13 CH. 2,5...
- Page 19 Installazione - Installation ZIN121-ZIN126 Utensili necessari - Necessary tools CH. 2 CH. 1,5 NON TAGLIARE DON’T CUT ONLY FOR FINISHES/ SOLO PER FINITURE: .W-.N-.P CH. 1,5 CH. 2...
- Page 20 Sostituzione cartuccia - Cartridge replacement ZIN690-ZIN693-ZIN311-ZIN692-ZIN695-ZIN691-ZIN694 CH.2 CH.22...
- Page 21 Sostituzione cartuccia - Cartridge replacement ZIN634-ZIN102-ZIN136-ZIN450-ZIN740-ZIN121-ZIN126 CH.2 CH.29 Coppia di serraggio Tightening torque 12 Nm...
- Page 22 можете воспользоваться чистящим средством ZETABRILL. product ZETABRILL. CZYSZCZENIE NETTOYAGE Do czyszczenia wszystkich produktów Zucchetti, zarówno Pour nettoyer toute notre robinetterie dans les versions chromées, chromowanych, złoconych, malowanych, jak i w innych, specjalnych dorées, colorées ou finitions particulières, il est recommandé d’éviter wykończeniach, absolutnie nie wolno stosować...
- Page 23 Pressure difference between hot /cold water: 1 bar max. Maximum temperature: 80°C Recommended temperat.: 60-65°C Zucchetti taps can be used with electric storage water heathers and instant gas types, centralised system, combi wall-mounted gas boilers and district heating systems. Before connecting the taps we recommend draining the system thoroughly; it is also advisable to install under basin stop valves with filter (art.
- Page 24 Zucchetti Rubinetteria S.p.A. Via Molini di Resiga, 29 - 28024 Gozzano (No) - Italy - Tel. +39 0322 954700 - Fax +39 0322 954823 - www.zucchettikos.it...
