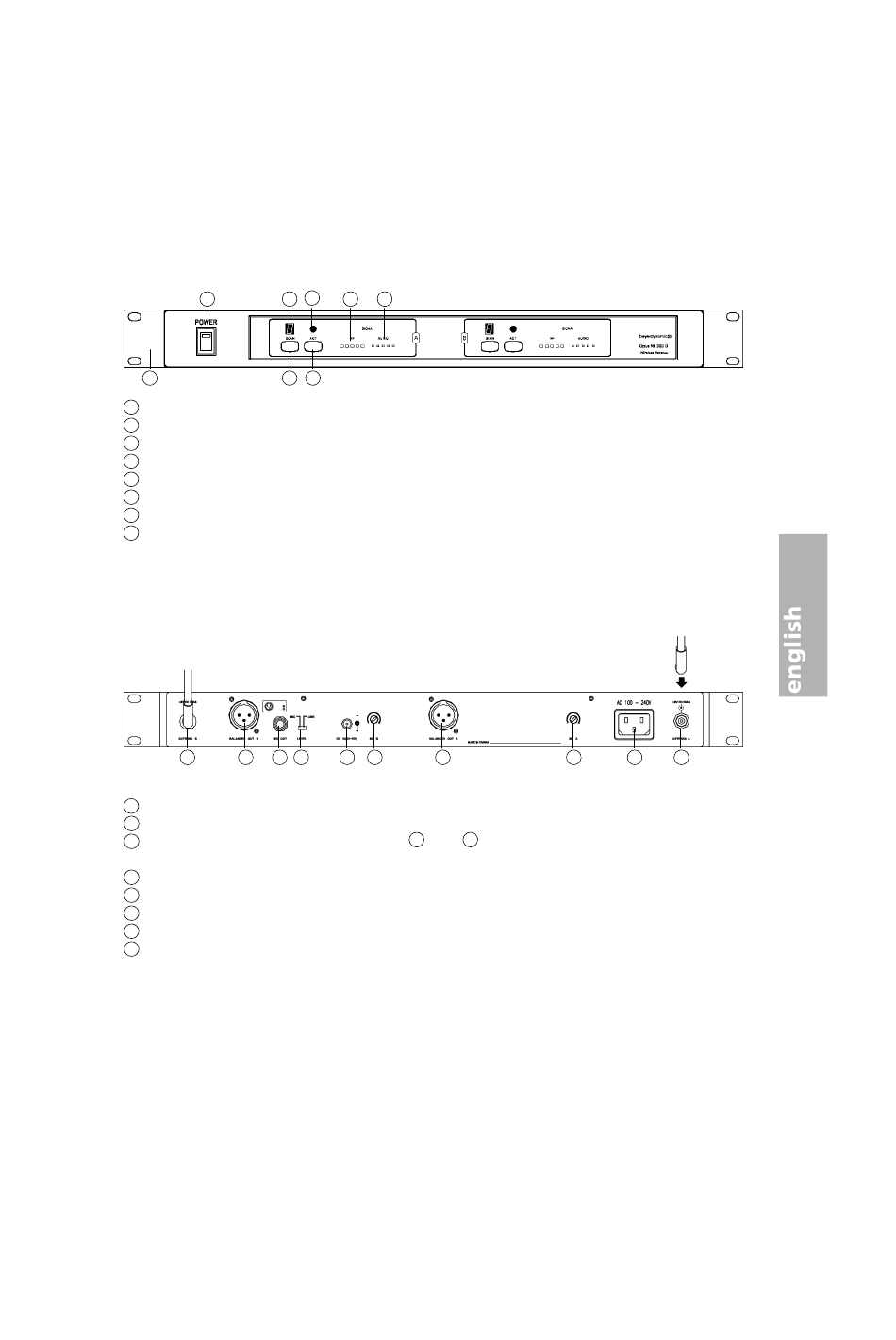

Front view - NE 300 D
1 3
8 2
On/Off-switch with LED indicator
1
Scan button
2
Channel indicator
3
RF level indicator
4
ACT indicator
5
AF level indicator
6
ACT button
7
19" rack mounting bracket (optional accessory)
8
Rear view - NE 300 D
9 10 12
Antenna input B. TNC socket. With power supply for antenna amplifier.
9
Audio output, 3-pin XLR, balanced
10
Mic/Line level switch for audio output
11
Line out level.
Audio output, 1/4" jack (6.35 mm), unbalanced
12
Variable Squelch control
13
DC connection for power supply unit, 12 V DC
14
Antenna input A. TNC socket. With power supply for antenna amplifier.
15
Power connection, 85 - 265 volts AC
16
5
4 6
7
11 14 13 10
and
10
13 16
. "Mic" for microphone level, "Line" for
12
15
