Voltage Derating Curve

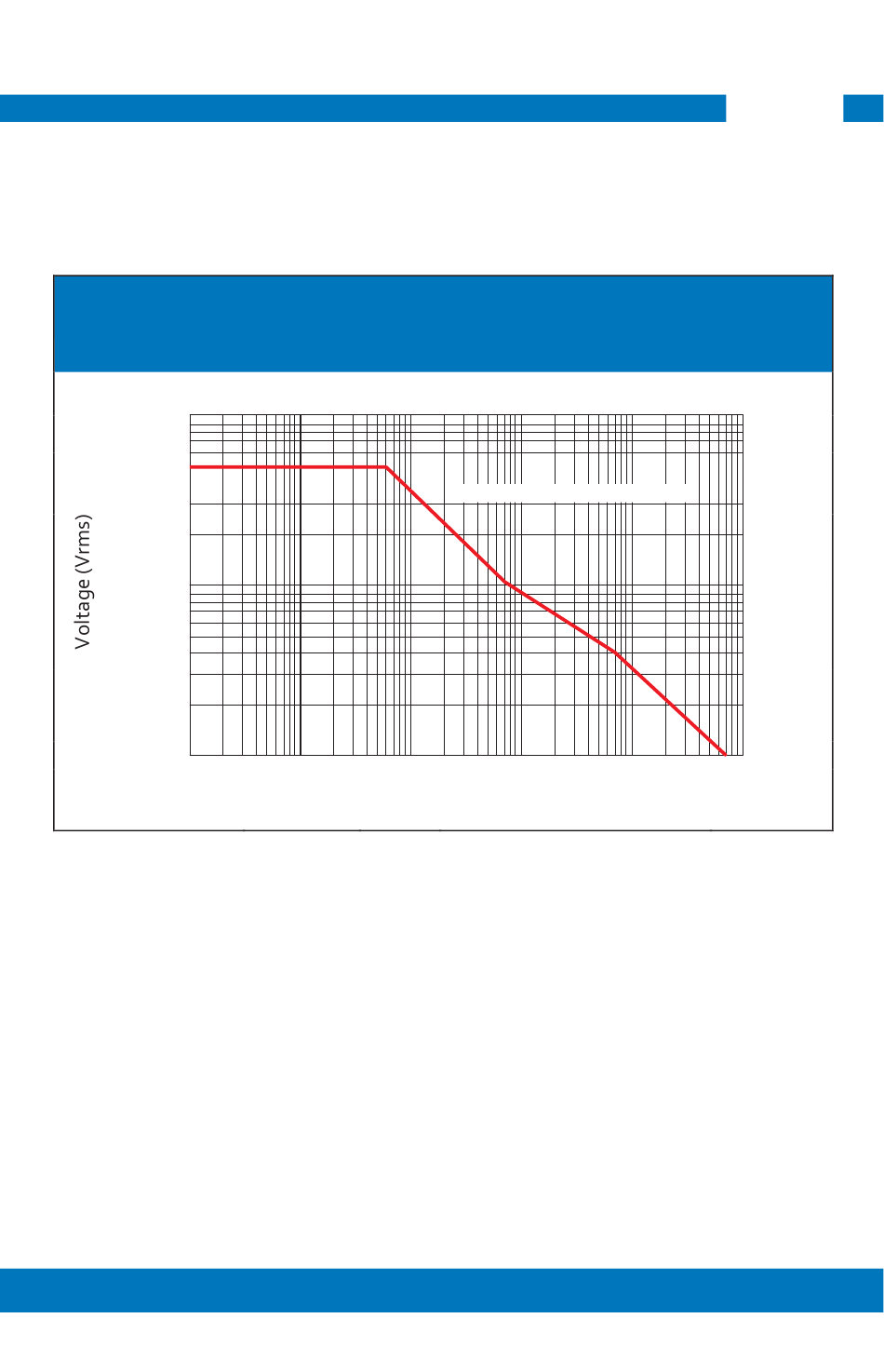

The derating curve of the absolute maximum input voltage is shown as follows:
Maximum Input Voltage Derating Curve
1000
500
100
50
10
10 kHz
Figure 12: GE1500, GE2500, and GE4500 Series Voltage Derating Curve
100 kHz
1 MHz
www.sefram.com
GE150c0, 2500, & 4500
Series
10 MHz
100 MHz
Frequency
