Tip Insulators
The tip insulators fit directly onto the probe over the probe tip.
Color Coding Rings
The matching color coding rings snap directly onto the back of the BNC connector and at
the back end of the probe body.

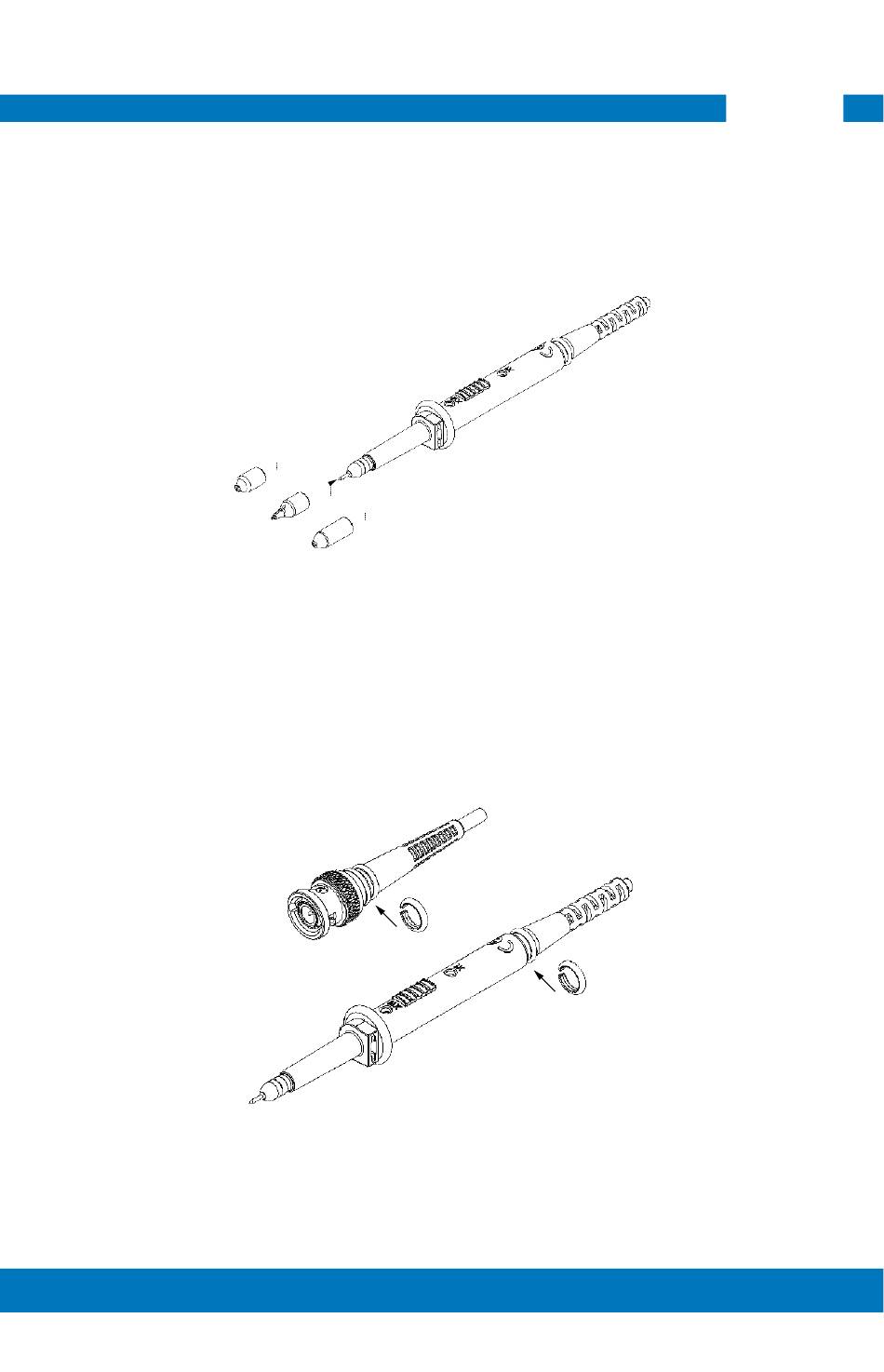

Figure 6: Tip Insulators Attachment
Figure 7: Color Coding Ring Attachment
