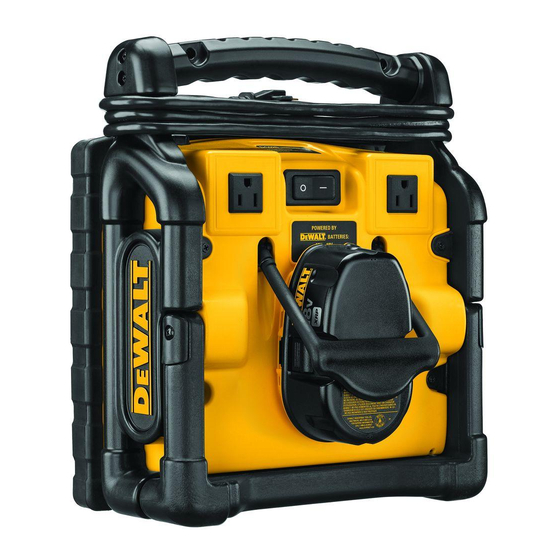

DeWalt DC020 Guide D'utilisation

D WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286
E
(JUN08) Part No. N009287
The following are trademarks for one or more D
color scheme; the "D" shaped air intake grill; the array of pyramids on the handgrip; the kit box
configuration; and the array of lozenge-shaped humps on the surface of the tool.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the
manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates a potentially hazardous situation
which, if not avoided, may result in property damage.
IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY D
CALL US TOLL FREE AT: 1-800-4-D
Important Safety Instructions
WARNING!
When using the DC020 worklight, basic precautions should
always be followed, including the following:
a. Read all the instructions before using the DC020 worklight.
b. To reduce the risk of injury, close supervision is necessary when a worklight is used near
children.
c. Do not use outdoors.
d. To disconnect, turn all controls to the off ("O") position, then remove plug from outlet.
e. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
f. Unplug from outlet when not in use and before servicing or cleaning.
g. Do not operate any worklight with a damaged cord or plug, or after the worklight
malfunctions or is dropped or damaged in any manner. Return worklight to the nearest
authorized service facility for examination, repair, or electrical or mechanical adjustment.
h. To reduce the risk of electrical shock, do not put worklight in water or other liquid. Do not
place or store worklight where it can fall or be pulled into a tub or sink.
i. Always unplug before replacing the bulb. Replace bulb with same type rated 38 Watts.
j. Connect to a properly grounded outlet. Refer to Grounding Instructions.
SAVE THESE INSTRUCTIONS
Safety Rules for Worklights
WARNING: Burn hazard. Do not operate worklight or charger near flammable liquids or in
gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personal injury.
WARNING: Shock hazard. Remove battery pack before replacing the fluorescent bulb.
• Vision may be impaired when looking directly into fluorescent light.
• Do not expose worklight to wet or damp areas. Use only in a dry locations. Do not allow
any liquid to get inside worklight. Do not submerge worklight in any liquid.
• The worklight is intended for household and commercial use.
• Do not operate without lens cover assembly attached.
• Before using battery and charger, read all instructions and cautionary markings on charger,
battery pack, and product using battery pack.
• DO NOT attempt to charge the battery pack with any chargers other than the ones in this
manual. The worklight and battery pack are specifically designed to work together.
• Pull by plug rather than cord when disconnecting worklight. This will reduce risk of
damage to electric plug and cord.
• Make sure cord is located so that it will not be stepped on, tripped over, or otherwise
subjected to damage or stress.
DC020 Copyright © 2008 D
WALT power tools: the yellow and black
E
WALT (1-800-433-9258)
E
• Do not use an extension cord unless it is absolutely necessary. Use of an improper
extension cord could result in risk of fire, electric shock, or electrocution.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for
safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is
16 gauge has more capacity than 18 gauge. When using more than one extension to make up
the total length, be sure each individual extension contains at least the minimum wire size.
• Place the worklight in a position away from any heat source.
• Do not operate worklight with a damaged cord or plug — have them
immediately.
• Do not operate the worklight if it has received a sharp blow, been dropped, or otherwise
damaged in any way. Take it to an authorized service center.
• Do not disassemble worklight. Take it to an authorized service center when service or
repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or
fire.
• Disconnect the worklight from the outlet before attempting any cleaning. This will
reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
• This worklight is designed to operate on 120 Volts, 60 Hz AC. It also operates on direct
current (DC) through a fully charged battery pack. Do not use any other voltage.
WARNING: This product contains chemicals known to the State of California to cause
cancer, birth defects, and other reproductive harm. Recycle or dispose of light bulb in
accordance with applicable state regulations. If light bulb breaks, thoroughly wash hands and
any other surface contacted.
• The label on your worklight may include the following symbols. The symbols and their
definitions are as follows:
V ...................... volts
Hz .................... hertz
min .................. minutes
............... direct current
.................... Class I Construction
........................
.................... Class II Construction
........................
.../min ............. per minute
F ...................... fahrenheit temp.
Grounding Instructions
The DC020 worklight must be grounded. In the event of malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock. The
worklight is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded
in accordance with all local codes and ordinances.
DANGER: Improper connection of the equipment grounding conductor can result in a risk of
electric shock. The conductor with insulation having an outer surface that is green with or without
yellow stripes is the equipment grounding conductor. If repair or replacement of the cord or plug
is necessary, do not connect the equipment-grounding conductor to a live terminal. Check with a
qualifed electrician or serviceman if the grounding instructions are not completely understood, or
if in doubt as to whether the worklight is properly grounded. Do not modify the plug provided with
the worklight – if it will not fit the outlet, have a proper outlet installed by a qualifed electrician.
FOR GROUNDED, CORD-CONNECTED WORKLIGHTS RATED LESS THAN 15A AND
INTENDED FOR USE ON A NOMINAL 120V SUPPLY CIRCUIT
The worklight is for use on a nominal 120V circuit,
and has a grounding plug that looks like the plug
illustrated in sketch a. A temporary adaptor, which
looks like the adaptor illustrated in sketch b, may
be used to connect this plug to a 2-pole receptacle
as shown in sketch b if a properly grounded outlet
is not available. The temporary adaptor should be
used only until a properly grounded outlet can be
installed by a qualifed electrician. The green
colored rigid ear, lug, and the like, extending from the adaptor must be connected to a permanent
WALT
E ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be
held in place by the metal screw.
Use of Extension Cords
Only use grounded extension cords that are rated for outdoor use and equipment with a third-
wire ground.
When a long extension cord is used to connect a worklight or tool, a voltage drop occurs. The
longer the cord, the greater the voltage drop. This results in less voltage being supplied to the
worklight or tool and increases the amount of current (amp) draw or reduces performance. A
heavier cord with a larger wire size will reduce the voltage drop. Be sure to choose a cord that will
supply enough voltage to operate your tool or worklight. The tables below indicate appropriate
gauge for extension cords and the voltage drop caused by the use of extension cords, given
different electrical loads.
WARNING: Keep electrical cords in good condition. Do not use worn, bare, or frayed cords
because they can cause electrical shock.
WARNING: Operating equipment at low voltage can cause it to overheat. Using an
excessively long extension cord can cause the cord to overheat.
WALT TOOL,
E
Volts
120V
240V
Ampere Rating
0–10 (A)
10–13 (A)
13–16 (A)
16–25 (A)
25–30 (A)
Extension
Cord Amp
Length Load
25
Foot
50
Foot
100
Foot
150
Foot
Important Safety Instructions for Battery Packs
The DC020 will provide light using 12–18 Volt D
lithium ion battery packs.
When ordering replacement battery packs, be sure to include catalog number and voltage.
Extended Run-Time battery packs deliver more run-time than standard battery packs. Consult the
chart in this manual for compatibility of chargers and battery packs.
The battery pack is not fully charged out of the carton. Before using the battery pack and
worklight, read the safety instructions below. Then follow charging procedures outlined.
• Charge the battery packs only in D
• DO NOT splash or immerse in water or other liquids.
A ......................amperes
W .....................watts
...................alternating current
...................alternating or direct current
n o ....................no load speed
(grounded) .....................earthing terminal
....................safety alert symbol
(double insulated) BPM.................beats per minute
RPM ................revolutions per minute
C ......................celsius temp.
SAVE THESE INSTRUCTIONS
MINIMUM GAUGE FOR EXTENSION CORD SETS
Total Length of Cord in Feet
0–25 26–50
0–50 51–100
AWG
16 16
16 16
14 14
12 12
10 10
Voltage Drop
16 AWG 14 AWG
10A 2.0 1.3
15A 3.0 1.9
20A 4.0 2.5
30A 6.0 3.8
10A 4.0 2.5
15A 6.0 3.8
20A 8.0 5.0
30A 12.0 7.5
10A 8.0 5.0
15A 12.0 7.5
20A 16.0 10.0
30A 24.0 15.0
10A 12.0 7.5
15A 18.0 11.3
20A 24.0 15.0
30A 36.0 22.5
WALT nickel cadmium, nickel metal hydride and
E
READ ALL INSTRUCTIONS
WALT chargers.
E
replaced
a b
GROUNDED
OUTLET
BOX
GROUNDING PIN
ADAPTER
51–100 101–150
101–200 201–300
14 14
14 12
12 12
12 10
10 Not Recommended
12 AWG 10 AWG
0.8 0.5
1.2 0.8
1.6 1.1
2.3 1.6
1.6 1.1
2.3 1.6
3.1 2.1
4.7 3.2
3.1 2.1
4.7 3.2
6.2 4.2
9.3 6.3
4.7 3.2
7.0 4.7
9.3 6.3
14.0 9.5
