Stakeless ground loop measurement

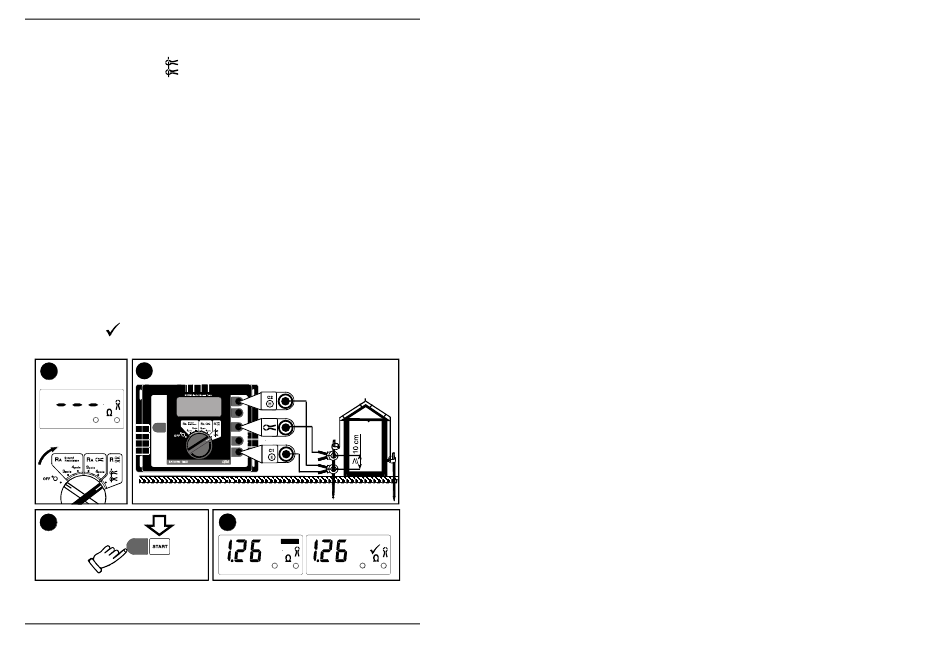

8 Stakeless ground loop measurement
Œ Œ Œ Œ

Select function

Display as shown below.

Connect test clips
Connect inducing clamp (see Recommended Accessories) to terminals H/C2
and E/C1 using the safety test leads (1.5m) as shown.
Hint: Use the recommended current clamp for incucing only. Other clamps are not
suited.
Connect the second current clamp using the adapter cable (sensing current
clamp).
The test current clamp must enclose the earth electrode, which will
subsequently be measured.
Hint: Minimum distance between the two current clamps is 10 cm.
Ž
Press START
The "active" symbol indicates that measurement is in progress. For
continuous measurement keep START pressed.

Symbol " " indicates completed measurement. The result is kept on
display until a new measurement is started or the rotary switch is turned.
1 2
E H
plu s
3
max 50 V
4
active
E H E H
- 11 -
