1. Before installing the hob to the worktop, the adhesive seal has to be fixed on
the bottom edge of the hob properly.

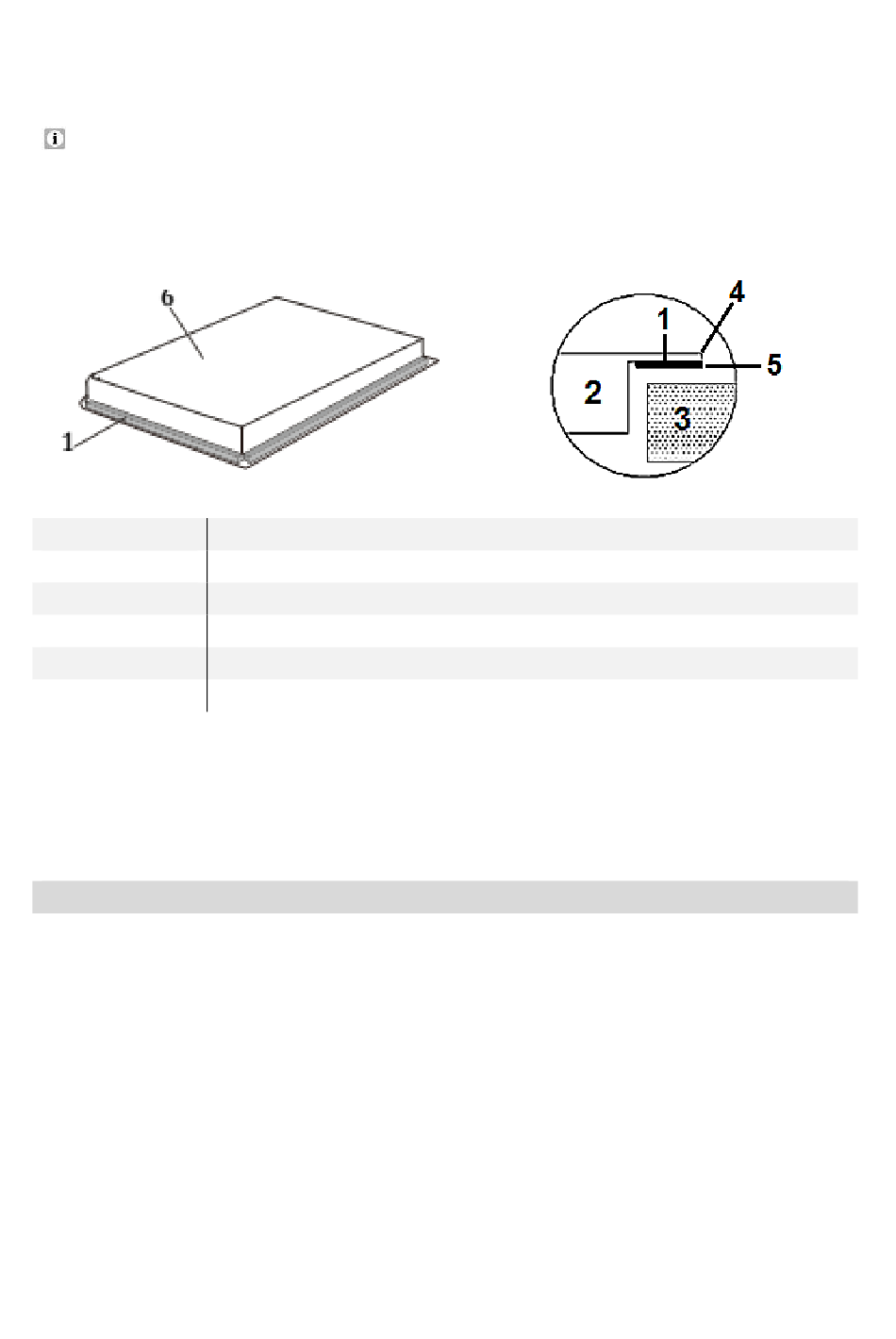

The seal has to be fixed properly. The outer side of the seal must match the
bottom outer edge of the hob (s. fig. below). The seal must be fitted tightly on
the bottom edge of the hob (no overlaps, no gaps etc.) to prevent liquids etc.
from entering the installation opening subsequently.
1
2
3
4
5
6
2. Insert the hob into the installation opening and push it downward carefully until
the hob is in firm contact to the worktop.
3. Fix the hob at the bottom of the worktop using the fixing brackets (s. below).
M
1. Mount the fixing brackets at the bottom of the hob using the appropriate
screws.
2. Screw one end of the fixing brackets into the predrilled holes at the bottom
of the hob (as shown below in fig 1 or 2).
Seal
Hob
Worktop
Outer edge of the hob
Outer side of the seal
Bottom of the hob
OUNTING OF THE FIXING BRACKETS
