2.3 Selection of installation equipment / Dimensions

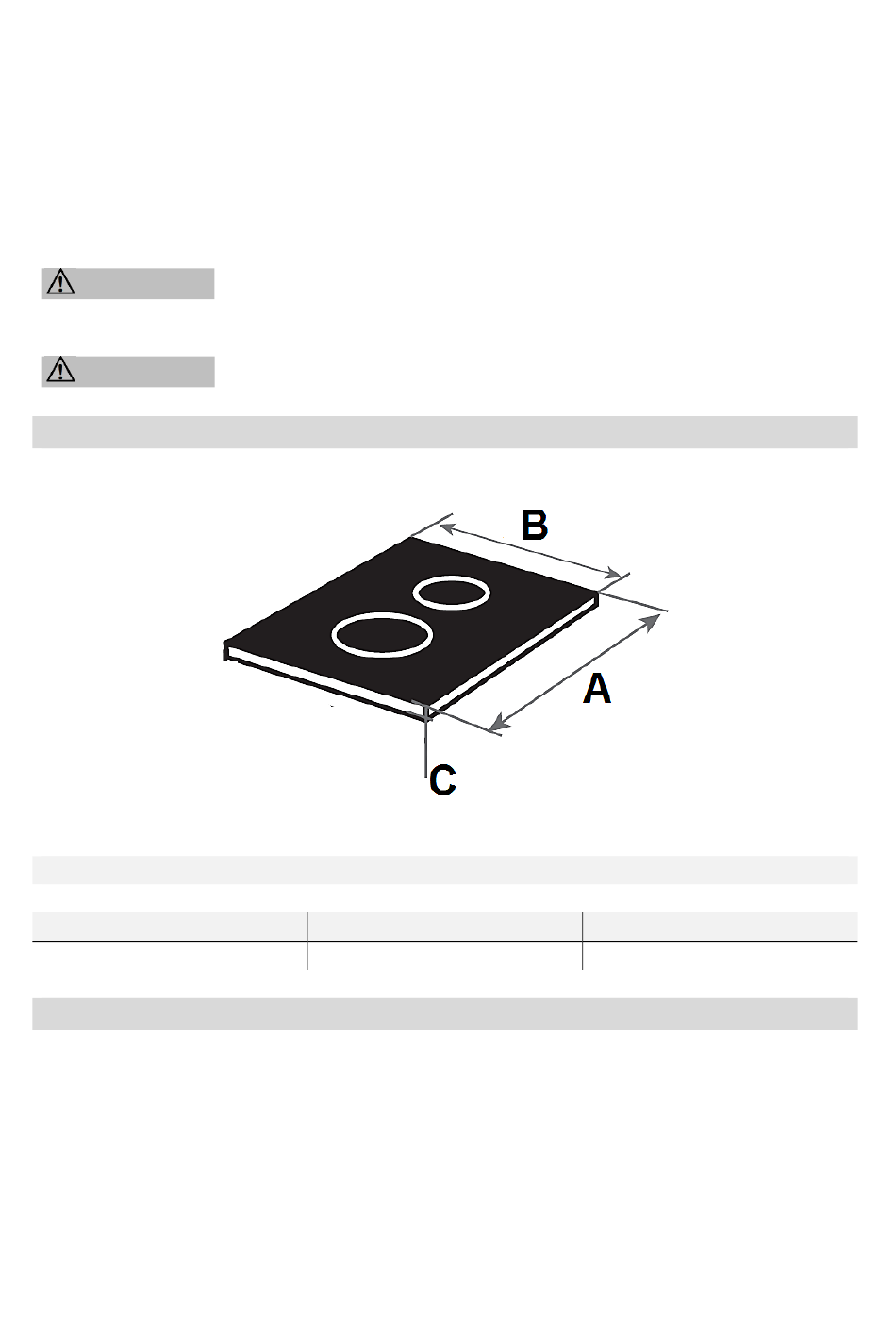

Cut out the installation hole as described on the drawing below. For installation
and use, a minimum of 50 mm space shall be preserved around the hole. The
thickness of the work top should be at least 30 mm. Choose heat-resistant materials
for the work top only to avoid any deformation caused by the heat-radiation of the
appliance.
WARNING! The safety distance between the hob and a wall
cupboard above should be at least 450 mm.
WARNING! The safety distance between the hob and an extractor
hood above should be at least 760 mm.
A
520 mm
D
IMENSIONS OF THE INSTALLATION OPENING
D
IMENSIONS OF THE
A 1= D / B 1 = W
EPTH
H
OB
/ C = H
IDTH
B
288 mm
46
:
EIGHT
C
44 mm
:
