Acksys AirLink V2 Guide D'installation Rapide page 31

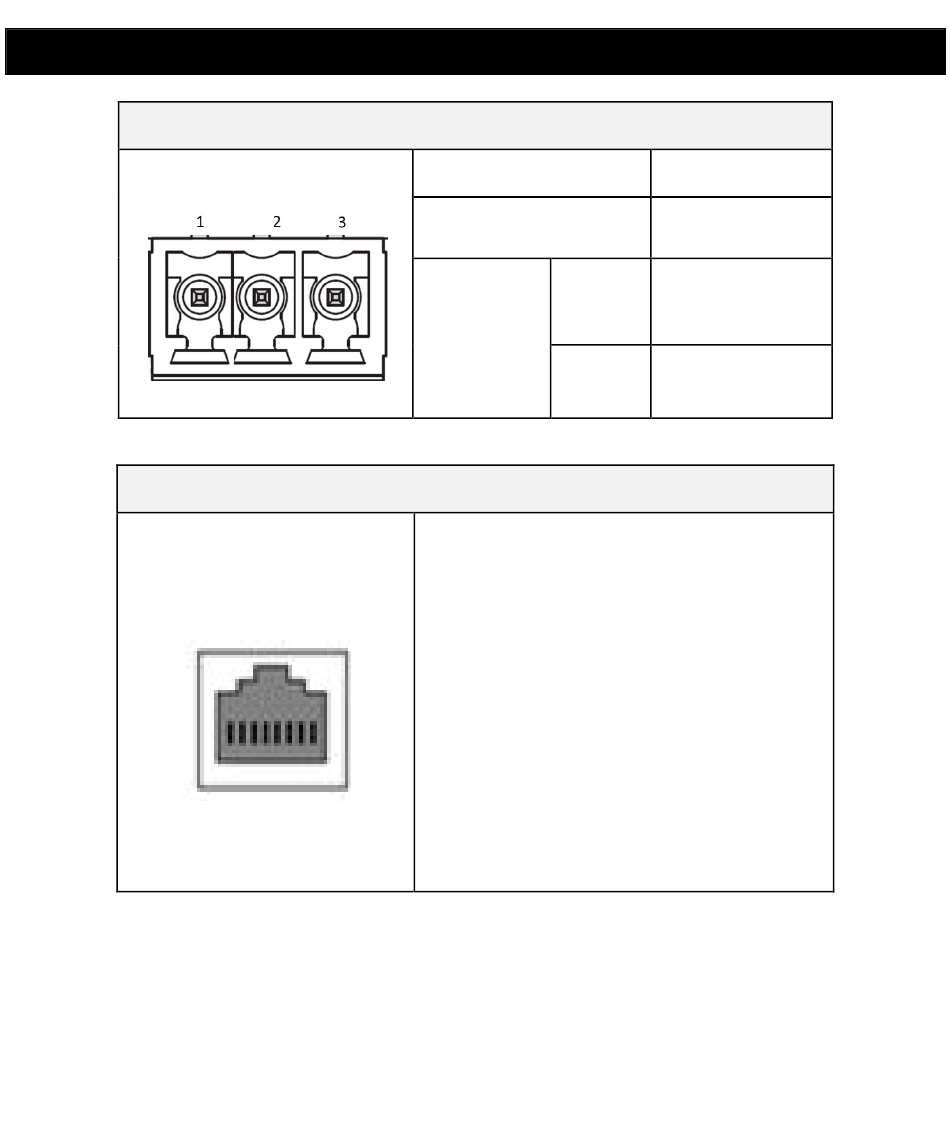

3-way terminal block
connector
Ref : MC 1,5/3-G-3.5
RJ-45 female connector
CONNECTORS
Power supply
Signal Name
EARTH
PWR
LAN (Ethernet)
LAN is an Ethernet PoE port.
This port supports the Auto-negotiation
function. They can automatically select
the transmission speed (10 Base-T,
100 Base-Tx or 1000 Base-T Half/Full
Duplex). It enables to the device to
coexist in the network by mitigating the
risks of network disruption arising from
incompatible technologies.
-11-
Pin
1
VIN+ 2
VIN- 3
