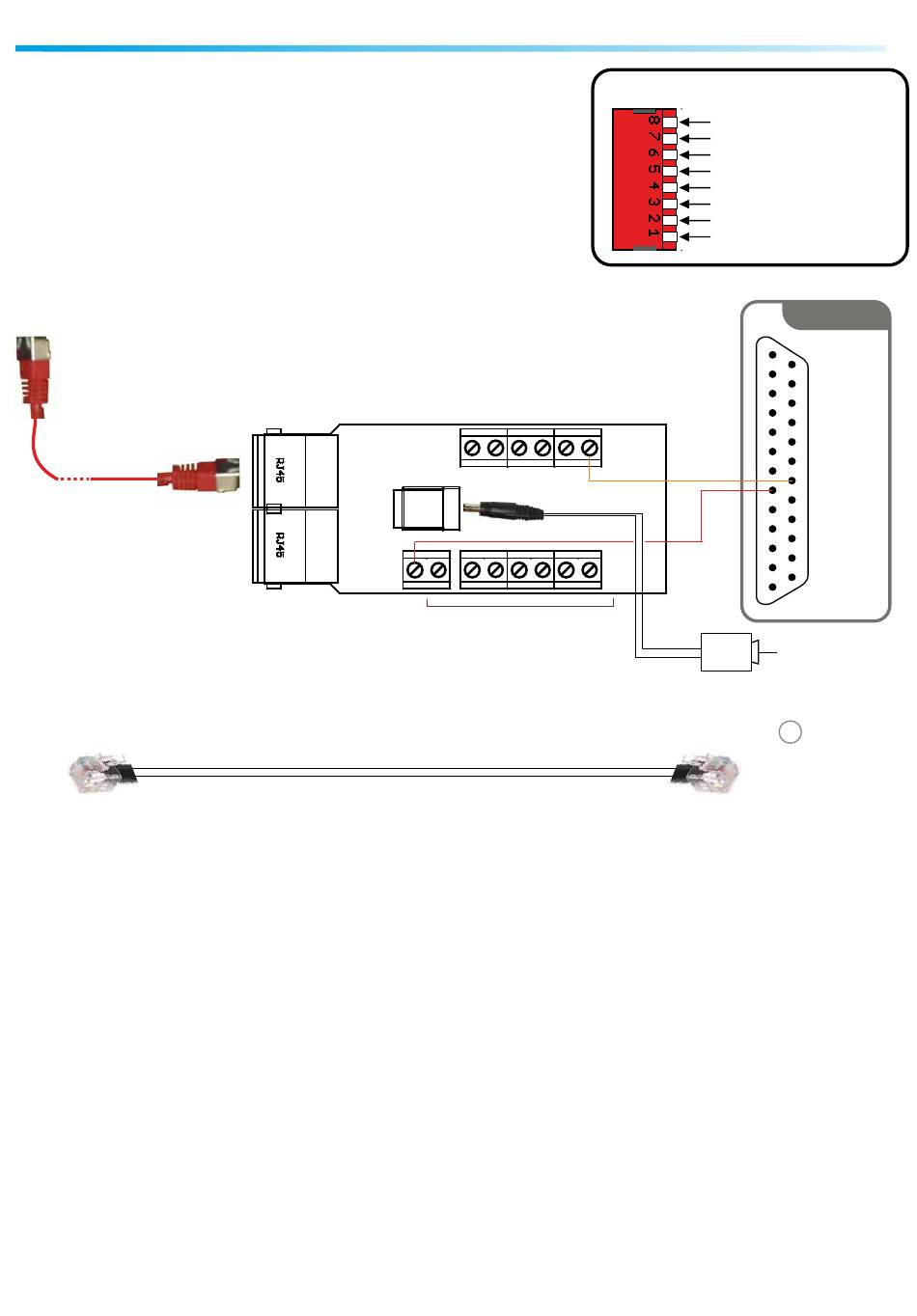

WIRING: RGL300 with PJO300/550/600/700/750

Wiring with PJO700.
Operation with 3 rings
Works with a red ring and a green ring.
Yellow ring control for the telephone line.
- Red ring ON  green ring OFF
- Red ring OFF green ring ON
RJ45
to RGL300
RJ45
RJ11
To RGL300
ENGLISH
ASM110
+24V
1 2 3 4 5 6
GND
16
next
DIP8 programming
On
On
High or low light intensity
Off
Off
Off
Off
Off
PJO 700
1
14
20
8
25
25 pts
13
male plug
PS
230V
24V
RJ11
to conector I of PJO700
Rami - RGL300
