OPERATING PROCEDURES

SET UP
See the recommended air system setup below (Fig.7).
Make sure that the couplers are set up so that the air hose is depressurized when
adding or removing components from the system.
Cleat nailer /
Stapler

AIR SOURCE

The nailer / stapler is designed to operate on clean, dry, compressed air,

regulated at 70 - 110 PSI. The preferred system would include a filter, a
pressure regulator, and an automatic oiler located as close to the tool as
possible. Within 15 feet (4.6 m meters) is ideal. Do not use bottled air or gases.
All compressed air contains moisture and other contaminants that can harm

the internal components of the tool. An air line filter will remove most of these
and signiffcantly extend the life of the tool. If you are using an in-line automatic
oiler, check and add oil if necessary. If an in-line oiler is not available, place 2
drops of oil into the tool's air plug (Fig.8) at the beginning of each workday.
Any extra oil will be expelled from the tool's exhaust during firing.
Air fitting: The nailer / stapler should be equipped with a 1/4" NPT male 'quick

connector'. To prevent accidental cycling even though disconnected, the tool
must always be connected to the air supply in such a way that all air pressure
in it is released when the coupling is disconnected.
CHECKING THE TOOL BEFORE EVERY USE
WARNING! An improperly functioning tool must not be used. Nailer may cycle
if hammer cap on the nailer is in down position.
1. Check nailer and make sure to empty the magazine completely before connecting
air supply.
2. Connect the air supply to check that the nailer works correctly. Strike the hammer
cap with the provided mallet to make sure a nail is fired.
LOADING THE FASTENERS
WARNING!
 Keep the tool pointed away from yourself and others at all times.
 Do not load fasteners with hammer cap depressed.
 Always wear approved safety glasses and hearing protection when
preparing or operating this tool.
 Never use a tool that leaks air or needs repair
 Be sure the tool is disconnected from the air supply BEFORE loading fasteners.
22
Quick Connector
Air Line
Oiler Filter
Regulator
,
Air Supply

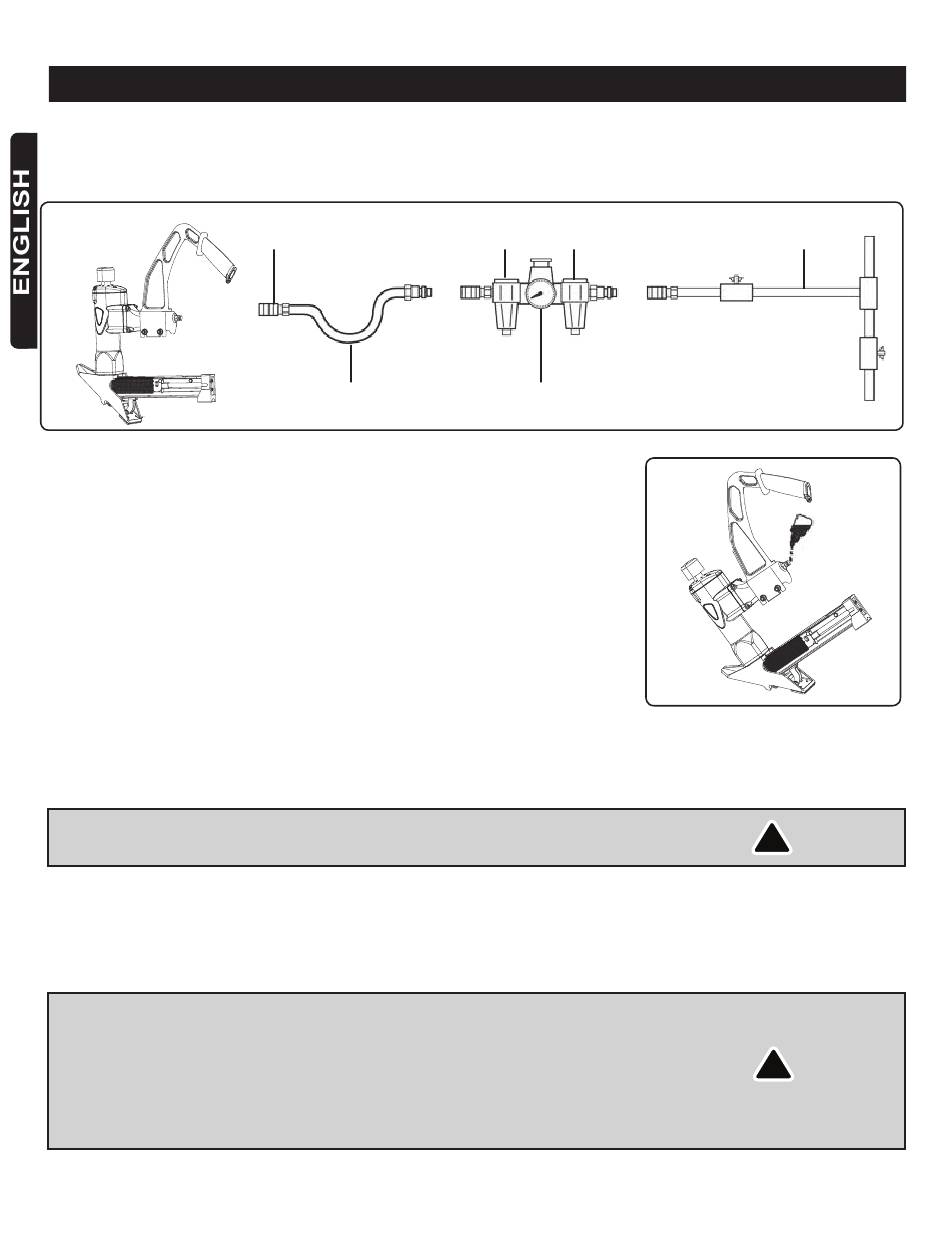

Fig.7
