▶ Screw the cable holder shield support using the screws.

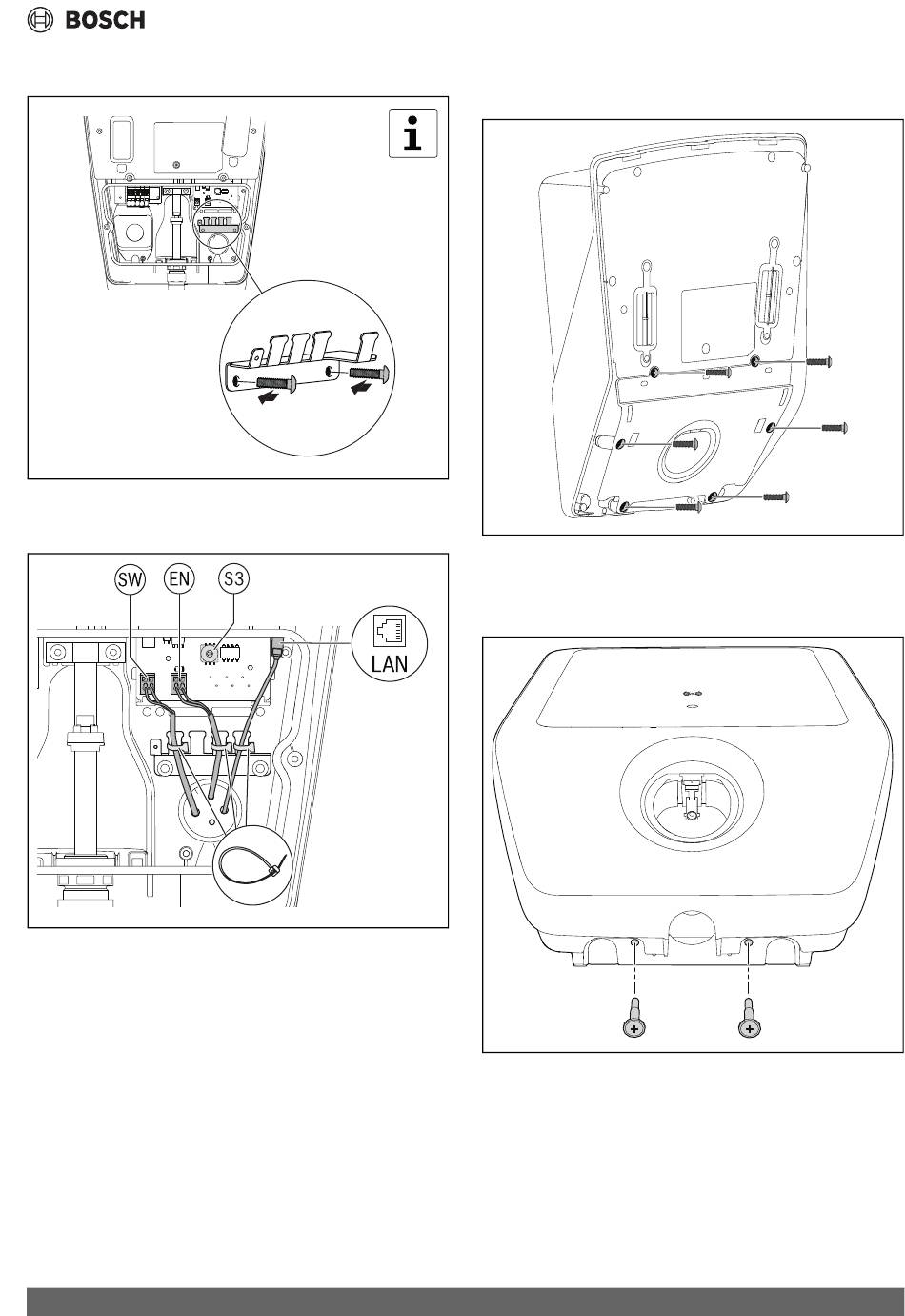

Fig. 39
Cable holder installation
▶ Perform the internal interface connections.
Fig. 40
Optional internal interfaces connections
[1] Digital output (SW)
[2] Digital input (EN)
[3] Ethernet connection
Power Charge 7000i – 6721849906 (2022/11)
≤2,5 Nm
0010044546-001
0010044548-001
Installation (only for approved contractors)
▶ Place the parking holder at the front of the Power Charge
7000i using six screws.
Fig. 41
Parking holder installation
▶ Place the front cover of the Power Charge 7000i in the right
position and screw it using two screws.
Fig. 42
Front cover installation
≤2 Nm
0010044551-001
≤1 Nm
0010044590-001
35
