Données de diagnostic
sauvegardées
Aperçu
La fonction Saved Diagnostic Data permet à l'utilisateur
de vérifier les données précédemment enregistrées.
ss03121
Connected
Main Menu
Select Vehicle
Saved Diagnostic Data
System Settings
All Apps

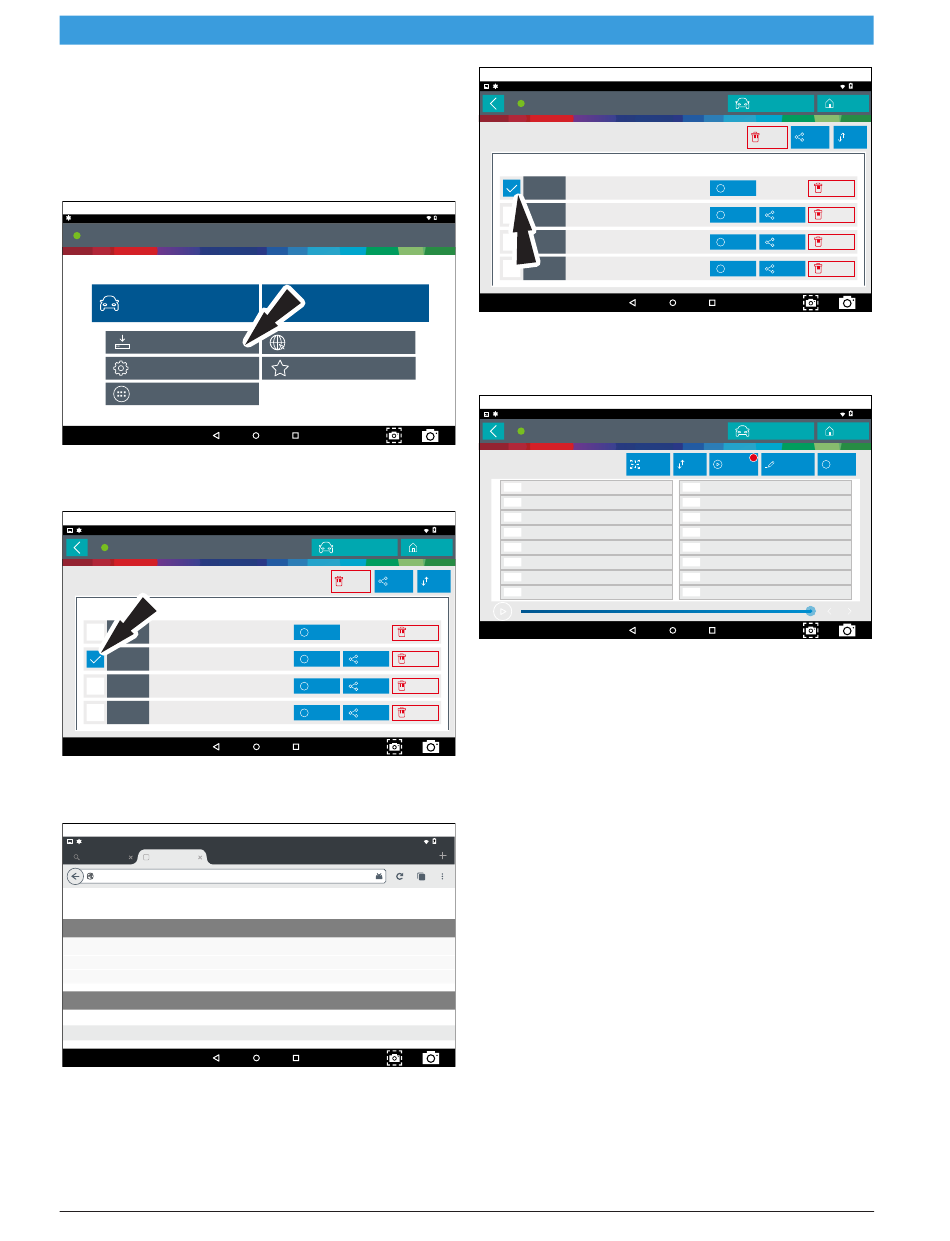

1. Sélectionnez Saved Diagnostic Data à l'écran Main
Menu.
ss03122
Connected to 2008 Ford F-150 King Ranch 5.4L
Saved Diagnostic Data
05/31/2018
2008 Ford F-150
11:15 AM Recorded Data Stream PCM PATS
DTC Scan Report
11:15 AM
Automated System Test
11:16 AM
11:14 AM DTC Report PCM PATS
2. Naviguez jusqu'au test enregistré souhaité.
3. Sélectionnez un fichier spécifique.
ss03123
Firefox Home file:///storage/em
file:///storage/emulated/0/data/com.bosch.mrst_launcher.control.fragment/files/reports/allSystemDtcS
DTC SCAN REPORT
VEHICLE INFORMATION
2008 Ford F-150 King Ranch 5.4
VIN
Scan Type
DTCS
PCM / PATS
B10A2 Current Codes
4. Affichez le rapport. Lorsque vous avez terminé,
appuyez sur le bouton Précédent.
1699501022 | RÉV. A | 07,2018
