Assembly instructions, EduKit PA Basic

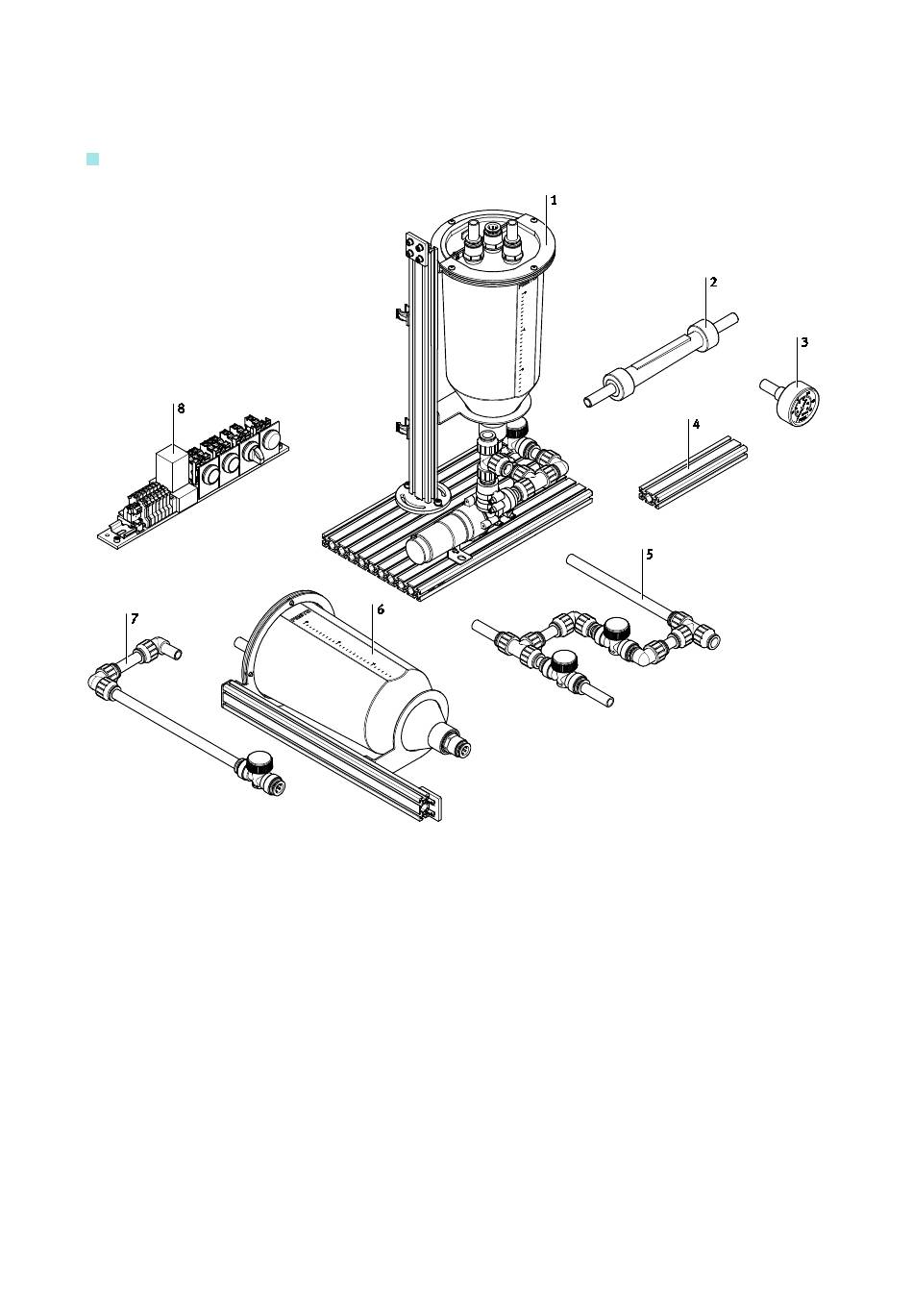

Systainer contents
1: Profile plate, pump, pipes, connectors, manual valves and lower tank
2: Rotameter
3: Pressure gauge
4: Profile (20 x 40 x 180 mm)
5: Pipes, connectors, manual valves
6: Upper tank
7: Pipes, connectors, manual valves
8: Electrical actuation, complete
