ASSEMBLY
Recharge only with the charger
WARNING
specified for the battery. For spe-
cific charging instructions, read the operator's
manual supplied with your charger and battery.

Removing/Inserting the Battery

To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
Always lock the trigger or remove
WARNING
the battery pack any time the tool
is not in use.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
Only use accessories specifically
WARNING
recommended for this tool. Others
may be hazardous.
Installing Bits
NOTE: Only use accessories with SDS or SDS Plus
shanks.
Be sure that the shank of the bit is clean. Dirt particles
may cause the bit to line up improperly. Do not use
bits larger than the maximum recommended capacity
of the drill because gear damage or motor overload-
ing may result. For best performance, be sure that
the bit is properly sharpened and the shank is lightly
greased before use.
1. Insert the bit into the nose of the tool.
2. Rotate bit slowly until it aligns with the locking
mechanism.
3. Push bit into tool until it locks.
4. Check that the bit is locked properly; it should be pos-
sible to pull the bit back and forth slightly (about 1/4").
5. To remove bits, pull bit holder release collar toward
the rear of tool and remove bit.
NOTE: Use caution when handling hot bits.
OPERATION
To reduce the risk of injury, always
WARNING
remove battery pack before chang-
ing or removing accessories. Only use acces-
sories specifically recommended for this tool.
Others may be hazardous.
Keep hands away from the bit and all moving
parts.
Always wear proper eye protection marked to
comply with ANSI Z87.1.
When working in dusty situations, wear appro-
priate respiratory protection or use an OSHA
compliant dust extraction solution.
Fuel Gauge
To determine the amount of charge left in the battery,
turn the tool ON. The Fuel Gauge will light up for 2-3
seconds. When less than 10% of charge is left, 1 light
on the fuel gauge will flash 4 times.
To signal the end of charge, 1 light on the fuel gauge
will flash 8 times and the tool will not run. Charge
the battery pack.
If the battery becomes too hot, the fuel gauge lights
will flash and the tool will not run. Allow the battery
to cool down

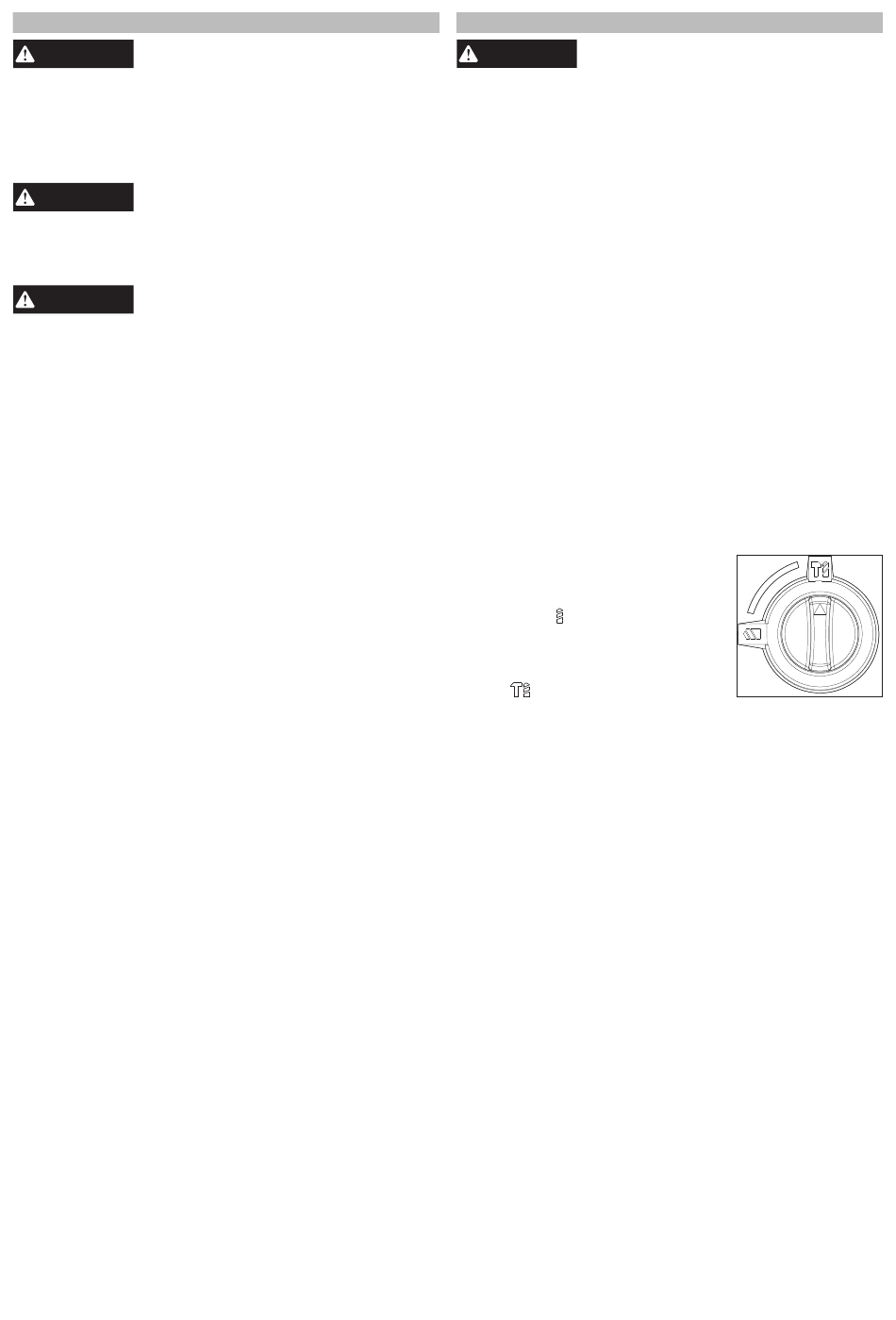

Selecting Action
Always allow the motor to come to a complete stop
before changing the mode selection to avoid damage
to the tool.
1. For drilling, turn the mode se-
lector so the arrow points to the
twist drill symbol.
2. For rotary hammering, turn the
mode selector so the arrow
points to the hammer and twist
drill symbol.
NOTE: To engage the hammering mechanism, main-
tain pressure on the bit. When pressure on the bit is
released, the hammering action will stop.
Using the Control Switch
The control switch may be set to three positions:
forward, reverse and lock. Always allow the motor
to come to a complete stop before using the control
switch to avoid damage to the tool.
1. For forward (clockwise) rotation, push in the con-
trol switch from the right side of the tool. Check
the direction of rotation before use.
2. For reverse (counterclockwise) rotation, push in
the control switch from the left side of the tool.
Check direction of rotation before use.
3. To lock the trigger, push the control switch to the
center position. The trigger will not work while
the control switch is in the center locked position.
Always lock the trigger or remove the battery pack
any time the tool is not in use.
