Lifetime 90804 Instructions D'assemblage

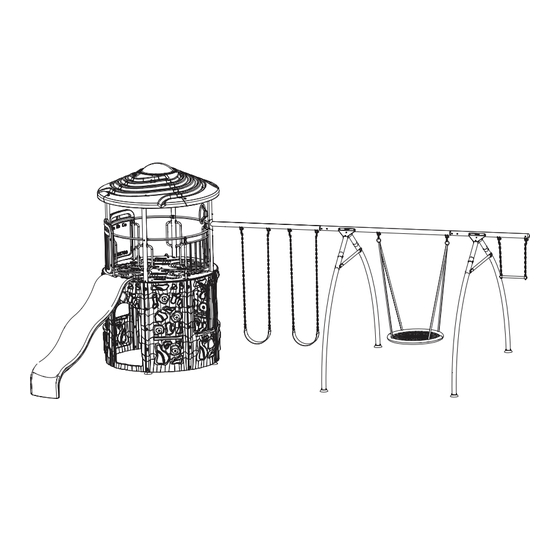

ADVENTURE TOWER
PLAYSET WITH
SPIDER SWING
MODEL #60091
MODEL 90804
BEFORE ASSEMBLY:
• Prepare a level surface with the proper safety zone
(see page 12).
• 3+ people recommended for setup.
• Inspect all parts and hardware. Ensure all are
included using the Parts Identifier in the middle
of these instructions. The Parts Identifier , in
yellow, can be removed from the instructions for
quick reference.
WARNING: Only for domestic use.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED
(1)
(2)
3/8" (≈10 mm)
(1)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
(English, French, Spanish)
1/2" (≈13 mm)
(2)
3/16" (≈5 mm)
(1)
(2, included)
(3)
(1)
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For customer service in mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
ADDITIONAL ASSEMBLY HELP
ASSEMBLE IT WITH THE FREE BILT INTELLIGENT
INSTRUCTIONS APP
IN THE APP, SCAN OR SEARCH #1209377
9/32" (≈7 mm)
(1)
(1)
(1)
(1)
MODEL# AND PRODUCT ID
Model Number: 90804
Product ID:
TABLE OF CONTENTS
Icon legend................................4
Warnings & notices.....................5
Safety information.....................6
Safe play area...........................12
Tower frame assembly..............13
Swing bar assembly..................27
Deck assembly..........................36
Parts identifi er..........................i-iv
Roof assembly..........................52
Tower walls assembly................59
Climber, slide & swing
assembly............................70
Anchor kit installation...............79
Maintenance instructions..........84
Registration...........................87
Warning sticker........................88
Warranty..............................89
(you will need both when contacting us)
