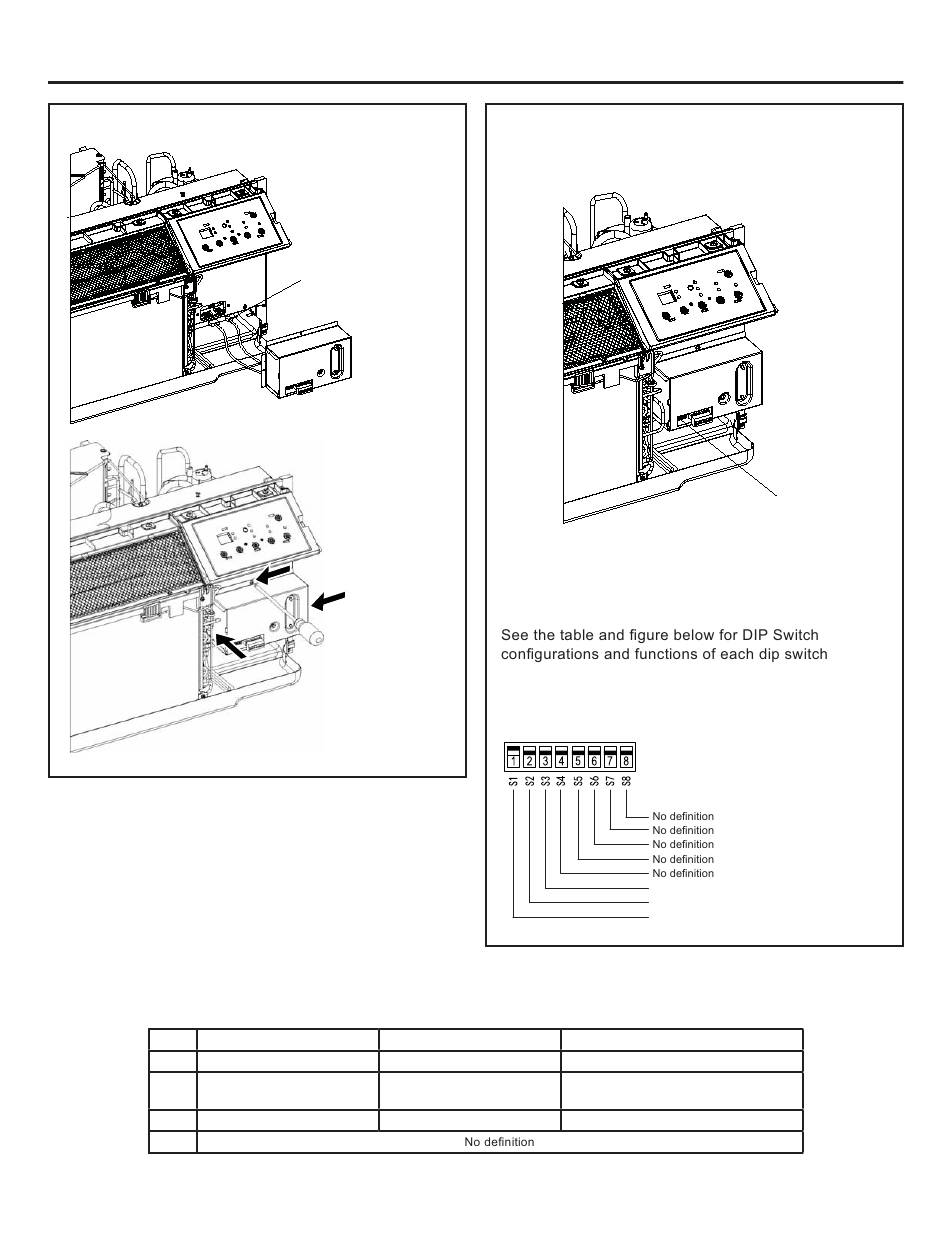

• ASSEMBLE THE 24V INTERFACE KIT
No.
S1
Wall Thermostat Enable
S2
Electric Heat Only
S3
Low temp. Protection disable
S4-S8
Installation Instructions
Connect the
terminals
Take care to make
sure no wires are
pinched during
assembly
Install screws
DIP SWITCH CONFIGURATION TABLE
UP (ON)
DOWN (OFF)
Control Panel Enable
Electric Heat and Pump Heat
Low temp. Protection enable
Page 2
• SET THE DIP SWITCHES
DIP switches are accessible without opening the
control box.
Unit must be powered OFF to change dip switch
settings.
DIP SWITCH CONFIGURATIONS
position.
(Factory default switch positions (darkened portion)
shown)
Low temp. Protection disable/enable
Electric Heat Only/Electric Heat and Pump Heat
Wall Thermostat Enable/Control Panel Enable
Remarks
Default Wall Thermostat Enable
Default Electric Heat and Pump Heat
For Heat Pump unit only.
Default Low temp. Protection enable
DIP Switches
UP (ON)
DOWN (OFF)
31-5000915 Rev. 0
