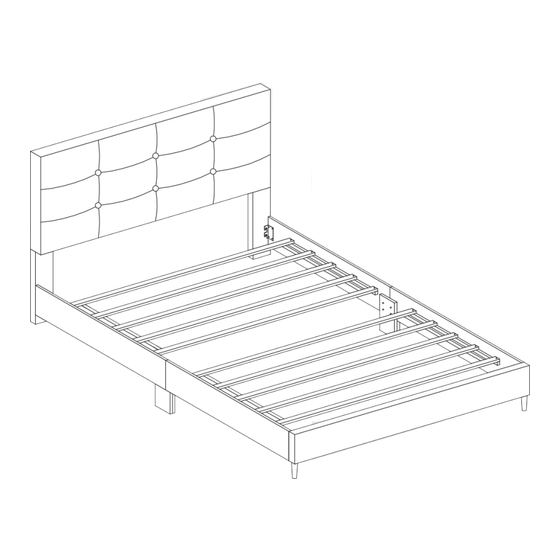

- Page 1 Twin Size Bed Frame Cadre de lit Double HU10569-T THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
- Page 2 Before You Start Please read all instructions carefully. Retain instructions for future reference. Separate and count all parts and hardware. Read through each step carefully and follow the proper order. We recommend that, where possible, all items are assembled near to the area in which they will be placed in use, to avoid moving the product unnecessarily once assembled.
- Page 3 COMPONENT LIST / LISTE DES PIÈCES Headboard Footboard Side Rail /Tête de lit /Pied de lit /Barre latérale Headboard Legs Footboard Legs /Pieds de tête de lit /Pieds de lit No.99-60x150(H) 575x80x20mm Side Rail Legs 10PCS Slat /Pieds de la barre latérale /10PCS Lamelles 240x80x30mm 997mm...
- Page 4 HARDWARE LIST / LISTE DES ACCESSOIRES Screw /Vis Spring Washer Flat Washer 32mm /Rondelle élastique /Rondelle plate M8x20 M6x30 M6x50 Allen Key Allen Key /Clé Allen /Clé Allen 70mm 65mm...
- Page 5 Attention: Zip the black non-woven fabric after taking out the parts ! /Attention: Fermez la fermeture éclair du tissu noir non tissé après avoir retiré les pièces! BACK VIEW /VUE DE L'ARRIÈRE EN: Unzip the black non-woven fabric on the back of headboard and take out all the parts out.
- Page 6 BACK VIEW /VUE DE L'ARRIÈRE EN: Fix the headboard (1) and footboard (2) with legs (4,5) as shown. FR: Fixez la tête de lit (1) et le pied de lit (2) avec les pieds (4,5) comme indiqué.
- Page 7 FRONT VIEW /VUE DE L'AVANT EN: Attach the Bolt (D) to the headboard (1) and footboard (2). FR: Fixez le boulon (D) à la tête de lit (1) et au pied de lit (2).
- Page 8 EN: Attach the side rail leg (6) to the side rail (3). FR: Fixez le pied de la barre latérale (6) à la barre latérale (3).
- Page 9 EN: Attach side rail (3) to headboard (1) and footboard (2) by pushing the bracket down to fit it. FR: Fixez la barre latérale (3) à la tête de lit (1) et au pied de lit (2) en poussant le support vers le bas pour l'ajuster.
- Page 10 EN: Tighten the 4 Corner with Allen Key (G). Install the bed slats to side rail. Tighten the slats with screw. The distance of the slats should be sufficient to obtain desirable bed stability. FR: Serrez les 4 coins à l'aide de la clé Allen (G). Installez les lattes de lit sur la barre latérale.
- Page 11 Return / Damage Claim Instructions DO NOT discard the box / original packaging. In case a return is required, the item must be returned in original box. Without this your return will not be accepted. Take a photo of the box markings. A photo of the markings (text) on the side of the box is required in case a part is needed for replacement.
