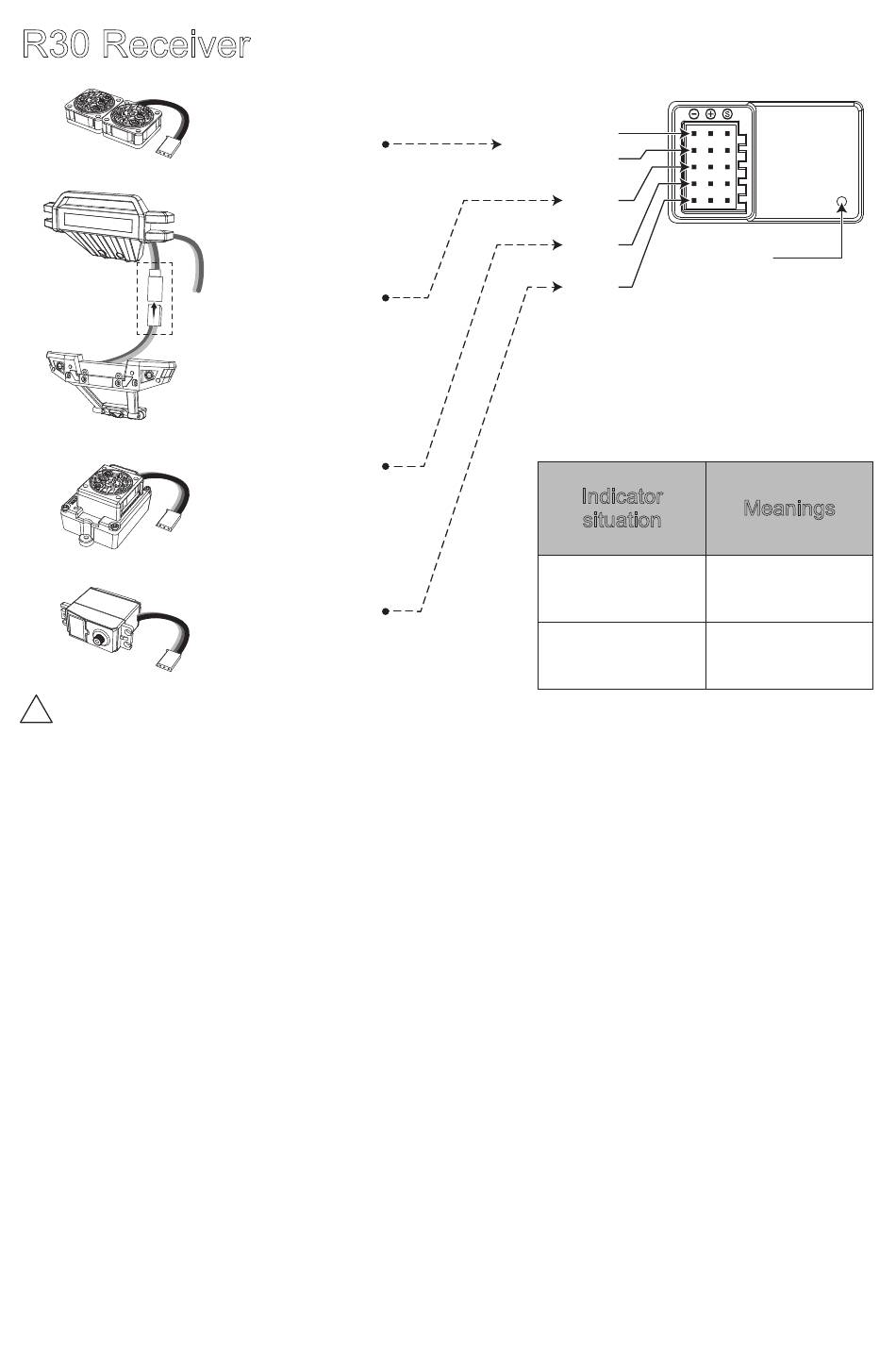

R30 Receiver
Warning: Please make sure the connection is correct.
!
Fan
(VCC/FAN)
Front bumper
Rear bumper
ESC
Steering
servo
VCC/FAN
VCC/FAN
CH3
CH2
CH1
VCC/FAN: Power Interface
Indicator
situation
Stays on
Flashes
- 26 -
VCC/FAN
VCC/FAN
CH3
CH2
R3B
CH1
Antenna
(Please make
sure it in vertical
direction)
(VCC=5-6V)
Meanings
Signaled
No Signal
