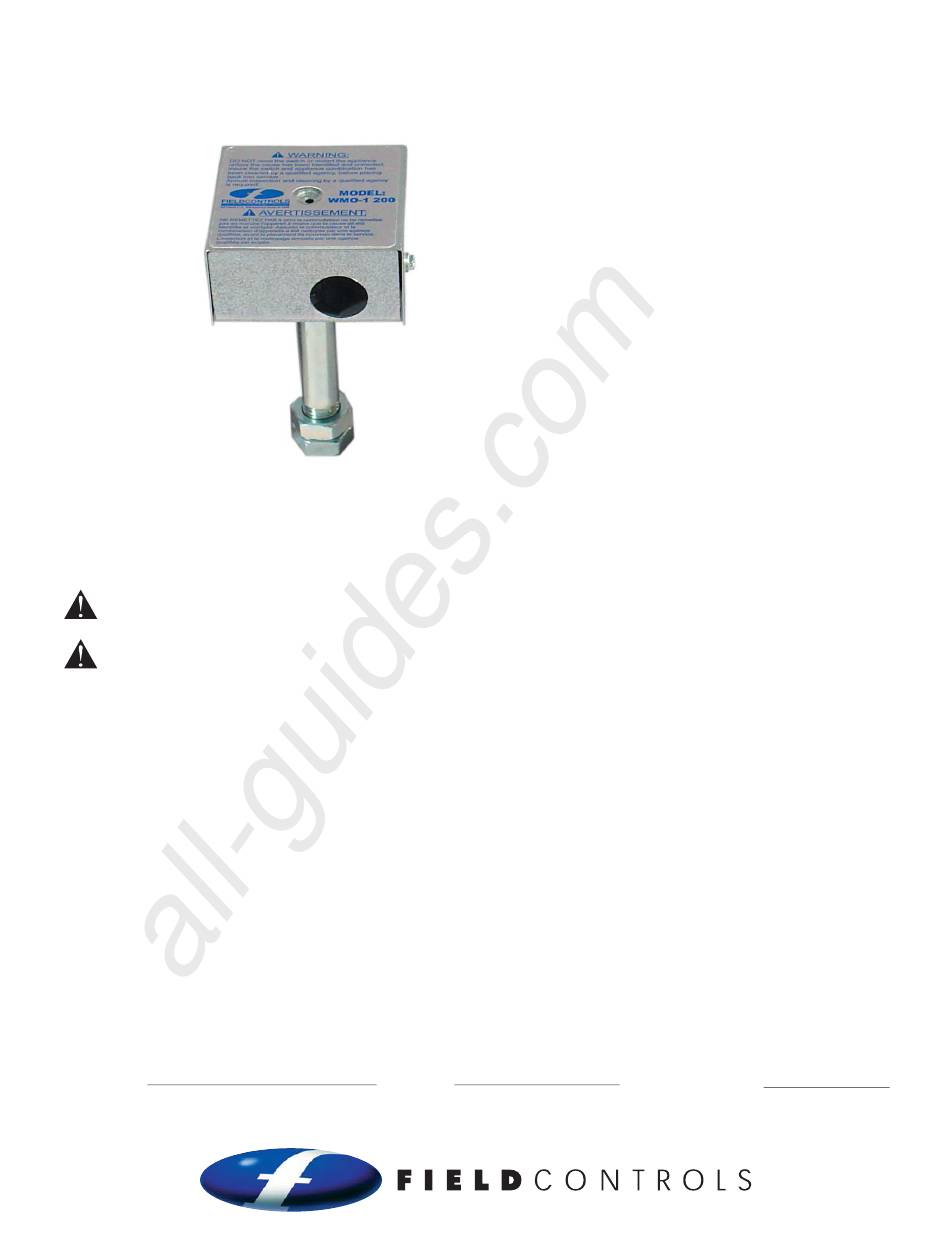

BLOCKED VENT SWITCH
The WMO-1 Blocked Vent Switch is recommended for installation with an oil fi red appliance that normally
operates with its vent system under a negative pressure. This device is intended to detect a blocked vent
system, responds to hot fl ue gases backing up through its heat transfer tube, and can be wired to shut off
the oil burner. It requires manual resetting.
WARNING: Read the installation instructions carefully and completely before proceeding with
the installation.
WARNING: Do NOT reset the device or restart the appliance unless the cause has been identifi ed
and corrected by a qualifi ed agency. Ensure the switch appliance combination has been cleaned by
a qualifi ed agency before placing back into service. Annual inspection and cleaning by a qualifi ed
agency is required.
• Wiring MUST be in accordance with the current Canadian Electric Code and any other applicable
federal, provincial and local code requirements.
• For installations in the USA, all wiring shall be in accordance with the National Electrical Code and
applicable local codes.
• For continued safe operation, the appliance-switch combination is required to be inspected and
maintained annually by a qualifi ed agency. Failure to properly maintain the appliance-switch
combination can lead to Death, Personal Injury and or Property Damage.
READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.
This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of
a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged
in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the
precautions required, and has complied with all the requirements of the authority having jurisdiction.
Installed By:
All manuals and user guides at all-guides.com
Model: WMO-1
Please retain these instructions after installation.
Phone:
www.fi eldcontrols.com
ITEMS INCLUDED IN KIT
1 - Blocked Vent Switch Assembly
2 - 5/8" x 11 UNC Hex Jam Nuts
1 - Instruction Sheet
Installation Date:
Publicité
Manuels Connexes pour Field Controls WMO-1
Sommaire des Matières pour Field Controls WMO-1
- Page 1 2 - 5/8” x 11 UNC Hex Jam Nuts 1 - Instruction Sheet The WMO-1 Blocked Vent Switch is recommended for installation with an oil fi red appliance that normally operates with its vent system under a negative pressure. This device is intended to detect a blocked vent system, responds to hot fl ue gases backing up through its heat transfer tube, and can be wired to shut off the oil burner.
- Page 2 All manuals and user guides at all-guides.com INSTALLATION MOUNTING IN THE VENT PIPE SEE THE APPLIANCE MANUFACTURER’S INSTRUCTIONS FOR THE SPECIFIC LOCATION. IF THE APPLIANCE MANUFACTURER DOES NOT SPECIFY A LOCATION, REFER TO FIGURE 1. 1. Drill or pierce a clean hole (about ⁄...
- Page 3 1. Disconnect power to the appliance. 2. Remove the two screws holding on the WMO-1 blocked vent switch assembly cover. 3. Remove the cover. 4. Remove the two screws holding the control box to the heat transfer tube assembly. The control box slides, unlocking it from the heat transfer tube assembly.
- Page 4 All manuals and user guides at all-guides.com page 4...
- Page 5 11 à fi letage UNC 1- Fiche d'instructions Il est recommandé d’installer le commutateur pour ventilation bloquée WMO-1 avec un appareil au mazout qui fonctionne normalement avec son système de ventilation sous dépression. Ce dispositif est prévu pour détecter un système de ventilation bloqué, pour répondre aux gaz de cheminée chauds se formant dans son...
- Page 6 All manuals and user guides at all-guides.com INSTALLATION MONTAGE DU TUYAU D’ÉVENT VOIR INSTRUCTIONS DU FABRICANT DE L’APPAREIL POUR CONNAITRE L’EMPLACEMENT SPÉCIFIQUE. SI LE FABRICANT DE L’APPAREIL NE SPÉCIFIE PAS D’EMPLACEMENT, CONSULTER LES FIGURES 1 ET 2. 1. Percer un trou propre (d’environ ⁄...
- Page 7 1. Débrancher toute alimentation à l’appareil. 2. Dévisser les deux vis qui maintiennent le couvercle de l’ensemble de commutateur pour ventilation bloquée WMO-1. 3. Retirer le couvercle. 4. Retirer les deux vis qui maintiennent le boîtier de commande à l’ensemble du tube de transfert thermique.
- Page 8 All manuals and user guides at all-guides.com Warranty For warranty information about this or any Field Controls product, visit: www.fi eldcontrols.com/warranty Phone: 252.522.3031 • Fax: 252.522.0214 www.fieldcontrols.com © Field Controls, LLC P/N 46520900 Rev C 04/16...
