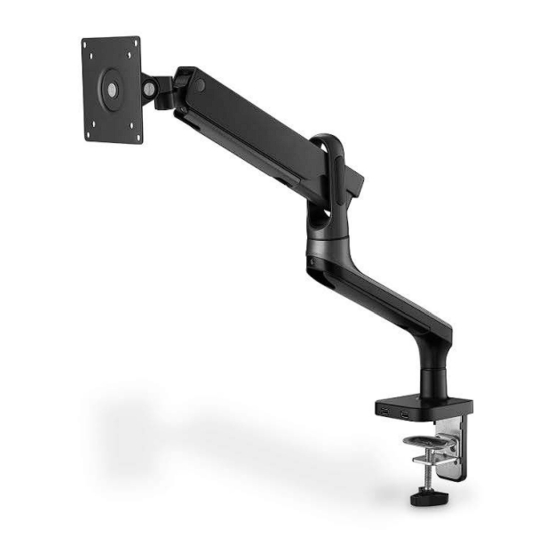

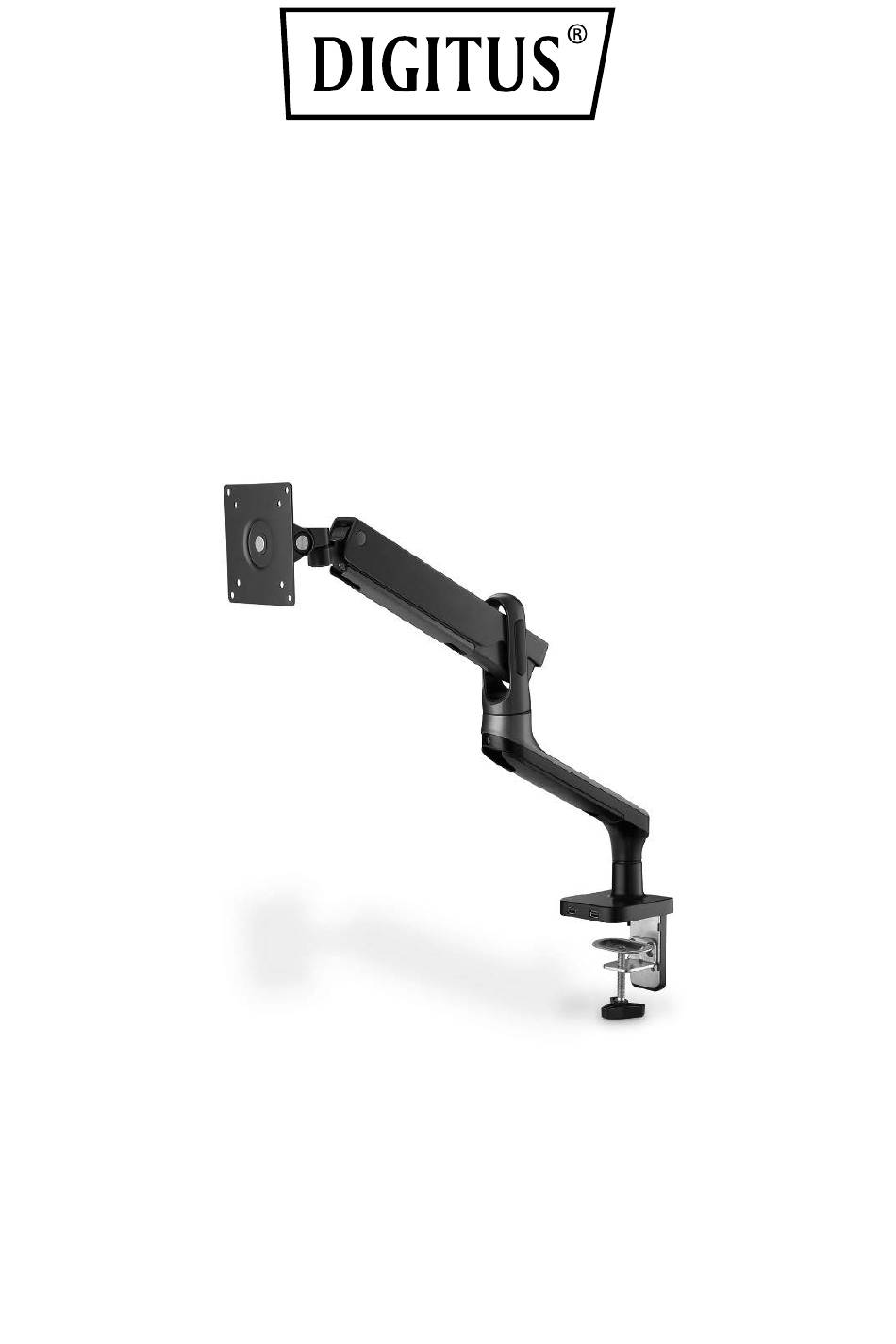

- Page 1 Design Monitor Clamp Mount with 2x USB & Gas Spring Quick Installation Guide DA-90416...
- Page 2 1. Package Content B (x1) A (x1) C (x1) D (x1) F (x1) E (x1) H (x1) G (x1) I (x1) K (x1) L (x1) J (x1) M (x3) N (x1) O (x1) M6x12 P (x1) 4 mm 6 mm M-B (x4) M-A (x4) M-C (x4)
- Page 3 2. Mounting Instructions Step 1 Note: Prior to attaching the clamp, press the USB cable into the groove as shown...
- Page 4 Desktop with Existing Through-Hole 10-55 mm Ø10-60 mm 10-80mm Ø10 mm 6 mm Ø3/8" 10-80mm 50-85 mm...
- Page 5 Step 2 ±90° Tighten the limiting screw (do not over tighten). Arm can rotate 180°. ±180° Arm can rotate without Remove or loosen the limiting screw. stopping. Step 3...
- Page 6 Step 4 Too long Too short Step 5 Unlock Lock...
- Page 7 Step 6 To properly balance the arm with monitors mounted, adjust the spring tension using the supplied Allen Key as following: First, position and firmly hold the arm horizontally as shown. Ask for assistance should require it. If the arm rises, turn the adjustment screw counter-clockwise until it stays in a horizontal position.
- Page 8 Step 7 Step 8 Note: If the display does not stop at your desired position, tighten the screws as shown. Note: If the display does not stop at your desired position, tighten the screws as shown.
- Page 9 Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. CAUTION: Use with products heavier than the rated weights indicated may result in instability causing possible injury. •...
- Page 10 Veuillez lire l'intégralité du mode d'emploi avant de commencer l'installation et le montage. Si vous avez des questions concernant les instructions ou les avertissements, veuillez contacter votre revendeur local pour obtenir de l'aide. ATTENTION : L'utilisation avec un poids supérieur aux poids nominaux indiqués peut entraîner un déséquilibre et un risque de blessure. •...
- Page 11 Przed rozpoczęciem instalacji i montażu należy przeczytać całą instrukcję obsługi. W przypadku jakichkolwiek pytań dotyczących instrukcji lub ostrzeżeń prosimy o kontakt z lokalnym dystrybutorem w celu uzyskania pomocy. UWAGA: Użytkowanie z ciężarami większymi niż podane może spowodować niestabilność, a w konsekwencji także obrażenia. •...
