Installation
1

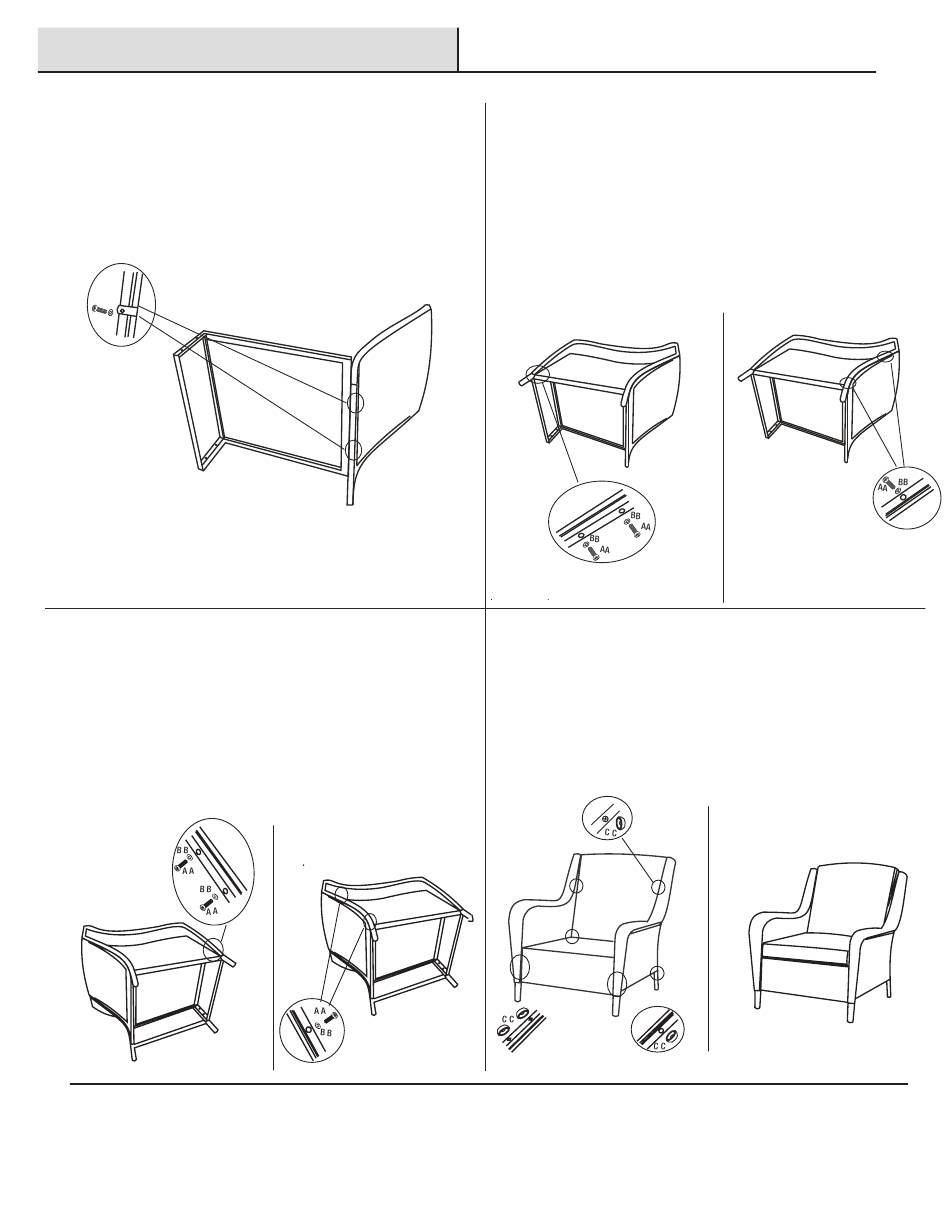

Attaching the back
□ Attach the back (B) to the seat (A) by aligning two holes
on the back (B) with the two holes on the seat (A). Insert
□
bolts(DD) with washers (BB) .
Tighten half way using the Hex wrench(EE). Do not
tighten completely. .
BB
DD
B
A
3
Attaching the right arm
□
Attach the right arm (D) to seat (A) fasten with bolts
(AA)and washers(BB).Tighten half way using the Hex
wrench (EE).Do not tighten completely.( Fig 1)
Attach the back (B) to the right arm (D) insert bolts
□
(AA)with washers (BB) and tighten half way using the
Hex wrench (EE).Do not tighten completely.( Fig 2)
( F ig 1 )
D
B
A
C
B
( F ig 2 )
D
B
A
C
2
Attaching the left arm
□ Attach the left arm (C) to seat (A) fasten with bolts (AA)
and washers (BB).Tighten half way using the Hex
wrench(EE).Do not tighten completely.( Fig 1)
□
Attach the back (B) to the left arm(C) by aligning the
hole on the back (B) with the hole on the left arm (C).
Insert bolts(AA)with washers (BB) and tighten half way
using the Hex wrench (EE).Do not tighten completely.
( Fig 2)
(Fig1)
C
A
4
Completing the assembly
□
Place the chair right side up.
□
Fully tighten all the bolts (AA) with the Hex wrench (EE)
and cover with the bolt caps (CC).( Fig 1)
□
Adjust leg levelers as required.
□
Place the seat cushion (E) and back cushion (F) on the
chair. This chair is now ready for your enjoyment.( Fig 2)
( F ig 1 )
B
D
C
A
5
Please contact 1-855-HD-HAMPTON for further assistance.
(Fig 2)
C
B
A
( F ig 2 )
F
E
