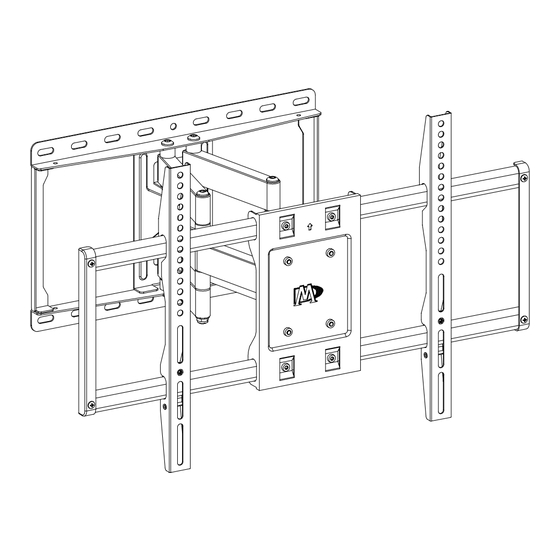

HM2296-1
Für die Installationsanweisungen auf deutsch, Siehe Seite 11~12.
Pour l'instruction en français, veuillez vous reporter à la page 13~14.
Para las instrucciones de la instalación en español, favor vea la página 15~16.
Per le Istruzioni in italiano, vedi pagina 17~18.
x3
42"~70"
If you have any questions, please contact us via customerservice@hingear.com
or call us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time).
INSTALLATION INSTRUCTION
x1
x1
Max:600x400mm/24x16"
Min:200x100mm/8x4"
1
2
TV
(B1)
Publicité
Manuels Connexes pour Mounting Dream HM2296-1
Sommaire des Matières pour Mounting Dream HM2296-1
- Page 1 HM2296-1 INSTALLATION INSTRUCTION Für die Installationsanweisungen auf deutsch, Siehe Seite 11~12. Pour l'instruction en français, veuillez vous reporter à la page 13~14. Para las instrucciones de la instalación en español, favor vea la página 15~16. Per le Istruzioni in italiano, vedi pagina 17~18.
- Page 2 ● The wall must be capable of supporting five times the weight of the TV and mount combined. ● Do not apply this product to any purpose not indicated by Mounting Dream. ● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no responsibility for any damage or injury resulted from incorrect installation, incorrect assembly or misuse.
- Page 3 Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. For parts shortage or damage, please contact us via customerservice@hingear.com. NOTE: Not all hardware included will be used. Spacers TV Brackets TV Screws...
- Page 4 1-3 Attach the TV Brackets Screw and washer Spacer(s), screw and washer Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to remove the inner circle.
- Page 5 For wood stud installation, follow STEP 2A For concrete installation, follow STEP 2B on PAGE 6 Parts and Hardware Lag Bolt M8x60mm M8 Washer Wall Plate Unit Mounting Template Contact us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@hingear.com to have these Concrete Wall Anchor additional pieces shipped directly to you.
- Page 6 Again, find another wood stud 16"(406mm) Centre line CAUTION: To avoid potential personal injury or property damage: All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
- Page 7 Solid Concrete Wall Installation Min. 8"(203mm) DANGER 2.5" 3/8" (64mm) (10mm) CAUTION: To avoid potential personal injury or property damage: All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
- Page 8 Parts and Hardware Supporting bar Extension Arm Extension Arm Allen Key M6x10mm Bolt M6x15mm Bolt M5x12mm Bolt 3-1 Extension Arms Assembly 3-2 Wall Plate Installation Integrity Test Before hanging TV, please conduct "wall plate installation integrity test" first. 100 LBS (45.5 KG)
- Page 9 3-3 Hang and Secure TV to Wall Plate 4-1 TV leveling adjustment (±3°): Loosen 4 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. Loosen Tighten...
- Page 10 4-2 Tilting angle adjustment (+5°/-15°) ： Loosen handle and tilting bolt, adjust TV to your desired position, then tighten handle and tilting bolt. 180° Loosen +5° Tighten -15° +5° -15° Tighten Handle Loosen Allen key storage: For easy adjustment, you might put the Allen key on the wall plate as illustration.
- Page 11 681mm MAX:600mm MIN:200mm 267mm 430mm 430mm +5° MAX:400mm MIN:100mm -15° 374mm 64mm 435mm +45°/-45°...
- Page 12 ● Verwenden Sie dieses Produkt nicht für einen anderen Zweck als speziell von Mounting Dream angegeben. ● Unsachgemäße Montage dieses Produkts kann zu Verletzungen und zu den Beschädigungen an Ihrem Gerät führen. Mounting Dream haftet nicht für Schäden oder Verletzungen, die durch unsachgemäße Montage, unsachgemäßen Zusammenbau oder unsachgemäße Verwendung verursacht wurden.
- Page 13 Installationsanweisungen Warnung: Dieses Produkt enthält kleine Teile, die beim Verschlucken zur Erstickungsgefahr führen können. Bevor Sie mit der Installation beginnen, überprüfen Sie bitte, ob alle Zubehörteile und Ersatzteile vollständig und unbeschädigt sind. Falls Teile fehlen oder beschädig sind, wenden Sie sich bitte an den Kundendienst per E-Mail: customerservice@hingear.com.
- Page 14 ● N'utilisez pas ce produit pour des autres objectifs non désignés par Mounting Dream. ● L'installation incorrecte causera le dommage matériel ou la blessure corporelle. Mounting Dream n'assumera aucune responsabilité pour le dommage et la blessure causés par...
- Page 15 Instruction d'installation AVERTISSEMENT : Ce produit contient des petites pièces, en cas d'ingestion, des risques de suffocation y arrivera. Avant l'installation, veuillez vérifier que tous les accessoires et toutes les pièces sont complets et non défectueux. S'il y a des pièces manquantes ou endommagées, contactez S.V.P. le service client par email : customerservice@hingear.com.
- Page 16 ● Favor NO utilizar el producto de Mounting Dream para otros usos no asignados. ● La instalación incorrecta puede producir daños al producto o lesiones al usuario. Cualquier pérdida o daño debido por la mala instalación o uso indebido, Mounting Dream no asume ninguna responsabilidad.
- Page 17 Instrucciones paso a paso de su instalación Advertencia: Este producto contiene piezas pequeñas, si por error se ingiere, puede provocar peligro de asfixia. Antes de comenzar la instalación, favor compruebe que todos los accesorios y piezas de repuesto estén completas y sin daño alguno.
- Page 18 ● Non applicare questo prodotto ad altri scopi non indicati da Mounting Dream. ● L'installazione errata potrebbe causare danni al prodotto o lesioni personali. Mounting Dream non si assume alcuna responsabilità per danni o lesioni causate da installazione...
- Page 19 Istruzioni di installazione Avvertenza: Questo prodotto contiene piccoli articoli che potrebbe causare il pericolo di soffocamento se ingoiati. Prima di iniziare l'installazione, controlla se tutti gli accessori e parti siano inclusi e non danneggiati. In caso di perdita o danni, contatta il Servizio Clienti via mail: customerservice@hingear.com. Nota: Non verranno utilizzati tutte le parti incluse.
