GIVI BF69 Instructions De Montage

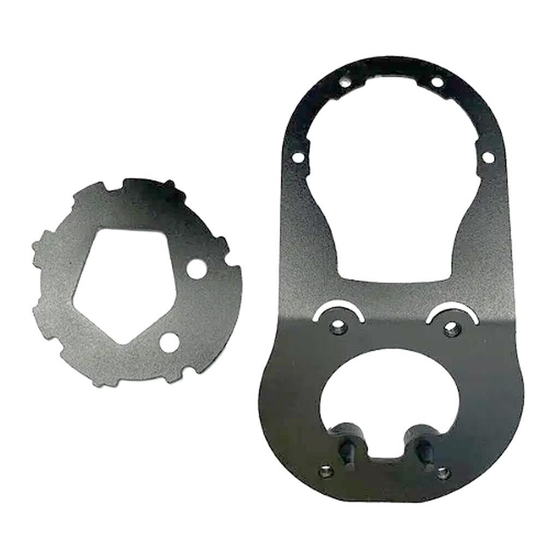

Flangia Specifica per borse Tanklock - Specific Carrier for Tanklock bags
Brides spécifiques pour Tanklock bagagerie souple - Tankringen für tanklock Weichtaschen
Aro específico para bolsa Tanklock - Anel específico para bolsa Tanklock
N° Descrizione-Description
Supporto inferiore - Lower support - Support inférieur
1
Soporte inferior - Untere Halterung - Suporte inferior
Piastra superiore - Upper plate
2
Plaque supérieure - Obere platte
Pletina superior - Placa superior
3
4
5
Distanziale - Spacer
6
Entretoise - Distanzstueck
Distanciador – Espaçado
Componenti Originali - Original Parts
7
Parties Originales - Original Bauteile
Componentes Originales - Componentes Originais
Particolari inclusi nella borsa tanklock
Components included in the tanklock bag
Pièces inclues dans la tanklock bag
8
Teile inkludiert in der tancklock tasche
Componente incluído na bolsa tanklock
Despieces Incluidos bolsa tanklock
©Copyright 11/03/2022LF-Rev00
BF69 - BF69K
Vite - Screw
Vis - Schraube
Tornillo - Parafuso
Vite - Screw
Vis - Schraube
Tornillo - Parafuso
Vite - Screw
Vis - Schraube
Tornillo - Parafuso
ISTRUZIONI DI MONTAGGIO - MOUNTING INSTRUCTIONS
INSTRUCTIONS DE MONTAGE - BAUANLEITUNG - INSTRUCCIONES
Caratteristiche-Features
-
-
TBEI M5x20
TBEI M5x40
TBEIFN M6x10
Ø8x10 Foro 6,4mm
-
-
DE MONTAJE
Codice-Code Quantità-Quantity
1
GL5102V
1
GL5105V
1
520TBEI
3
540TBEI
4
610TBEIFN
4
C8L10F6,4T
-
-
-
-
1/4
