INSTALLATION AND
ADJUSTMENT MANUAL
M000338
07-501-x Casing TM Samsung OM55N
DE Handbuch für Installation und Anpassung
IT Manuale per l'installazione e la regolazione
ES Manual de instalación y ajuste
FI Asennus- ja säätöohje
FR Manuel d'installation et de réglage
NL Handboek voor installatie en instellingen
PL
RUS
ARB
SE Monterings- och justeringsmanual
GR
Publicité
Manuels Connexes pour SMS 07-501 Serie
Sommaire des Matières pour SMS 07-501 Serie
- Page 1 INSTALLATION AND ADJUSTMENT MANUAL M000338 07-501-x Casing TM Samsung OM55N DE Handbuch für Installation und Anpassung IT Manuale per l'installazione e la regolazione ES Manual de instalación y ajuste FI Asennus- ja säätöohje FR Manuel d’installation et de réglage NL Handboek voor installatie en instellingen SE Monterings- och justeringsmanual...
- Page 2 Η σωστή εγκατάσταση χρειάζεται ιδιαίτερη προσοχή και δεν αποτελεί ευθύνη της SMS Evoko Group montering kan resultera i person och sakskador. SMS friskriver sig från allt ansvar av vad slag det må vara AB. Λανθασμένη εγκατάσταση μπορεί να προκαλέσει ανθρώπινο τραυματισμό ή υλικές ζημιές.
- Page 3 Nei casi in cui si faccia riferimento alla garanzia, si deve inviare a SMS il prodotto insieme alla purchase receipt are to be returned to SMS. The name of the supplier and the date of purchase must ricevuta d’acquisto in originale. Sulla ricevuta devono essere chiaramente leggibili nome del be clearly legible on the receipt.

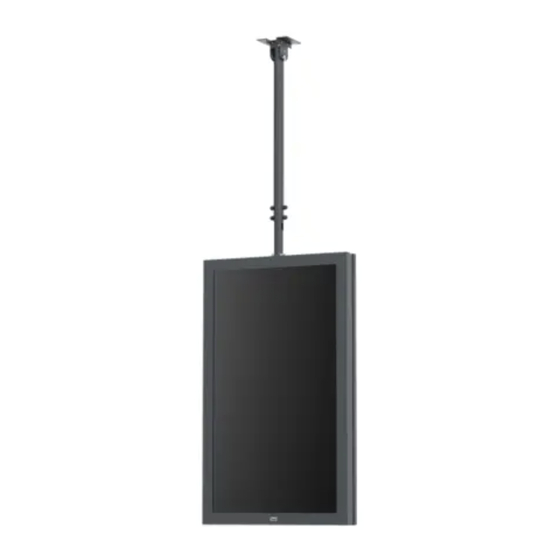

- Page 4 CASING TM SAMSUNG OM55N ASSEMBLY INSTRUCTIONS YOU WILL NEED Allen key No. 4, 5 No. 13 Torx Key, T15 NOT INCLUDED Support cable Display NUMBER OF PERSONS REQUIRED...
- Page 5 CASING TM SAMSUNG OM55N LIST OF PARTS (1x) (1x) (1x) Q2 (4x) Q1 (10x) DIN 7981 ISO 7049 ISO 7380 [M8x20] [M3,5x13] Q3 (8x) (4x) (1x) ISO 7380 [M6x8]...
- Page 6 CASING TM SAMSUNG OM55N LIST OF PARTS (continued) OPTIONAL ITEMS...
- Page 7 CASING TM SAMSUNG OM55N Q1 (4x) Q1 (4x) Remove Q1 (8x)
- Page 8 CASING TM SAMSUNG OM55N Procedure for Mounting Casing using Cables (Cables not included) Support Cut 4x pieces cable Ensure strength P1 (4x) of cable before mounting Pass one end of each cable through each corner plate P1 (4x)
- Page 9 CASING TM SAMSUNG OM55N Casing can be hung floor-ceiling/ wall-ceiling or between wall-wall Unit between floor-ceiling Unit between wall-wall H-min. H-min. H-min. Follow product dimensions (page16) for dimensions...
- Page 10 CASING TM SAMSUNG OM55N Ensure strength of ceiling/ wall-anchors Min 70 mm Min 70 mm...
- Page 11 CASING TM SAMSUNG OM55N For Procedure for Mounting Casing using Ceiling Pipe (Ceiling Pipe not included) Refer manual - M000329 02-118-1 Func Ceiling for Casing TM Black 02-118-4 Func Ceiling for Casing TM White Q2 (2x) (2x)
- Page 12 CASING TM SAMSUNG OM55N...
- Page 13 CASING TM SAMSUNG OM55N Tighten Q2 (2x) (2x)
- Page 14 CASING TM SAMSUNG OM55N P5* (L = 540mm) 4x P5** (L = 780mm) 4x (4x) P5** (4x)
- Page 15 CASING TM SAMSUNG OM55N Q1 (4x) Q1 (4x) (8x)
- Page 16 CASING TM SAMSUNG OM55N PRODUCT DIMENSIONS 15,75 SECTION A-A 2,15 31,24 26,67 SECTION B-B All dimensions in mm. Dimensions in brackets [ ] are in inches SMS Evoko Group AB Hästholmsvägen 32, 5th floor, SE-131 30 Nacka, Sweden www.smartmediasolutions.com...
