Step 4
Requires J, K, L, 3, 5, 7

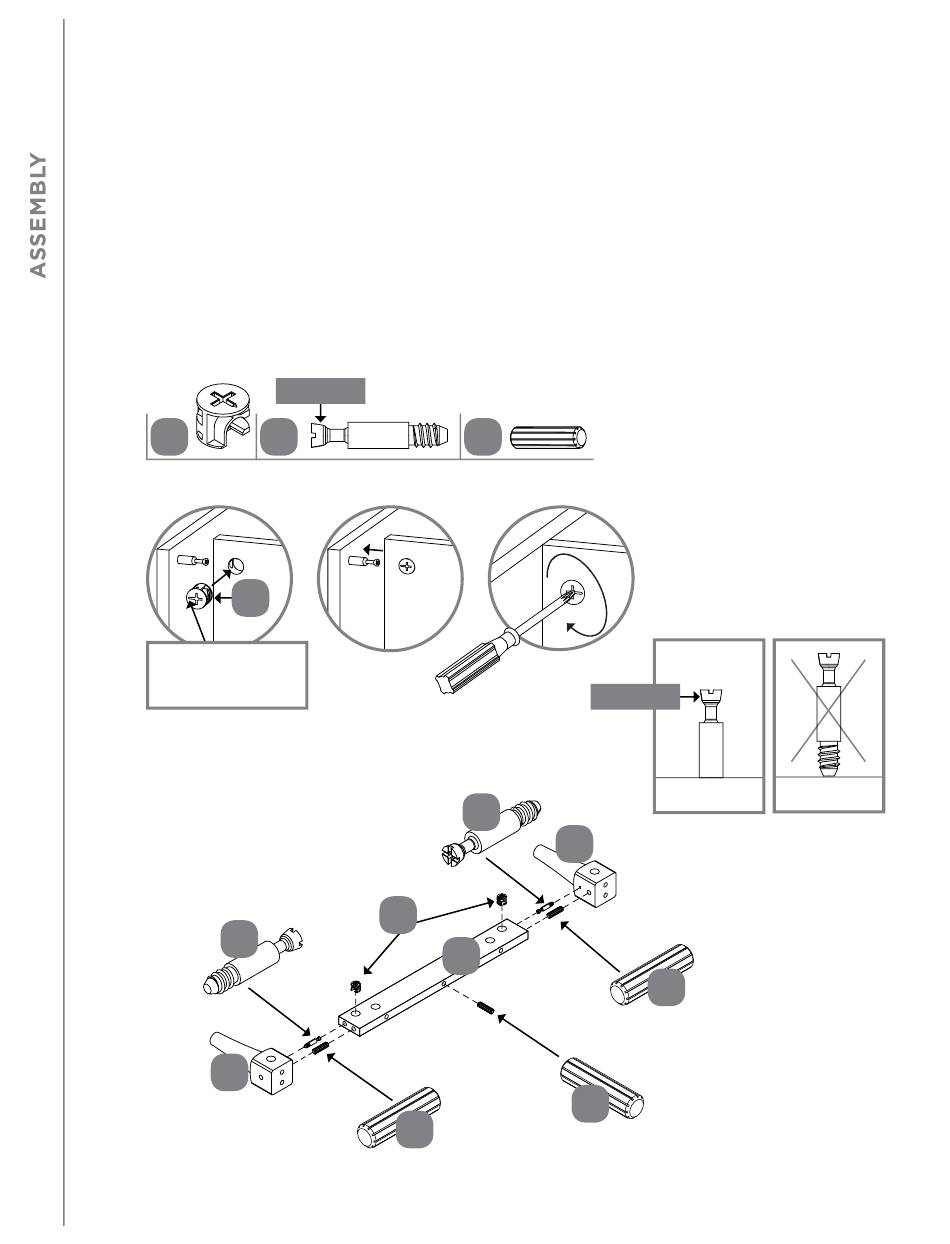

Turn two ANGLED HEAD CAM SCREWS (5) into the FEET (J and K).
Insert two LONG WOOD DOWELS (7) into the FEET (J and K) and one into the long
edge of the BOTTOM BRACE (L).
Insert two LARGE HIDDEN CAMS (3) into the holes in the BOTTOM BRACE (L) as shown.
Fasten the FEET (J and K) to the BOTTOM BRACE (L). Tighten two LARGE HIDDEN CAMS.
Repeat this step for the other FEET (J and K) and BOTTOM BRACE (L).
3
1
3
The arrow must
point toward the
edge of the board.
5
K
