Mini Button Photocontrol
Model K4621
Installation manual
SAFETY SECTION
Warning
Risk of Fire or Electric Shock
• Installation and/or wiring must be in accordance with all national and local code
requirements.
• Disconnect power at the circuit breakers or disconnect switch(es) before
beginning installation or service.
• Do NOT use the OFF state of the photocontrol for equipment servicing.
DESCRIPTION
This mini button photocontrol is for use with passage lighting,
doorway lighting, lamp post lighting, and enclosure mounts
to allow automatic powering of the load by light level.
INSTALLATION INSTRUCTIONS
Note: Use an approved FS box or lighting fixture with
a 7/16" or 11mm diameter hole for mounting the
photocontrol.
Gasket
Joint
Junta

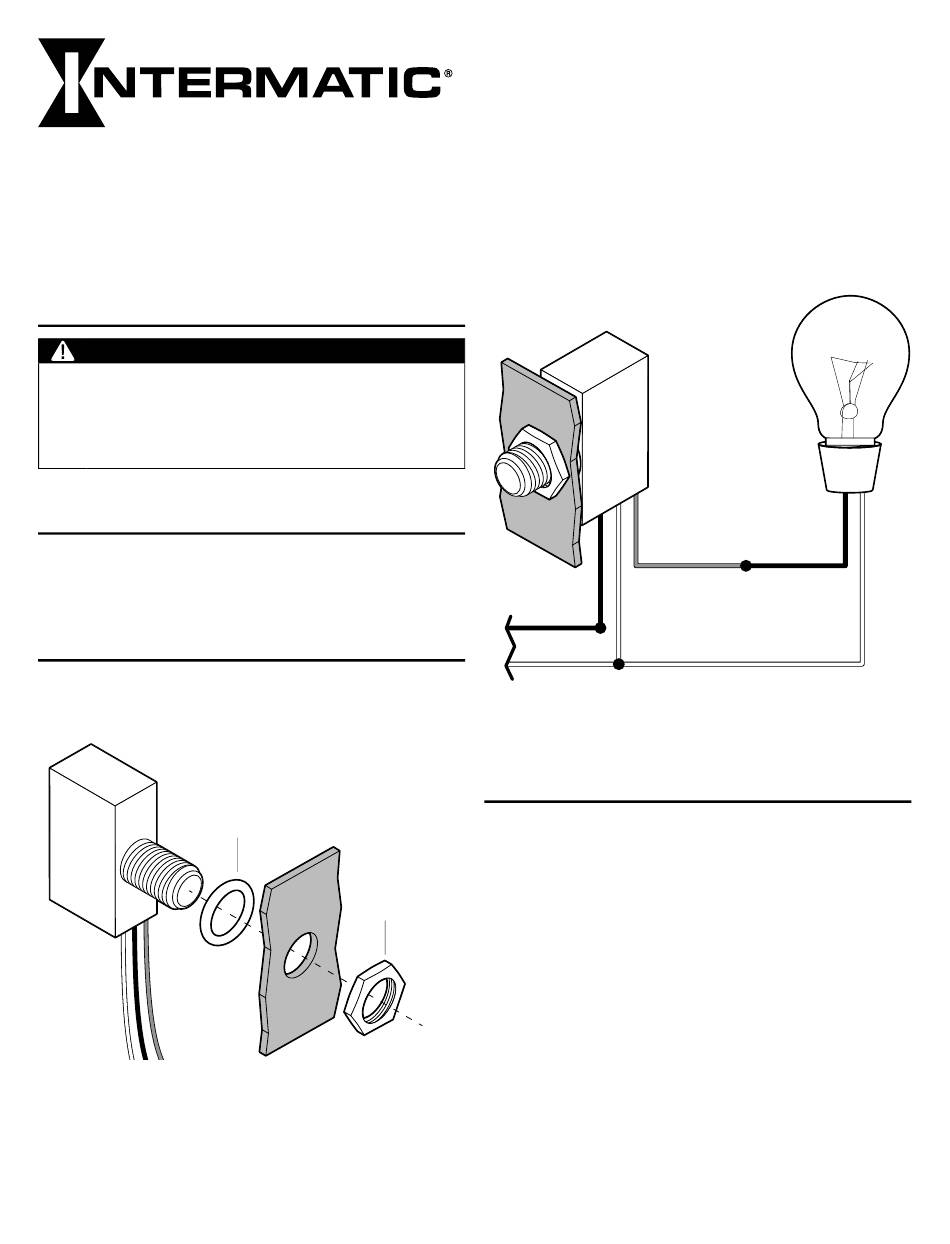

FIG. 1. Photocontrol mounting
Mini Button Photocontrol
Model K4621
All manuals and user guides at all-guides.com
1. Disconnect the power before beginning installation.
2. Mount the photocontrol using the included gasket and
3. Turn the photocontrol lens away from artificial light
4. Wire the photocontrol. Refer to FIG. 2.
5. Reconnect the power.
6. Test the unit. Completely cover the lens of the
