Coby DVD968 Guide De Démarrage Rapide

Package List
• DVD968 Main Unit
• Remote Control
• "AA" batteries (x 2)
Step 1: Connecting the Speakers
1) If necessary, strip 3/8" (10 mm) of insulation from the ends of the speaker wire.
2) While pressing the lever, insert the wire into the hole, then release the lever.
Make sure that the terminals are correctly connected to the bare wires and
not the insulation.
3) The speaker cable and terminal for each speaker is color-coded for your conve-
nience. The following guide describes which speaker goes to which terminal:
Terminal
SW
CEN
SR
SL
FR
FL
Disconnect the power cord from the wall outlet before making any connections. Always match
colored positive (+) terminals together; and match black negative (-) terminals together. If
switched, the sound will be out of phase and will not be produced correctly. Do not connect more
than one wire to each speaker terminal; do not connect one speaker to several terminals.

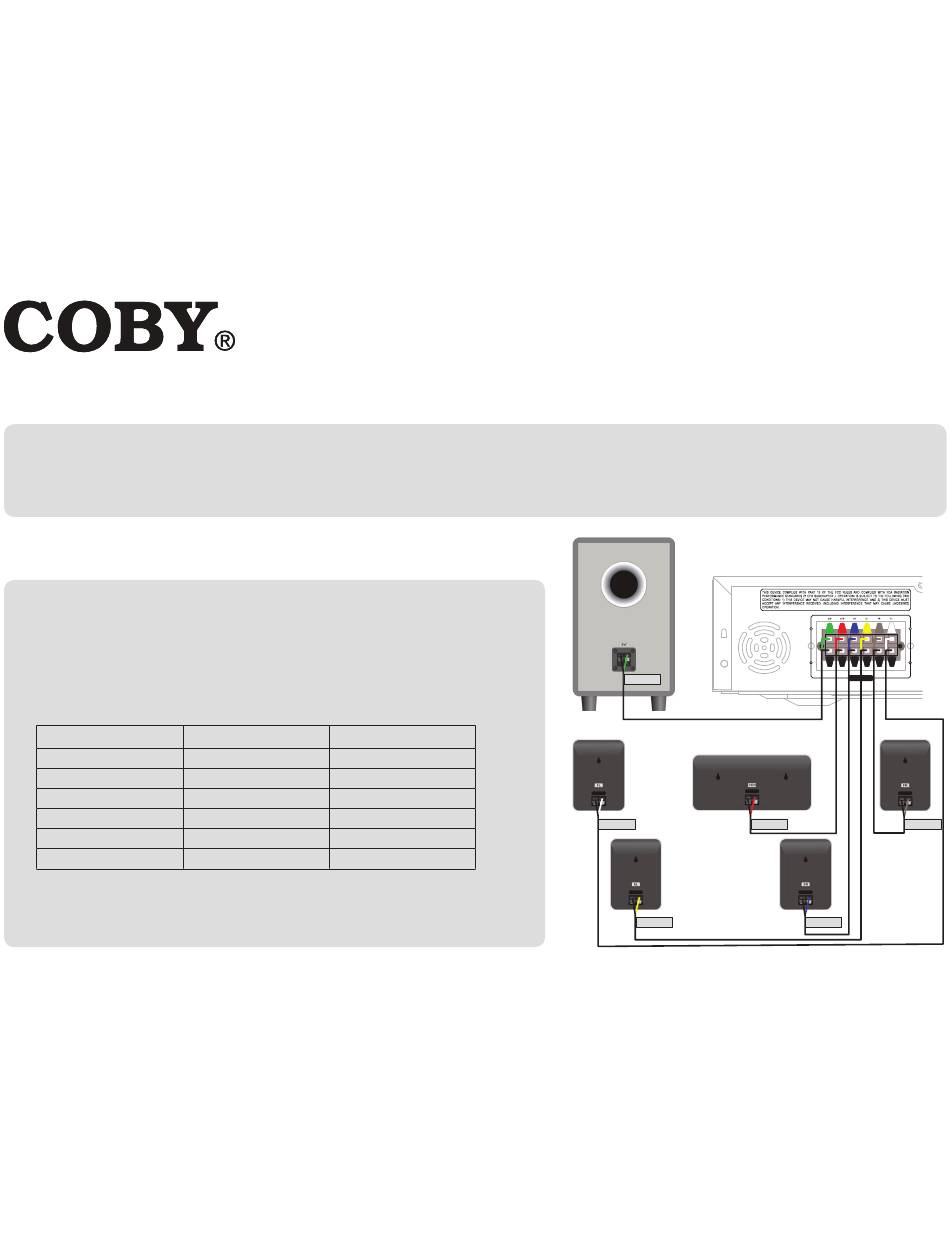

• Front Speakers (x 2)
• Center Speaker (x 1)
• Surround Speakers (x 2)
Speaker Color
Subwoofer Green
Center Red
Surround Right Blue
Surround Left Yellow
Forward Right Gray
Forward Left White
Quick Start Guide
DVD968 | 5.1-Channel DVD Home Theater System
• Subwoofer (x 1)
• Speaker Wire (x 5)
• AV Cable
FL
• AM Antenna (Loop)
• FM Antenna (Wire)
SW
CEN
SL
SPEAKER OUT
FR
SR
